7.
T1
Transformer
Remo
v
al
Refer to
Figure
7-24
.
1.
Complete
\1.
Preliminary
Steps",
\7.
J1
RF
Output
Connector
Remov
al",
and
\5. Rear
Panel
Remov
al" b
efore
con
tin
uing.
2.
Remo
v
e
the
six-wire
pin-lo
c
king
tab.
3.
Remo
v
e
the
cen
ter
screw,
plastic w
asher, t
wo
insulators, and
plate.
4.
Remov
e the
toroidal transformer.

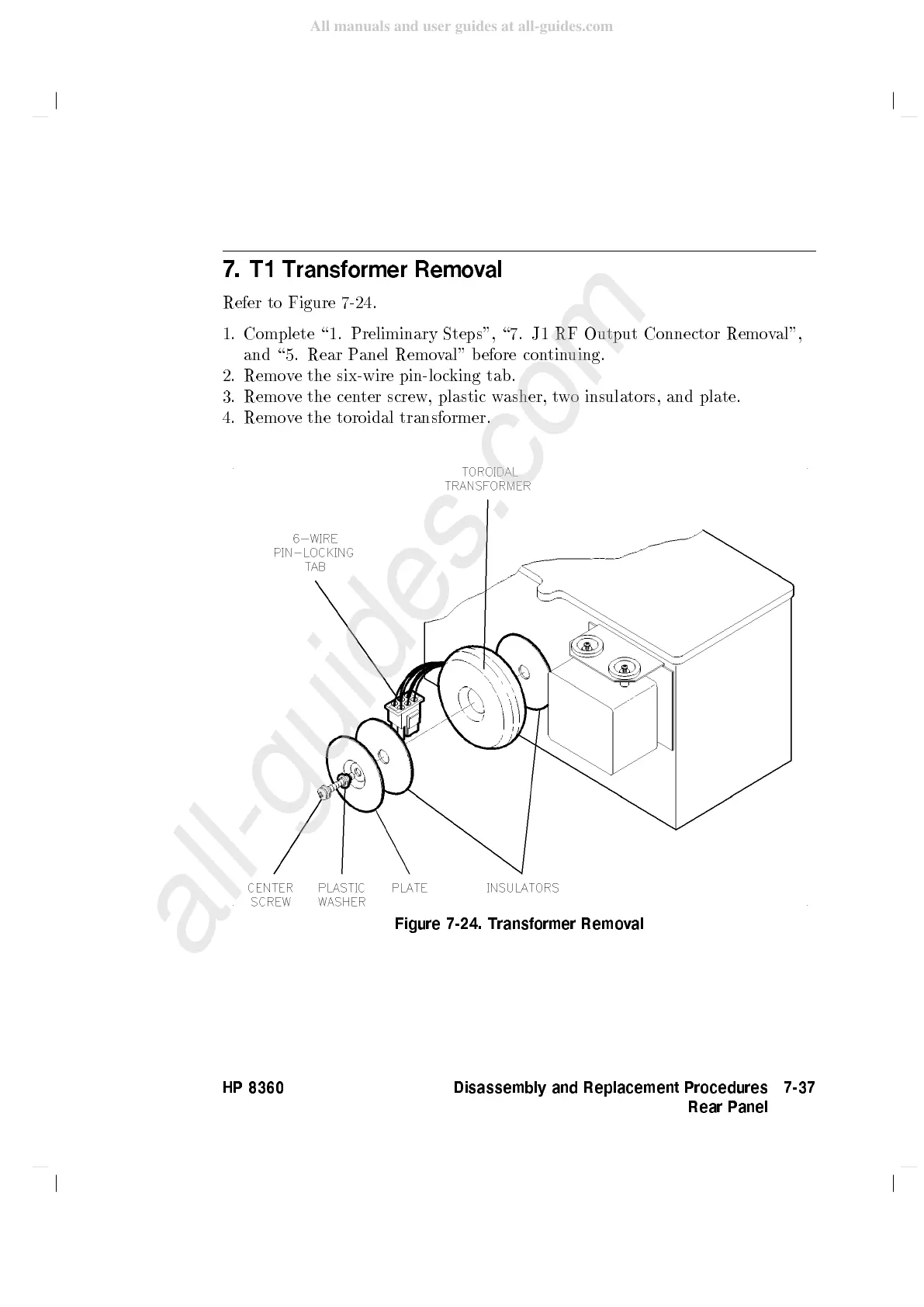

Figure 7-24. Transformer Remo
v
al
HP 8360 Disassembly and Replacement Procedures
Rear Panel
7-37
