Refer to
Figure
7-27
.
5.
Unsolder
the
white/bro
wn/grey
wire
from
the
fuse.
6.
Unsolder
the
white/grey wire
from the
line lter.
7. Unscrew
the
green/white
ground
wire
from
the
bac
k
panel.

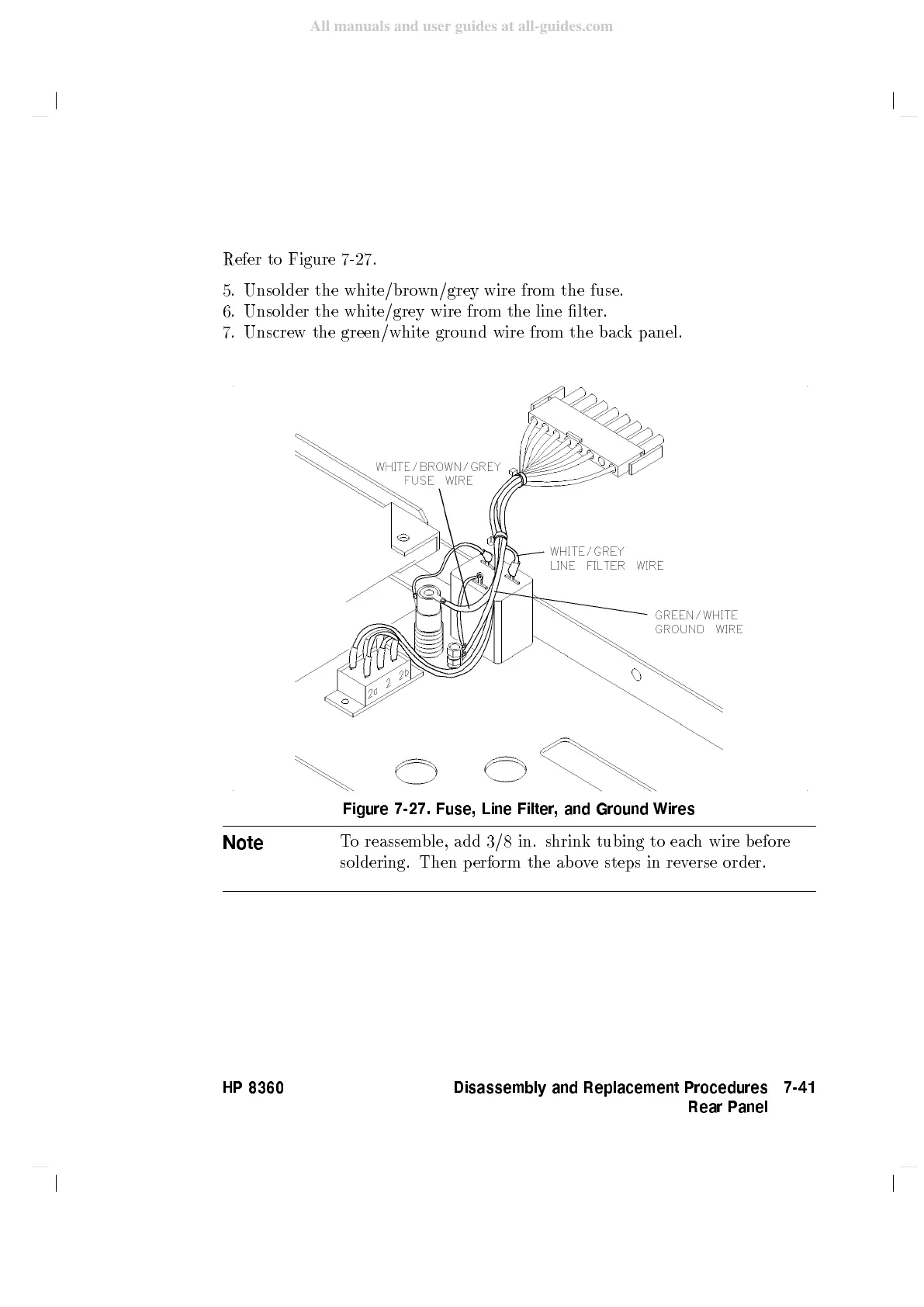

Figure
7-27.
Fuse,
Line
Filter,
and
Ground
Wires
Note
To
reassem
ble,
add
3/8
in.
shrink
tubing
to
eac
h
wire
b
efore
soldering.
Then p
erform the
ab o
ve
steps in
reverse
order.
HP 8360 Disassembly and Replacement Procedures
Rear Panel
7-41
