11.
FL1
Line
Filter
Remo
v
al
Refer to
Figure
7-29
.
1.
Complete
\1.
Preliminary
Steps",
\7.
J1
RF
Output
Connector
Remov
al",
and
\5. Rear
Panel
Remov
al" b
efore
con
tin
uing.
2.
Unsolder
the
three
wires
attac
hed
to
the
line
lter.
3.
Remo
v
e
the
t
w
o
screws on
the rear
panel.
4.
Slide out
the line
lter from
the
rear
panel.

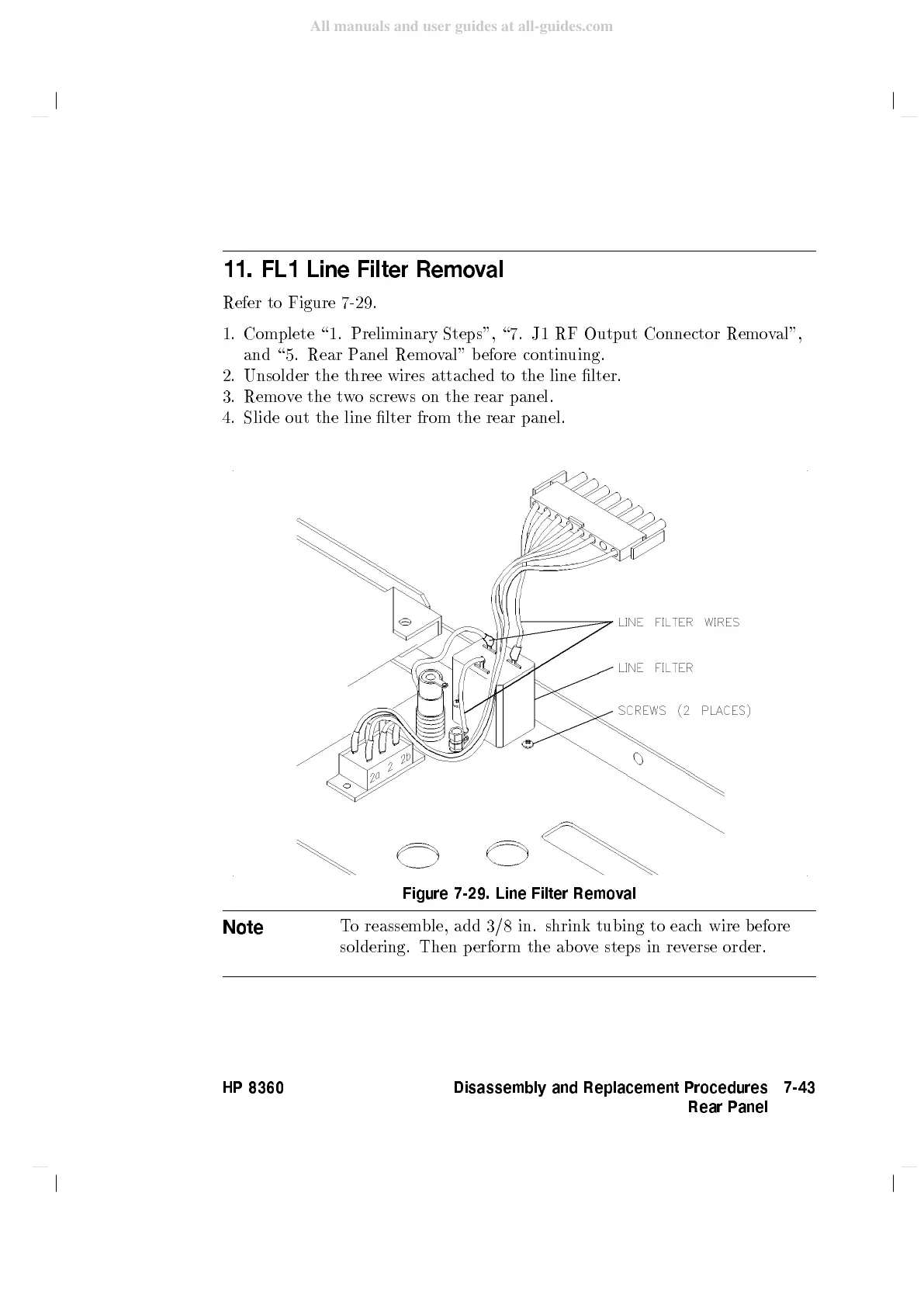

Figure 7-29. Line Filter Remo
v
al
Note
T
o reassemble, add 3/8 in. shrink tubing to eac
h wire before
soldering. Then p erform the ab o
ve steps in rev
erse order.
HP 8360 Disassembly and Replacement Procedures
Rear Panel
7-43
