Agilent Technologies 83620A - Page 498

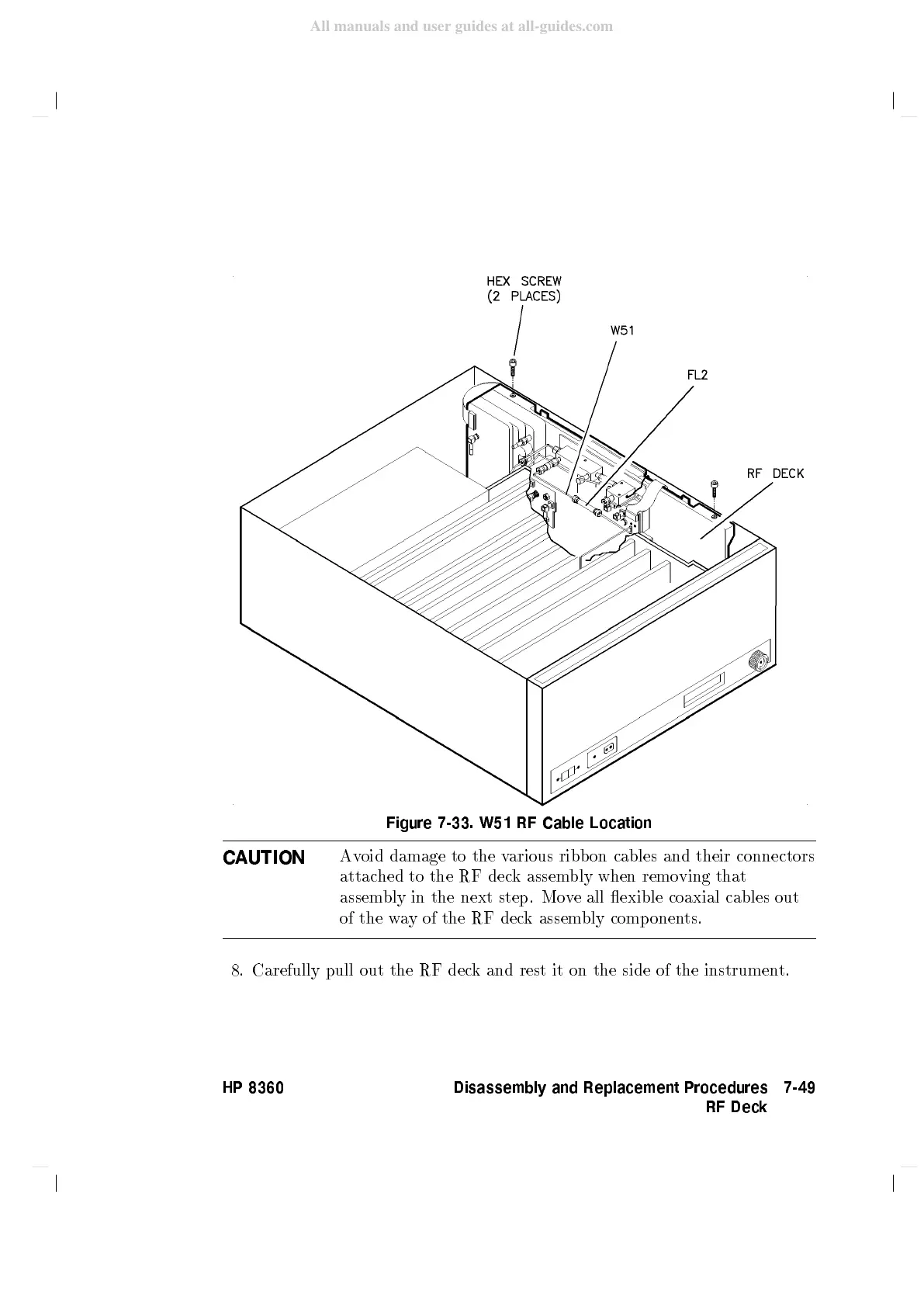

Figure
7-33.
W51
RF
Cable
Location
CA
UTION
Avoid
damage
to
the
v
arious
ribb
on
cables
and
their
connectors
attached
to
the
RF
dec
k
assem
bly
when
remo
ving
that
assembly in the next step. Mo
ve all exible coaxial cables out
of the w
ayof
the RF dec
kassem
bly componen
ts.
8. Carefully pull out the RF dec
k and rest it on the side of the instrumen
t.
HP 8360 Disassembly and Replacement Procedures
RF Deck
7-49
