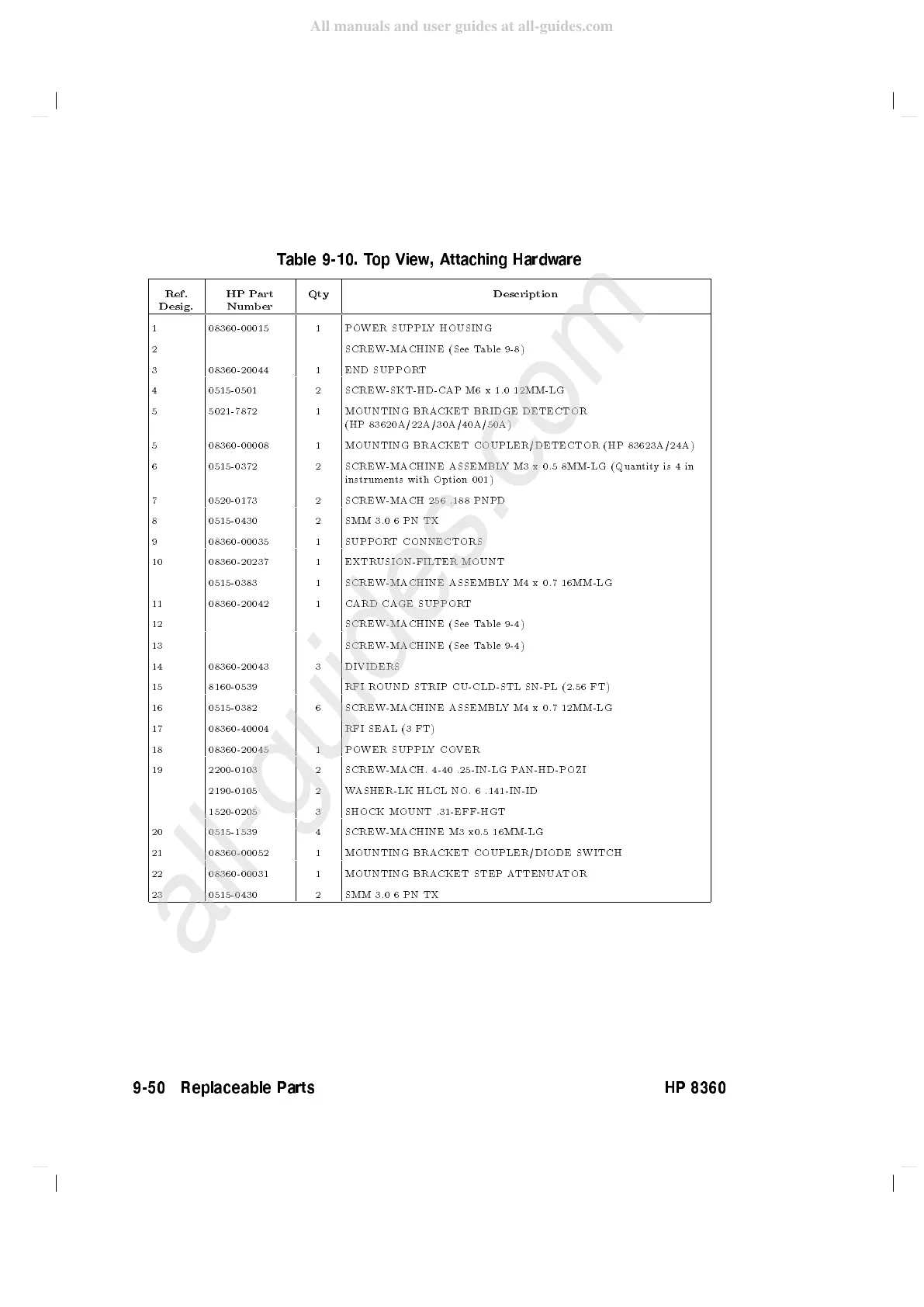

Table
9-10.
T
op
View,
A
ttaching
Hardw
are
Ref.
Desig.
HP
P
art
Num
b
er
Qt
y
Description
1 08360-00015 1 PO
WER
SUPPL
Y
HOUSING
2 SCREW-MACHINE
(See T
able
9-8
)
3 08360-20044 1 END
SUPPOR
T
4 0515-0501 2 SCREW-SKT-HD-CAP
M6 x
1.0 12MM-LG
5 5021-7872 1 MOUNTING
BRA
CKET
BRIDGE
DETECTOR
(HP
83620A/22A/30A/40A/50A)
5 08360-00008 1 MOUNTING
BRA
CKET
COUPLER/DETECTOR
(HP
83623A/24A)
6 0515-0372 2 SCREW-MA
CHINE
ASSEMBL
Y
M3
x
0.5
8MM-LG
(Quan
tit
y
is
4
in
instrumen
ts
with
Option
001)
7 0520-0173 2 SCREW-MA
CH 256
.188 PNPD
8 0515-0430 2 SMM 3.0
6PN
TX
9 08360-00035 1 SUPPOR
T CONNECTORS
10 08360-20237 1 EXTRUSION-FIL
TER MOUNT
0515-0383 1 SCREW-MA
CHINE ASSEMBL
Y
M4
x
0.7
16MM-LG
11 08360-20042 1 CARD CA
GE
SUPPOR
T
12 SCREW-MA
CHINE
(See
T
able
9-4
)
13 SCREW-MA
CHINE
(See
T
able
9-4
)
14 08360-20043 3 DIVIDERS
15 8160-0539 RFI
R
OUND
STRIP
CU-CLD-STL
SN-PL
(2.56
FT)
16 0515-0382 6 SCREW-MA
CHINE
ASSEMBLY
M4 x
0.7
12MM-LG
17 08360-40004 RFI
SEAL (3
FT)
18 08360-20045 1 PO
WER
SUPPL
Y
CO
VER
19 2200-0103 2 SCREW-MA
CH.
4-40
.25-IN-LG
P
AN-HD-POZI
2190-0105 2 W
ASHER-LK
HLCL
NO.
6
.141-IN-ID
1520-0205 3 SHOCK
MOUNT
.31-EFF-HGT
20 0515-1539 4 SCREW-MA
CHINE
M3
x0.5
16MM-LG
21 08360-00052 1 MOUNTING
BRACKET
COUPLER/DIODE SWITCH
22 08360-00031 1 MOUNTING
BRA
CKET
STEP
ATTENUA
TOR
23 0515-0430 2 SMM 3.0 6 PN TX
9-50 Replaceable Parts HP 8360
