Trigger:
Trigger Mode
Edge
Trigger
Source
Channel
2
Trigger
Level 1V
Trigger
Slope
Positive
Display:
Display
Mode
Repetitive
Averaging
On
Number
of
averages
64
15.
On
the
pulse
generator,
set:
Pulse
width:
500
ns
Frequency:
200
kHz
(5

s)
Offset:
0V
Amplitude:
5V
16.
On
the
oscilloscop
e,
note
the
maxim
um
v
oltage
from
the
baseline
(see
Figure 2-22).
Video
feedthrough
(Vp)
=
Vp

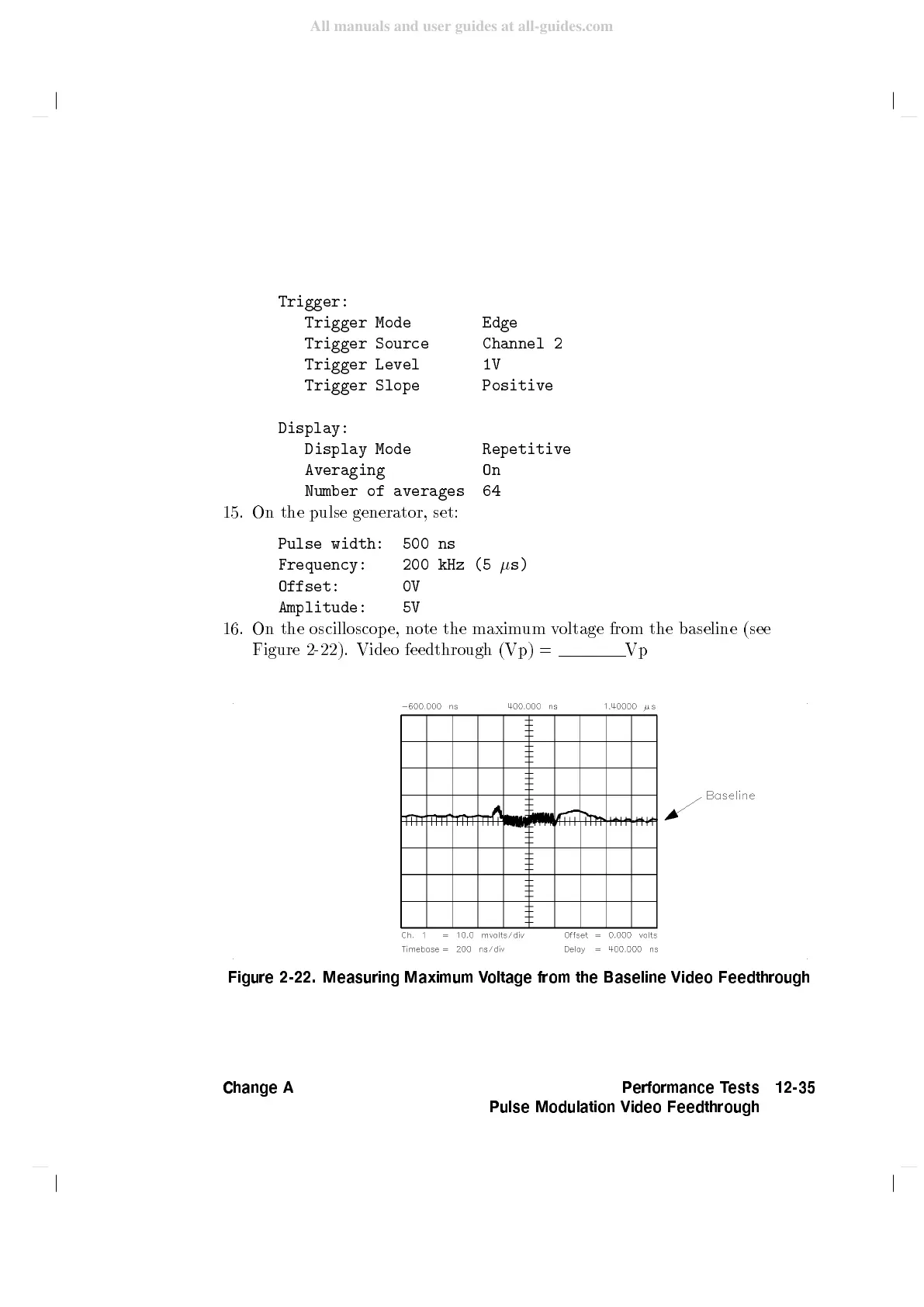

Figure 2-22. Measuring Maximum V
oltage from the Baseline Video Feedthrough
Change A Performance Tests
Pulse Modulation Video Feedthrough
12-35
