1b-14
Operation Reference
Function
• DUMMY CALL inserts a message with all 5s in all non-call phases. This is required by the
FLEX-TD standard (RCR STD-34A) for sensitivity testing.
ON: Default setting. Activates the dummy call function for equalizing the FSK
deviation. An address for the non-call phases must be set.
OFF: Does not activate the dummy call function. Idle frames are set in the non-call
phases.

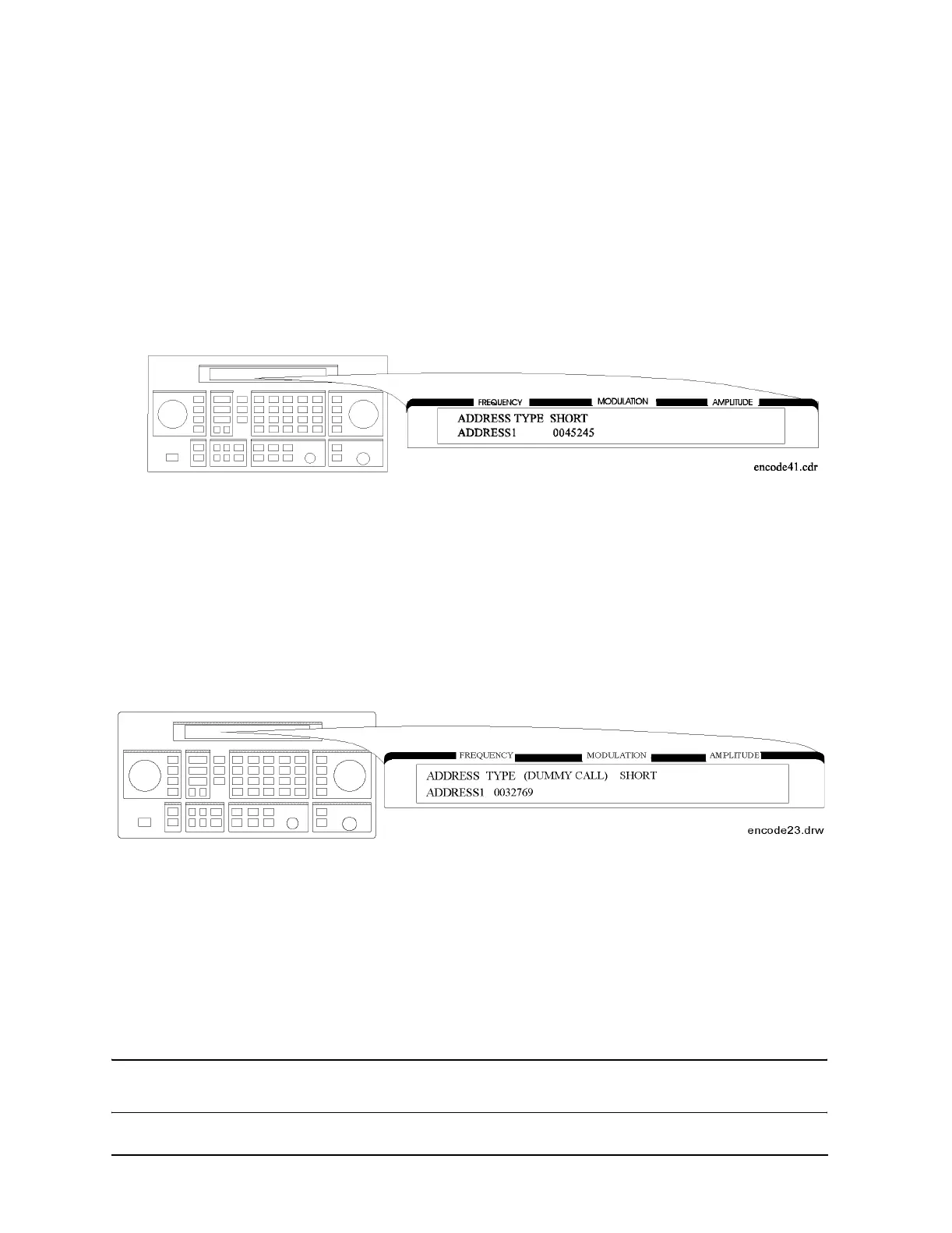

The address menu will display the following information:
• ADDRESS TYPE selects the address length.
SHORT: Short address
LONG: Long address
• ADDRESS1 is the 7-digit short address or the primary address of the long address.
• ADDRESS2 is the 7-digit secondary address of the long address. (This is displayed only when
ADDRESS TYPE is set to LONG.)
If DUMMY CALL is ON, the following address menu is displayed.
• ADDRESS TYPE (DUMMY CALL) displays the address type used in the non-call
phases (automatically set).
SHORT: Short address
LONG: Long address
• ADDRESS1 is the 7-digit short address or the primary address of the long address.
• ADDRESS2 is the 7-digit secondary address of the long address. (This is displayed only when
ADDRESS TYPE (DUMMY CALL) is LONG.)
NOTE To equalize the FSK deviation, the addresses for DUMMY CALL should contain an equal
number of “1” and “0”.
To Next Page
