Making Measurements
Using Bandwidth Limits to Test a Bandpass Filter

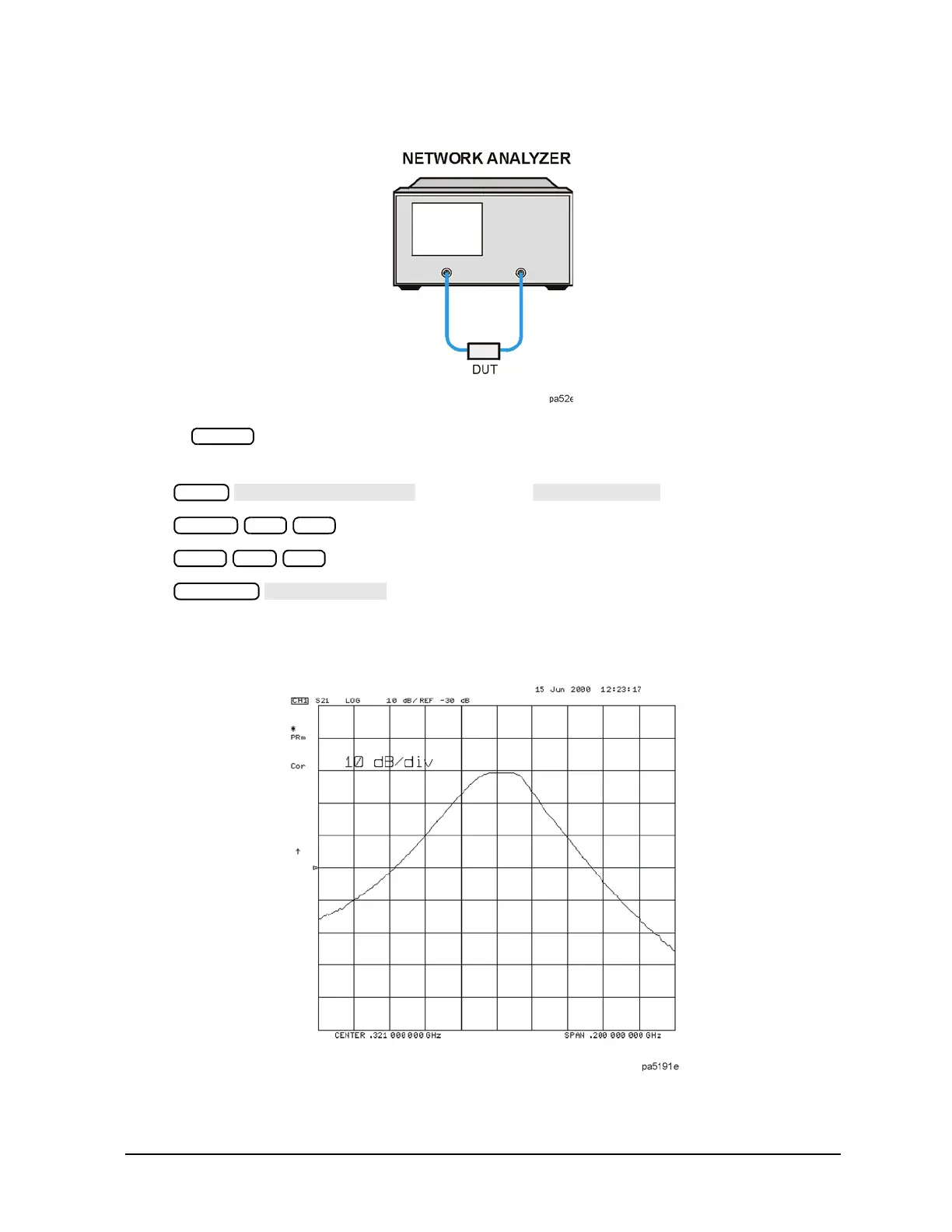

Figure 1-74 Connections for a Bandpass Filter Example Measurement
2. Press and choose the measurement settings. For this example, the measurement settings are
as follows:
a. or on ET models:
b.
c.
d.
You may also want to select settings for the number of data points, power, averaging, and IF bandwidth.
Figure 1-75 Filter Pass Band Before Bandwidth Test
3. Substitute a thru for the device and perform a response calibration by pressing:
Preset
Meas
Trans: FWD S21 (B/R)
TRANSMISSN
Center
321
M/
Span
200
M/
Scale Ref
AUTO SCALE
