Printing, Plotting, and Saving Measurement Results
Titling the Displayed Measurement
Titling the Displayed Measurement
1. Press to access the title menu.
2. Press and enter the title you want for your measurement display.
• If you have a DIN keyboard attached to the analyzer, type the title you want from the keyboard. Then
press
to enter the title into the analyzer. You can enter a title that has a maximum of 50
characters. (For more information on using a keyboard with the analyzer, refer to the “Options and
Accessories” chapter of the reference guide.)
• If you do not have a DIN keyboard attached to the analyzer, enter the title from the analyzer front
panel.
a. Turn the front panel knob to move the arrow pointer to the first character of the title.
b. Press .
c. Repeat the previous two steps to enter the rest of the characters in your title. You can enter a title
that has a maximum of 50 characters.
d. Press to complete the title entry.

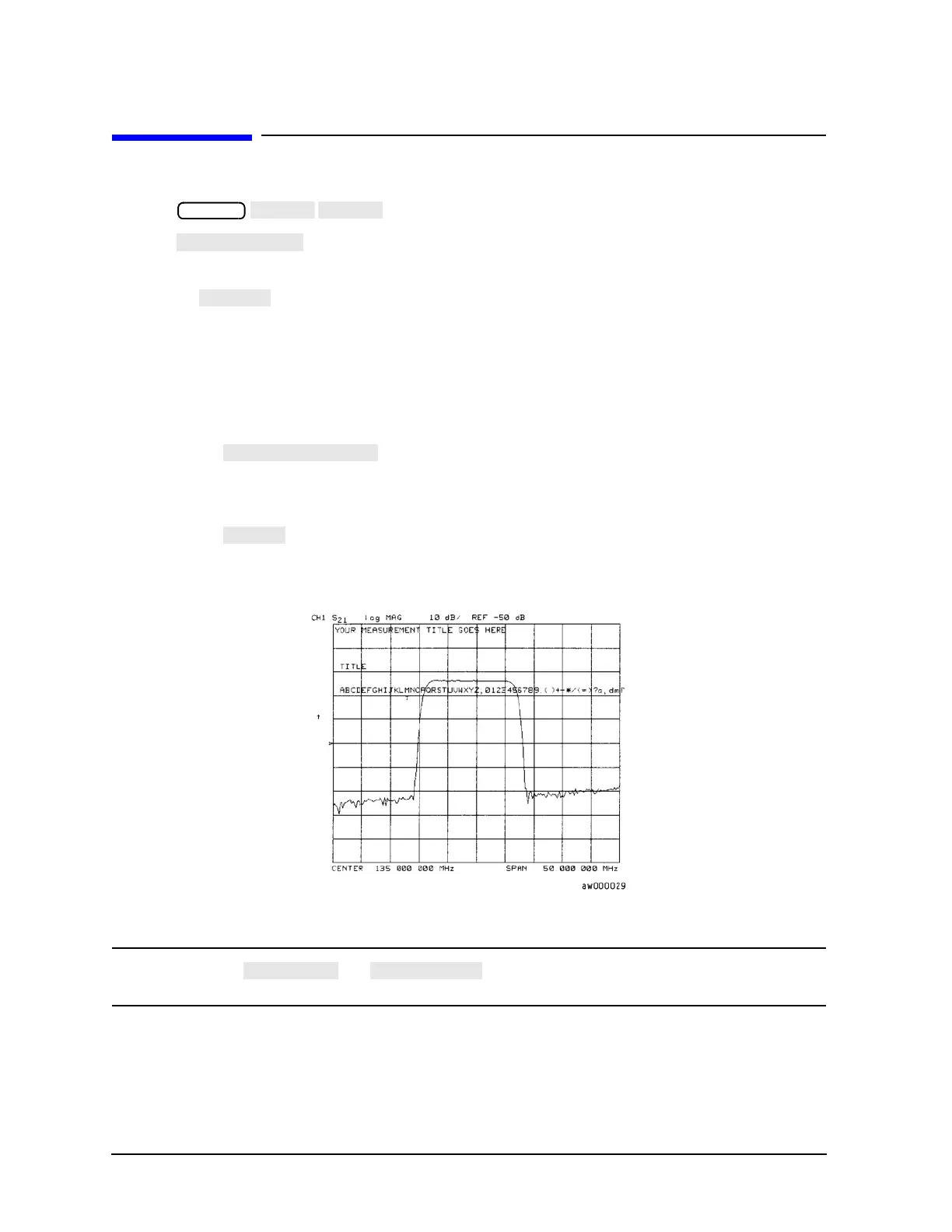

Figure 4-12 Example of a Display Title
CAUTION The and keys are not intended for creating display titles.
Those keys are for creating commands to send to peripherals during a sequence program.
