Operating Concepts
Analyzer Display Formats
Group Delay Format
The softkey selects the group delay format, with marker values given in seconds. The bandpass
filter response formatted as group delay is shown in Figure 7-8. Group delay principles are described in the
next few pages.

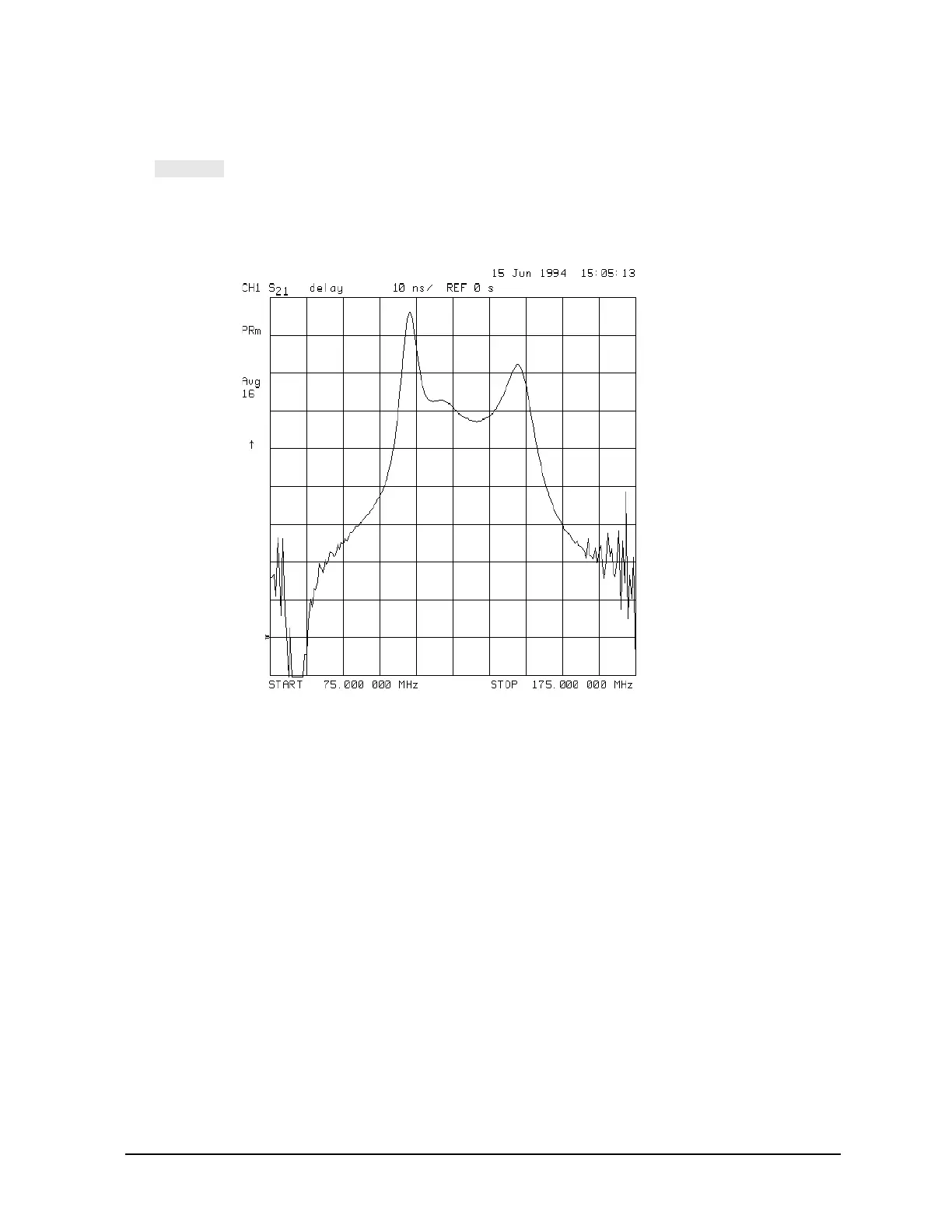

Figure 7-8 Group Delay Format
DELAY
