Agilent Technologies 8753ES

7- 26
Operating Concepts
Analyzer Display Formats
Phase Format
The softkey displays a Cartesian format of the phase portion of the data, measured in degrees.
This format displays the phase shift versus frequency. The phase response of the same filter in a phase-only
format is illustrated in
Figure 7-7.

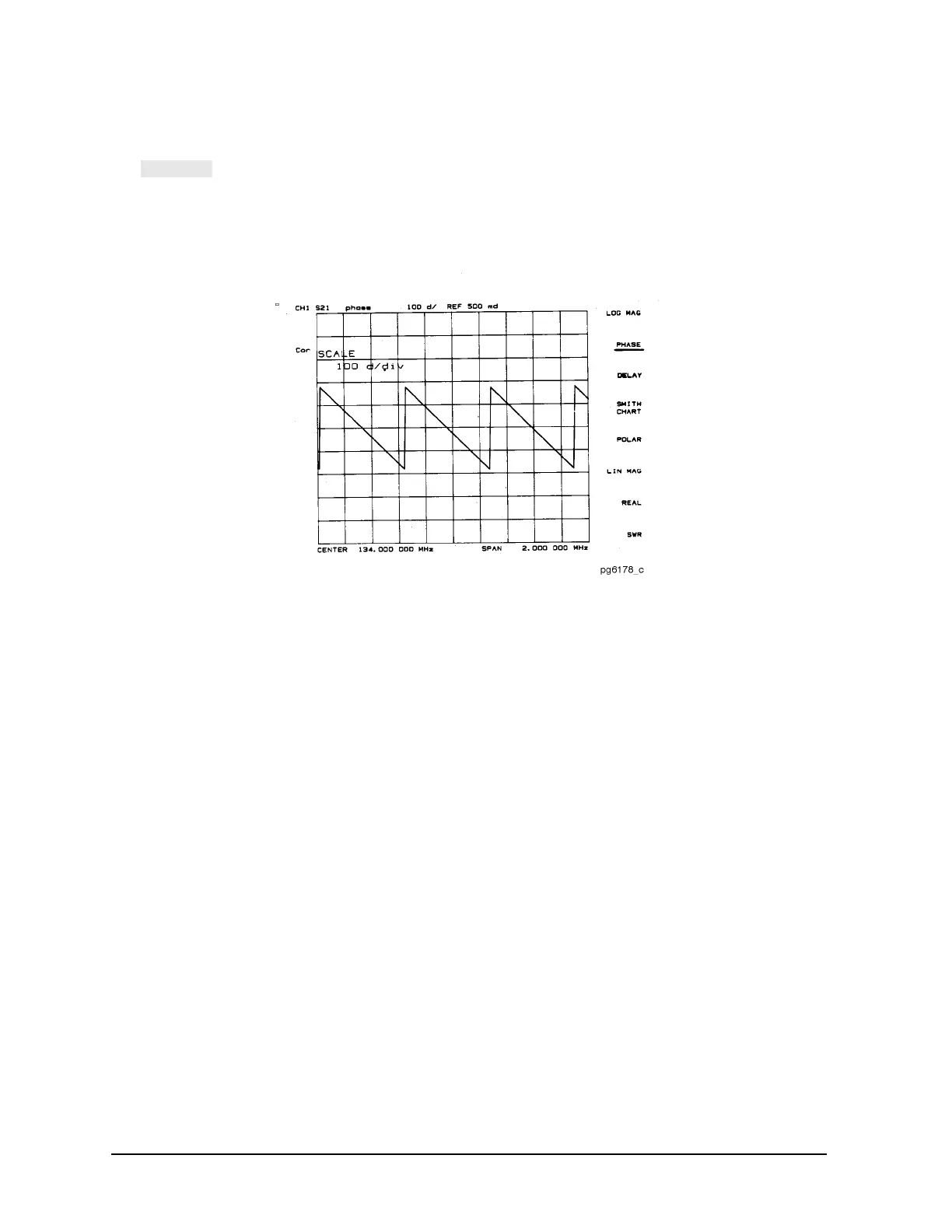

Figure 7-7 Phase Format
PHASE
