Making Measurements
Using Markers
To Search for a Specific Amplitude
These functions place the marker at an amplitude-related point on the trace. If you switch on tracking, the
analyzer searches every new trace for the target point.
Searching for the Maximum Amplitude
1. Press to access the marker search menu.
2. Press to move the active marker to the maximum point on the measurement trace.

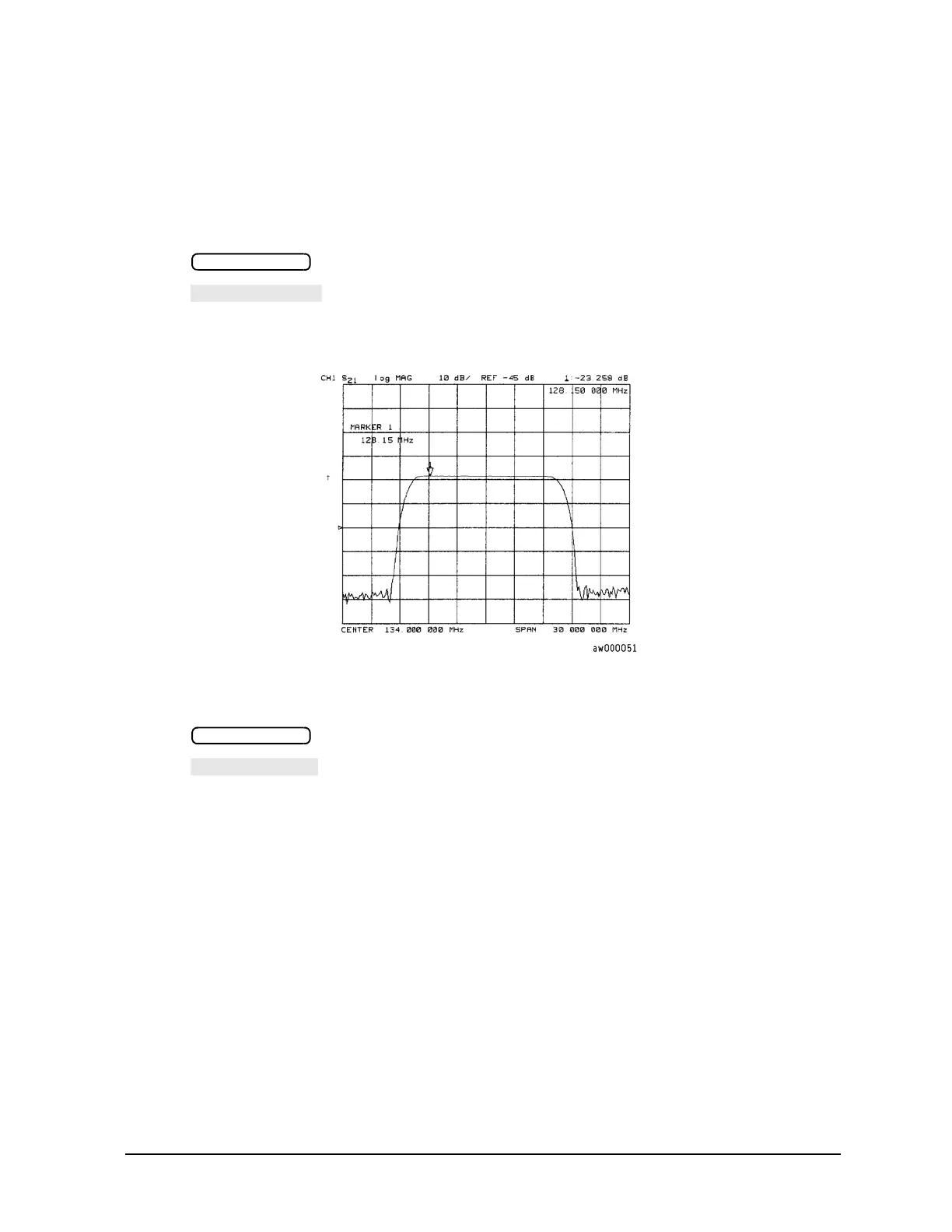

Figure 1-28 Example of Searching for the Maximum Amplitude Using a Marker
Searching for the Minimum Amplitude
1. Press to access the marker search menu.
2. Press to move the active marker to the minimum point on the measurement trace.
