Operating Concepts
Knowing the Instrument Modes
Figure 7-47.

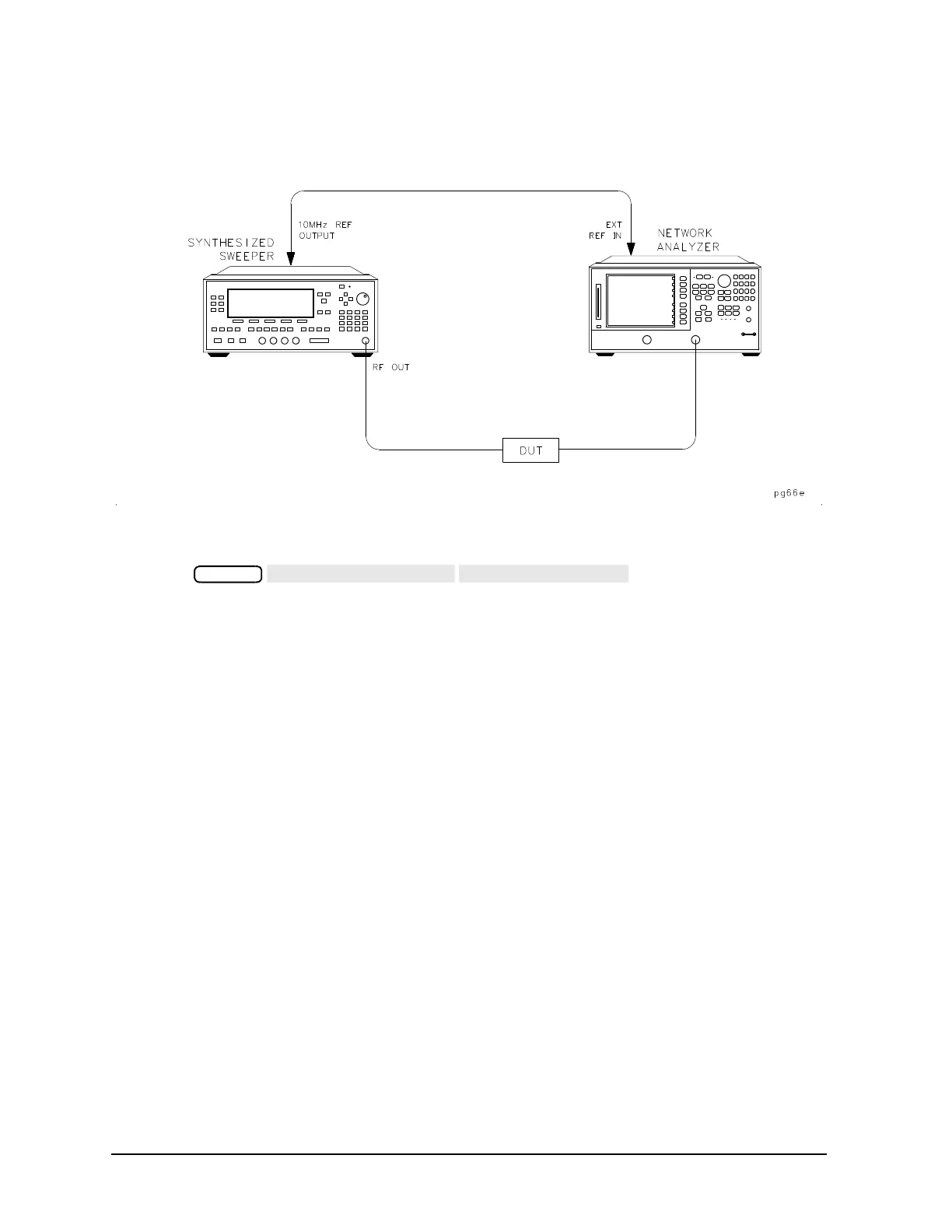

Figure 7-47 Typical Test Setup for Tuned Receiver Mode
Tuned Receiver Mode In-Depth Description
If you press , the analyzer receiver
operates independently of any signal source.
The following features and limitations apply to the tuned receiver mode:
• It is a fully synthesized receiver; it does not phase-lock to any source.
• It functions in all sweep types.
• It requires a synthesized CW source whose timebase is input to the analyzer's external frequency
reference.
For more information on using the tuned receiver mode, refer to “Tuned Receiver Mode” on page 2-26.
Frequency Offset Operation
Refer to “Conversion Loss Using the Frequency Offset Mode” on page 2-13 for information on frequency
offset operation.
