Agilent Technologies 8753ES

2-24
Making Mixer Measurements
High Dynamic Range Swept RF/IF Conversion Loss

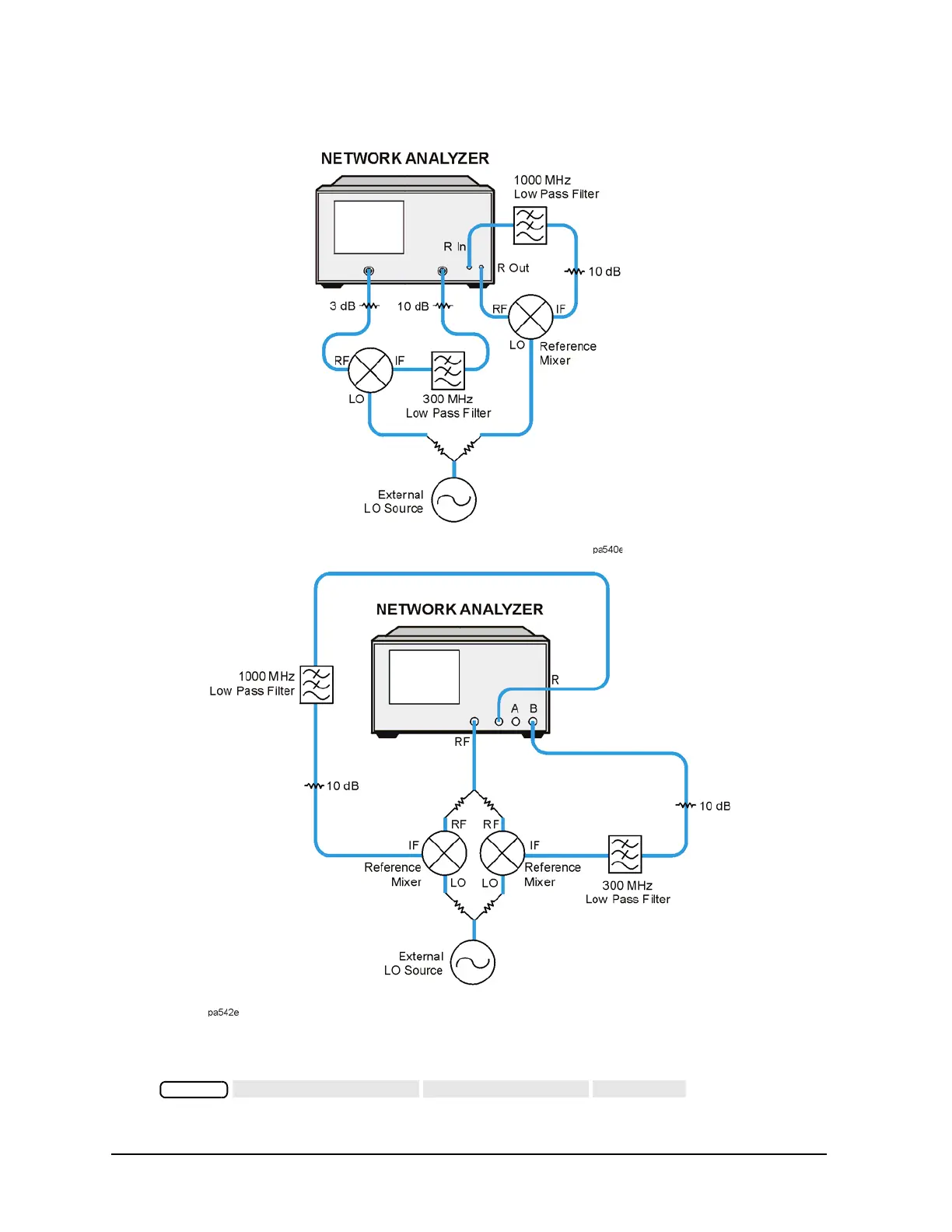

Figure 2-19 Connections for a High Dynamic Range Swept IF Conversion Loss Measurement
4. Set the analyzers LO frequency to match the frequency of the LO source by pressing:
System
INSTRUMENT MODE
FREQ OFFS MENU
LO MENU
