3-24
Making Time Domain Measurements
Transforming CW Time Measurements into the Frequency Domain

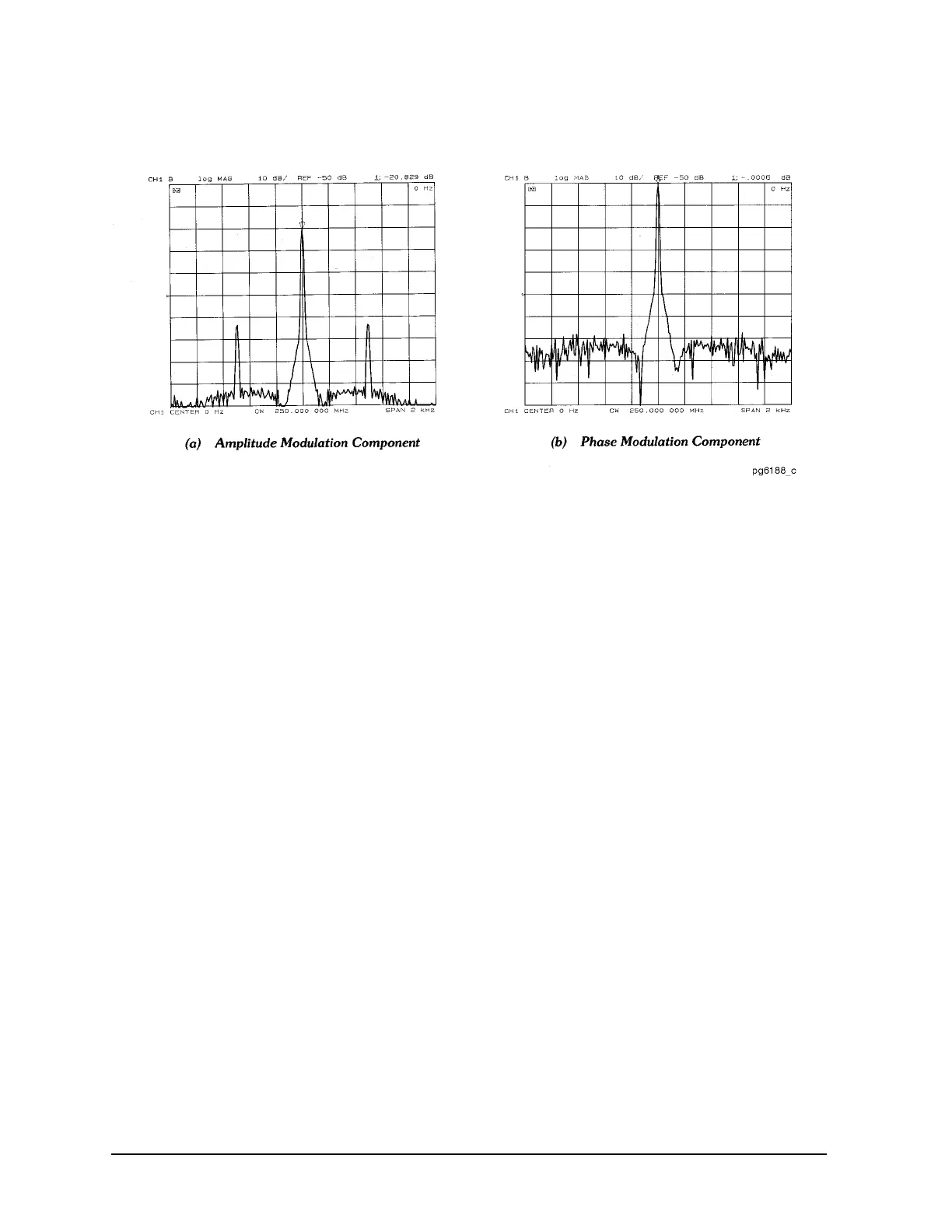

Figure 3-19 Separating the Amplitude and Phase Components of Test-Device-Induced Modulation
Forward Transform Range
In the forward transform (from CW time to the frequency domain), range is defined as the frequency span
that can be displayed before aliasing occurs, and is similar to range as defined for time domain
measurements. In the range formula, substitute time span for frequency span.
For the example, a 201 point CW time measurement made over a 200 ms time span, choose a span of 1 kHz
or less on either side of the center frequency (see
Figure 3-20). That is, choose a total span of 2 kHz or less.
Range
Number of points
1–
time span
------------------------------------------------------------=
Range
201 1–
200 10
3–
------------------------=
