To print or plot screen contents
1 Set up your printer or plotter if you haven’t already done so.
2 Select the output format and device type:
Press [
Plot/Print
], [
output fmt
] and select the desired format.
Press [
device defaults
] and select a device if you want other than the default.
3 Select the type of output port:
Press [
Plot/Print
], [
output to
]
and select the port to which your printer or plotter is attached.
4 Press [
Local/Setup
], [
system controller
].
5 Press [
Plot/Print
], [
start plot/print
]
Theanalyzerisonlyabletoinitiateprintingorplottingifitisattachedtoa
printer or plotter and is designated as the system controller. If you haven’t
already set up your printer or plotter, see “To set up peripherals.” All of the
screen’s contents, except the softkey labels, are printed when you complete this
task.
You may select various parameters under the [
plot item
]and[
plot/print setup
] softkeys
depending on your particular peripheral. To learn more about these
parameters, display online help for the relevant softkeys.

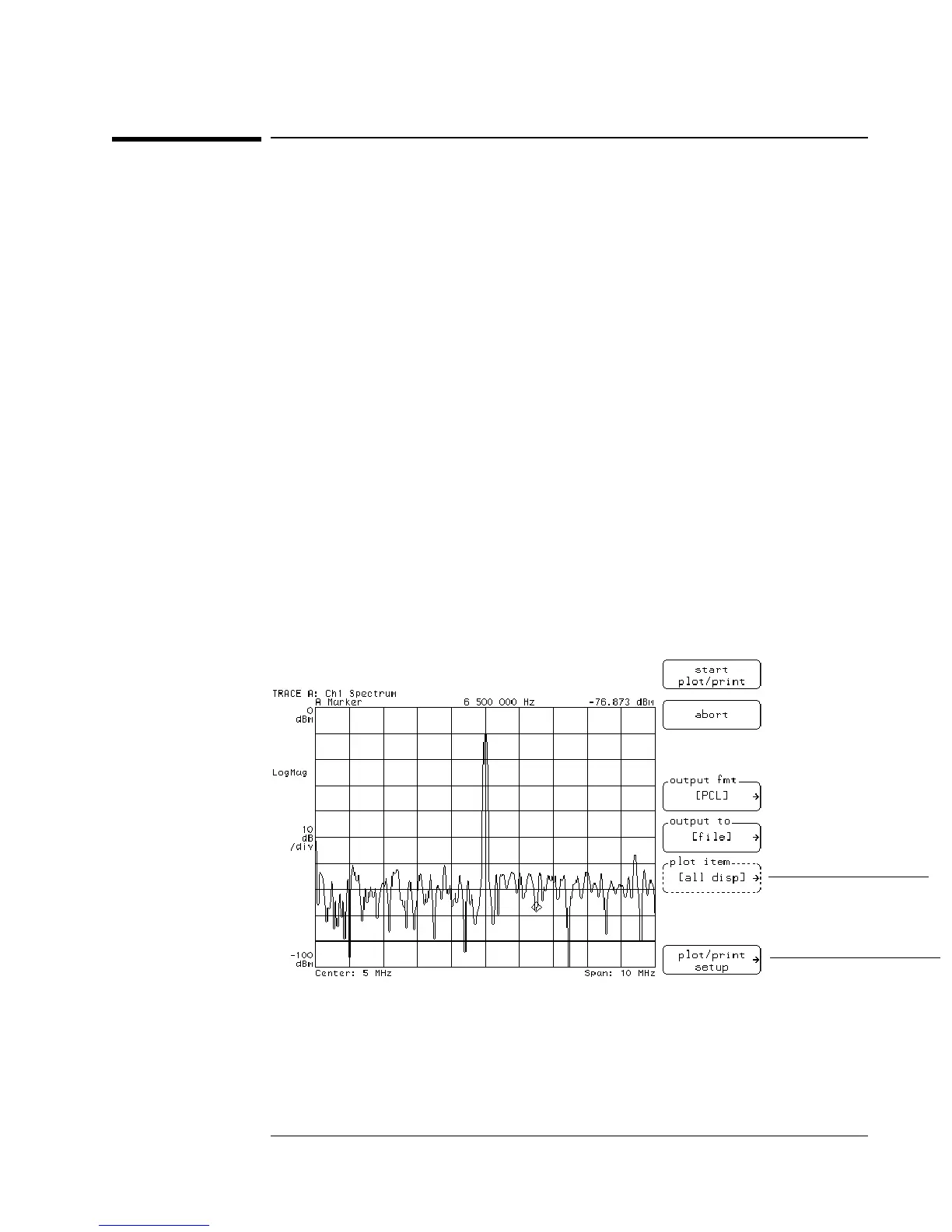

You must use the PLOT/PRINT menu to select the correct type of
device and port before starting a plot or print of the screen contents.
You can control certain
device options, depending on
your output device
With a plotter, you can
elect to plot portions of
the display
General Tasks
6-3
