To Use Time Gating
First we’ll look at the spectrum of the signal and see that three components
exist. Then we’ll look at the time display of the burst signal and analyze each
burst separately to determine which spectral components exist in each burst.
1 Initialize the analyzer:
Press [
Preset
].
2 Load the source signal file BURST.DAT into data register D3:
Insert the Signals Disk in the analyzer’s disk drive.
Press [
Save/Recall
], [
default disk
], [
internal disk
] to select the internal disk drive.
Press [
Return
] (bottom softkey), [
catalog on
] to display the files on the disk.
Rotate the knob until the file BURST.DAT is highlighted.
Press [
recall trace
], [
from file into D3
], [
enter
].
3 Connect the SOURCE output to the CHANNEL 1 input with a BNC cable.
4 Turn on the source and select arbitrary signal D3:
Press [
Source
], [
source on
], [
source type
], [
arb data reg
], [
D3
], [Return], [
arbitrary
].
Press [
Average
], [
average on
].

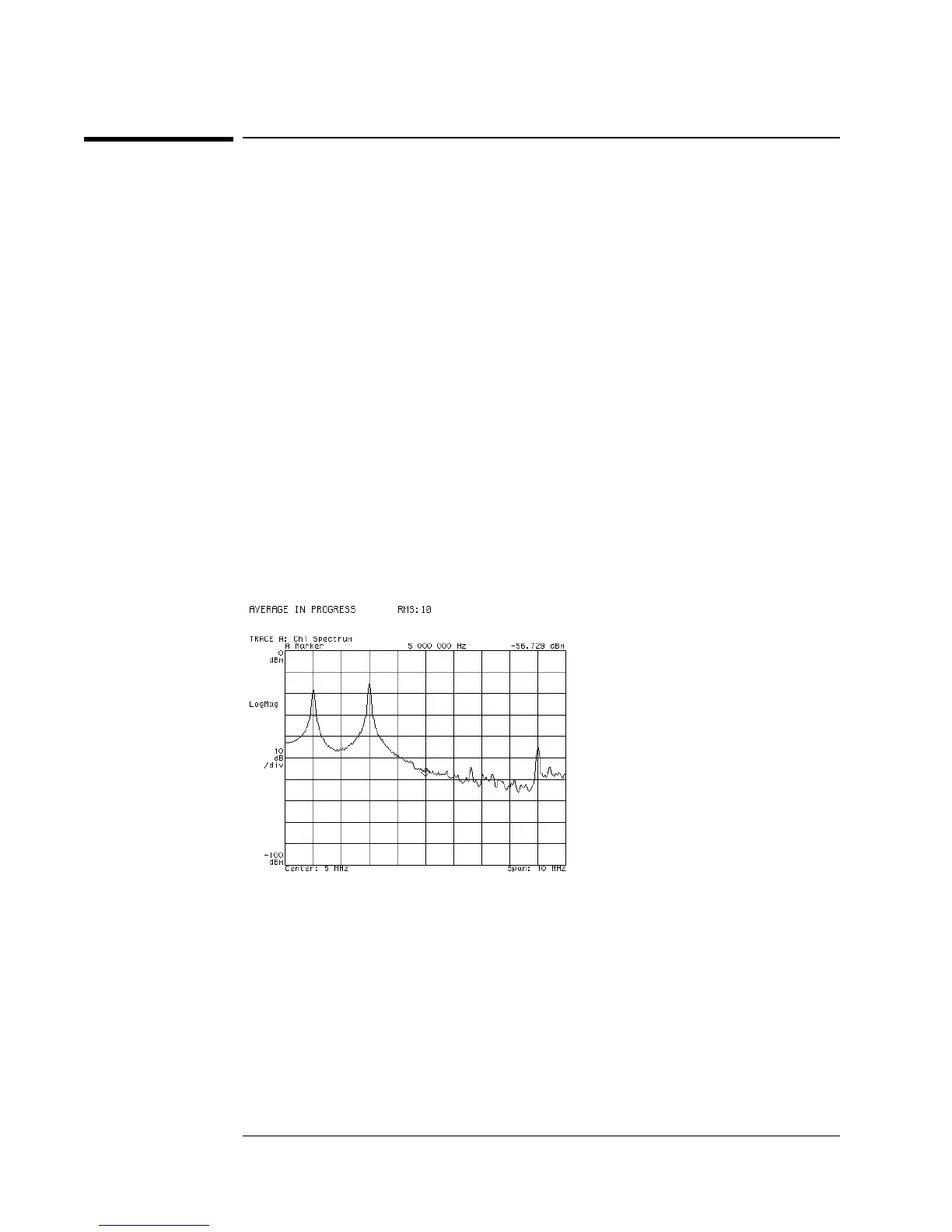

The display should now appear as shown below.
The spectrum with averaging turned on. Note existence of three components.
Using Gating to Characterize a Burst Signal
3-2
