To connect the optional frequency reference
The analyzer may be connected to the precision frequency reference (option
AY5). The precision frequency reference is a 10 MHz high stability frequency
reference with an amplitude of approximately +5 dBm. For ease of upgrading,
the OVEN REF OUT connector is installed even when option AY5 is not
installed. To determine if the option is installed, press [
System Utility
][
option setup
].
l

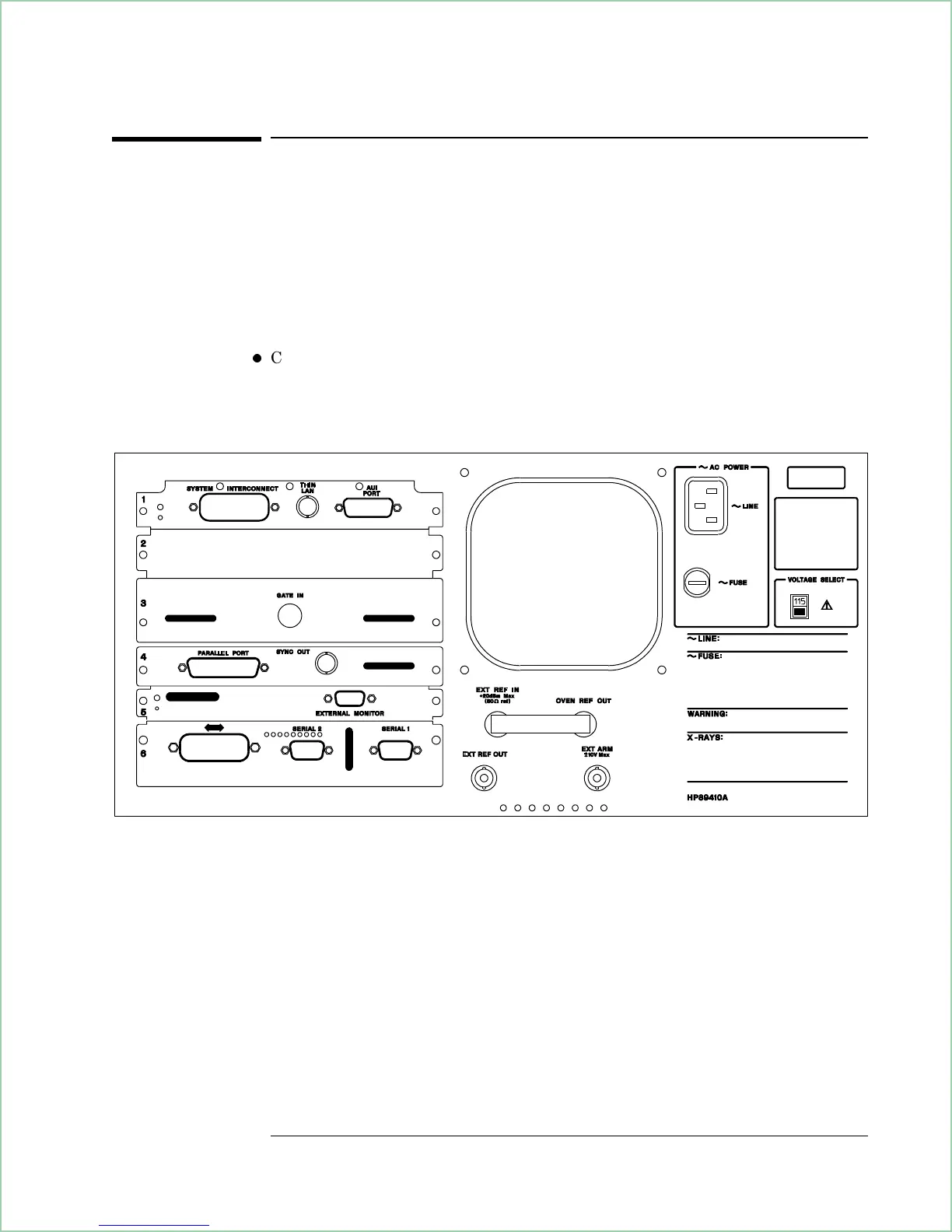

Connect OVEN REF OUT to EXT REF IN using the supplied coax BNC-to-coax
BNC connector (Agilent part number 1250-1499).
The analyzer uses its internal frequency reference if OVEN REF OUT or an
external frequency reference is not connected to EXT REF IN.
Preparing the Analyzer for Use
7-13
