Identifying Cables
9
Remote Cables
Remote Cables
One end of these cables provides a Agilent Technologies APG (Analytical
Products Group) remote connector to be connected to Agilent 1100/1200
Infinity modules. The other end depends on the instrument to be connected to.

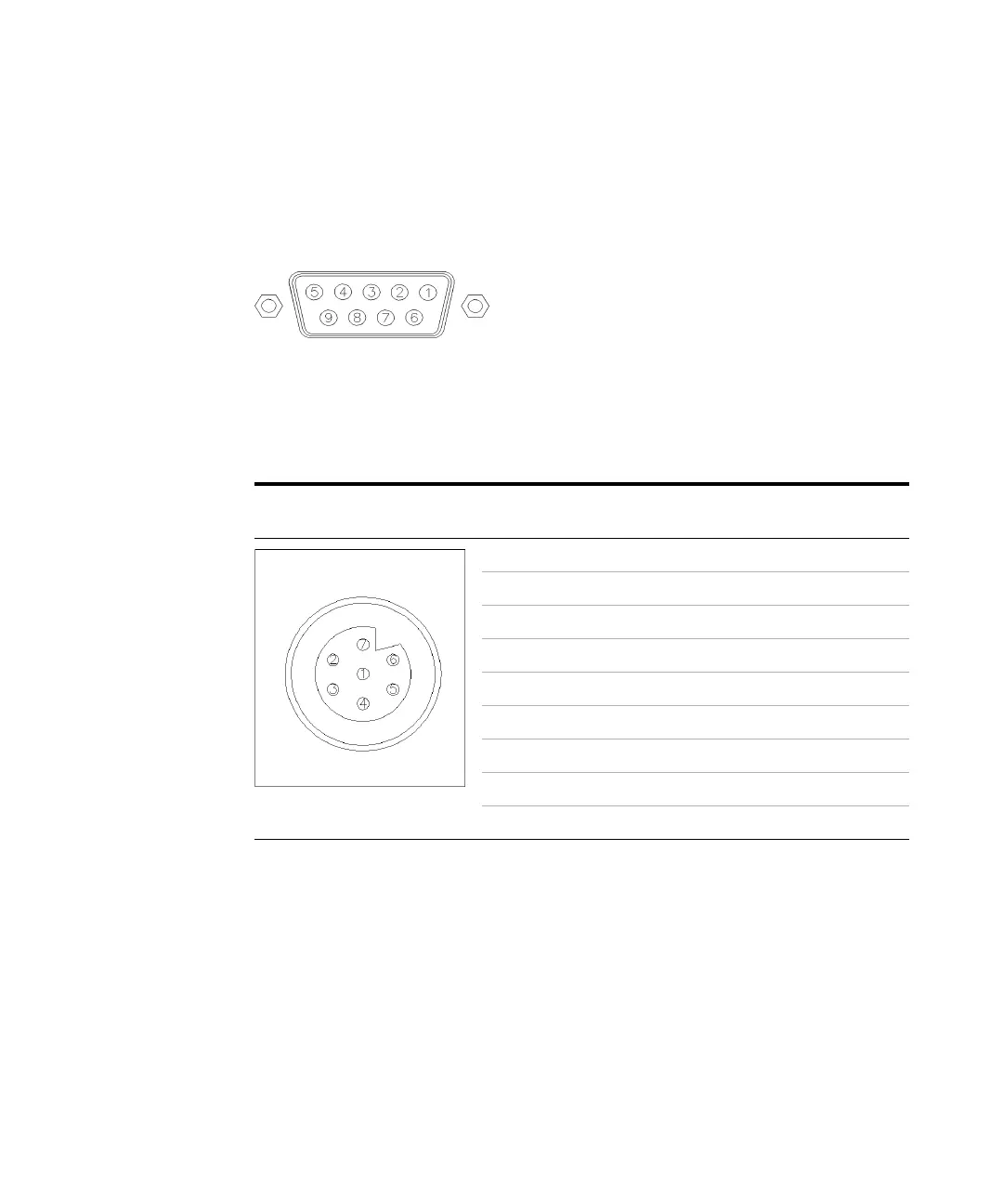

Agilent Modules to 3390 Integrators
Connector 01046-60203 Pin 3390 Pin Agilent
module
Signal Name Active
(TTL)
2 1 - White Digital ground
NC 2 - Brown Prepare run Low
7 3 - Gray Start Low
NC 4 - Blue Shut down Low
NC 5 - Pink Not connected
NC 6 - Yellow Power on High
NC 7 - Red Ready High
NC 8 - Green Stop Low
NC 9 - Black Start request Low
