3 Installing the Autosampler

Installing the Sample Tray

1 Open the front door.

2 Load the sample tray with sample vials as required.

3 Slide the sample tray into the autosampler so that the rear of the sample

tray is seated firmly against the rear of the sample-tray area.

4 Press the front of the sample tray down to secure the tray in the

autosampler.

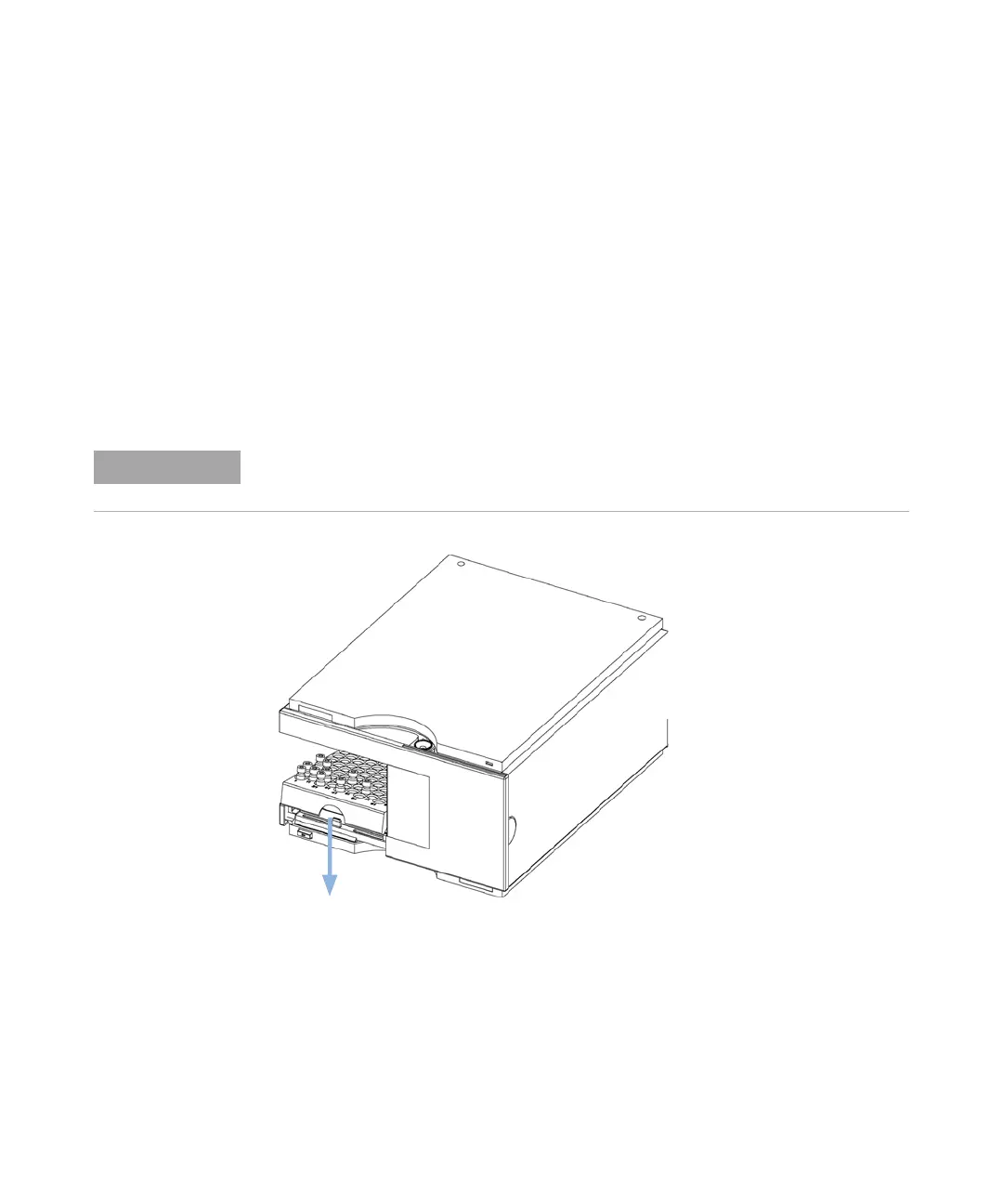

Figure 19 Installing the Sample Tray

NOTE

If the thermostatted autosampler tray pops out of position the air channel adapter is not

inserted correctly.
