Introduction to the Autosampler
Electrical Connections
Figure
8

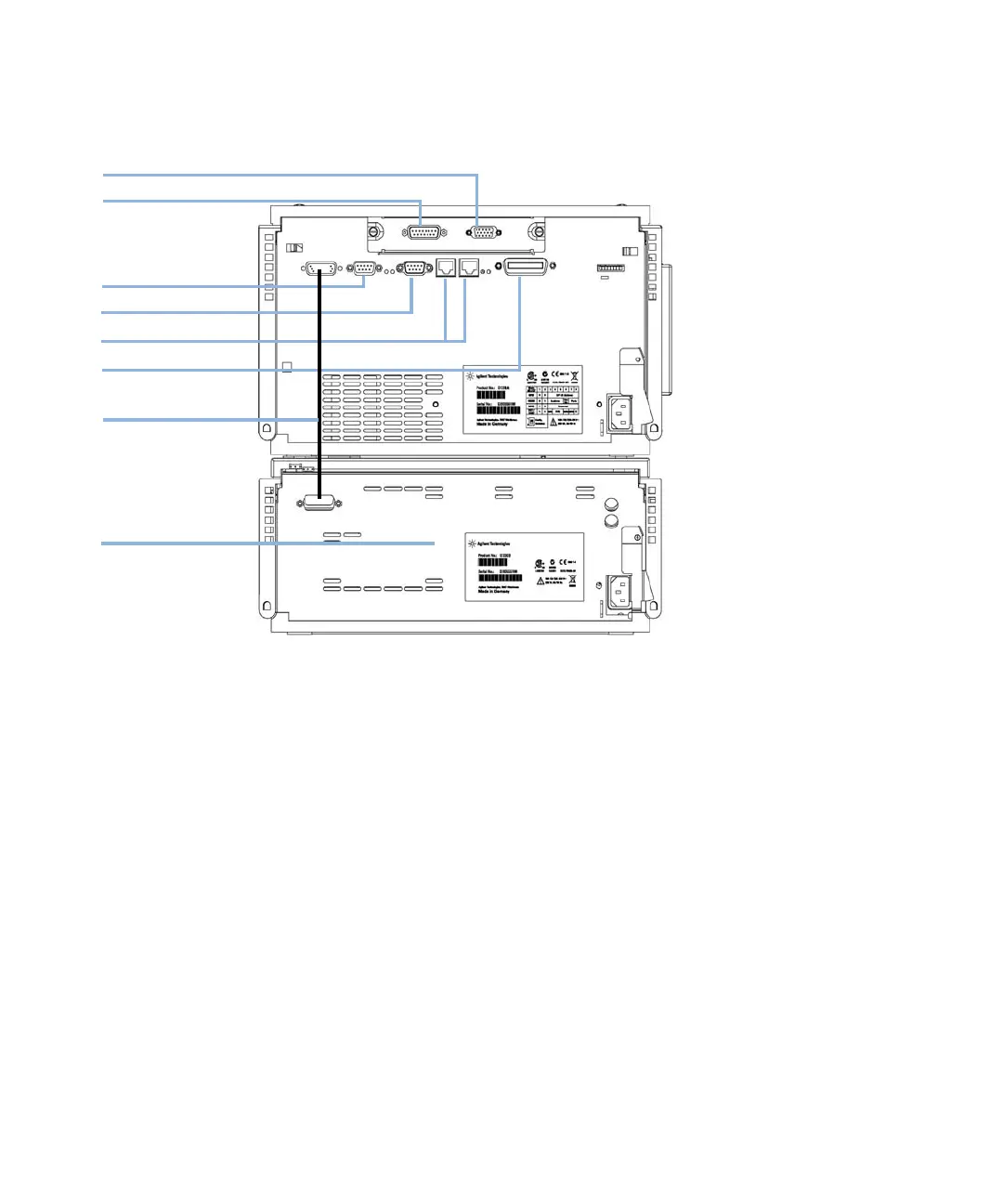

Autosampler (plus Thermostat) Electric
al Connections
<E>7
GH'('8
86C"Wjh
GZbdiZ
K^VacjbWZgdjieji
GZaVnXdciVXih
8dccZXi^dc
6AH"I]ZgbdhiVi
<&((%7I]ZgbdhiVi
dei^dcVa
19
21
Table of Contents
Table of Contents
3
Introduction to the Autosampler
7
Introduction to the Autosampler
8
Sampling Sequence
10
Injection Sequence
11
Sampling Unit
13
Needle-Drive
14
Analytical Head / Preparative Head
14
Injection-Valve
15
Transport Assembly
16
Early Maintenance Feedback (EMF)
18
Electrical Connections
19
Agilent 1200 Infinity Interfaces
21
2 Site Requirements and Specifications
23
Site Requirements
24
Power Consideration
24
Power Cords
25
Bench Space
26
Environment
26
Physical Specifications
27
Performance Specifications
28
3 Installing the Autosampler
33
Unpacking the Autosampler
34
Damaged Packaging
34
Delivery Checklist
34
Optimizing the Stack Configuration
37
Installing the Autosampler
41
Installing the Thermostatted Autosampler
44
Flow Connections
48
Installing the Sample Tray
50
Transporting the Autosampler
51
Using the Autosampler
53
Solvent Information
54
Sample Trays
56
Choice of Vials and Caps
58
5 Optimizing Performance
61
Optimization for Lowest Carry-Over
62
Using the Automated Needle Wash
63
Using an Injector Program
64
General Recommendation to Lowest Carry-Over
65
Fast Injection Cycle and Low Delay Volume
66
Overlapped Injection Mode
66
General Recommendations for Fast Injection Cycle Times
67
Precise Injection Volume
68
Draw and Eject Speed
68
Choice of Rotor Seal
70
Troubleshooting and Diagnostics
71
Agilent Lab Monitor & Diagnostic Software
72
Overview of the Sampler's Indicators and Test Functions
73
7 Maintenance
75
Introduction into Maintenance and Repair
76
Simple Repairs
76
Exchanging Internal Parts
76
Safety Flap, Flex Board
76
Transport Assembly Parts
76
Updating the Firmware
77
Warnings and Cautions
78
Using the ESD Strap
78
Cleaning the Module
79
Overview of Main Repair Procedures
80
Early Maintenance Feedback (EMF)
82
EMF Counters
82
Using the EMF Counters
83
Maintenance Functions
84
Simple Repairs
85
Needle Assembly
86
Needle-Seat Assembly
89
Stator Face
91
Rotor Seal
94
Metering Seal and Plunger
98
Gripper Arm
102
Interface Board
104
8 Parts and Materials for Maintenance
105
Default Chapter
106
Main Assemblies
106
Analytical-Head Assembly
108
Vial Trays
111
Standard Autosampler Accessory Kit G1329-68725
112
Preparative Autosampler Accessory Kit G2260-68705
113
Maintenance Kit G1313-68730 for G1329A
114
Maintenance Kit G1313-68719 for G1329B
115
Multi-Draw Kit G1313-6871
116
900 Μl Injection Upgrade Kit G1363A for G1329A
117
External Tray G1313-60004
118
Identifying Cables
119
Cable Overview
120
Analog Cables
122
Remote Cables
125
BCD Cables
130
External Contact Cable
132
CAN/LAN Cables
133
Auxiliary Cable
134
Cables
135
Appendix
137
General Safety Information
138
Lithium Batteries Information
142
Radio Interference
143
Sound Emission
144
Agilent Technologies on Internet
145
Other manuals for Agilent Technologies G1329A
