Agilent Technologies G1329A

95
Maintenance
7
Simple Repairs
1

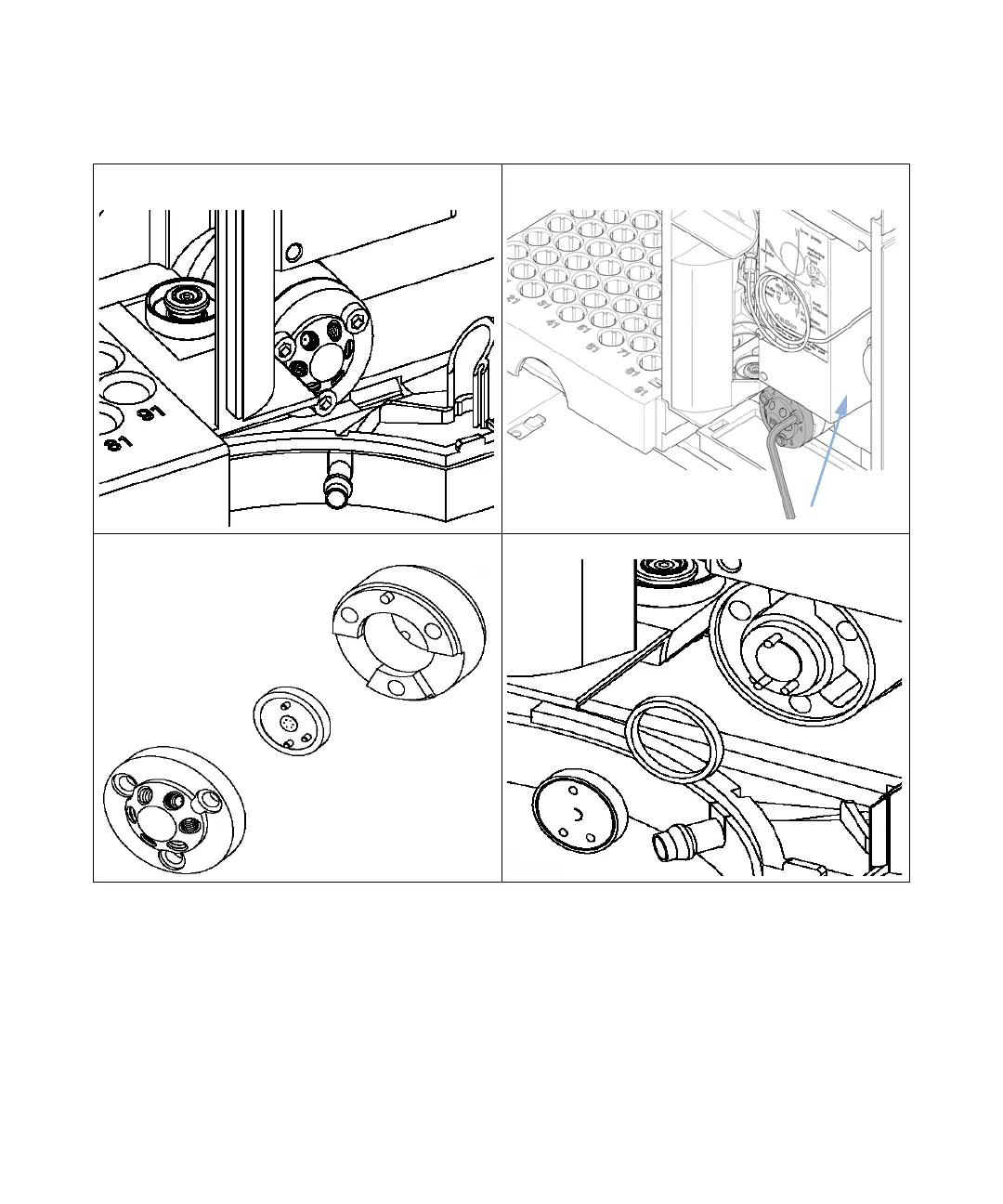

Remove all capillary fittings from the injection-valve ports. 2 Loosen each fixing bolt two turns at a time. Remove the
bolts from the head.
3 Remove the stator head, stator face and stator ring. 4 Remove the rotor seal and isolation seal.
