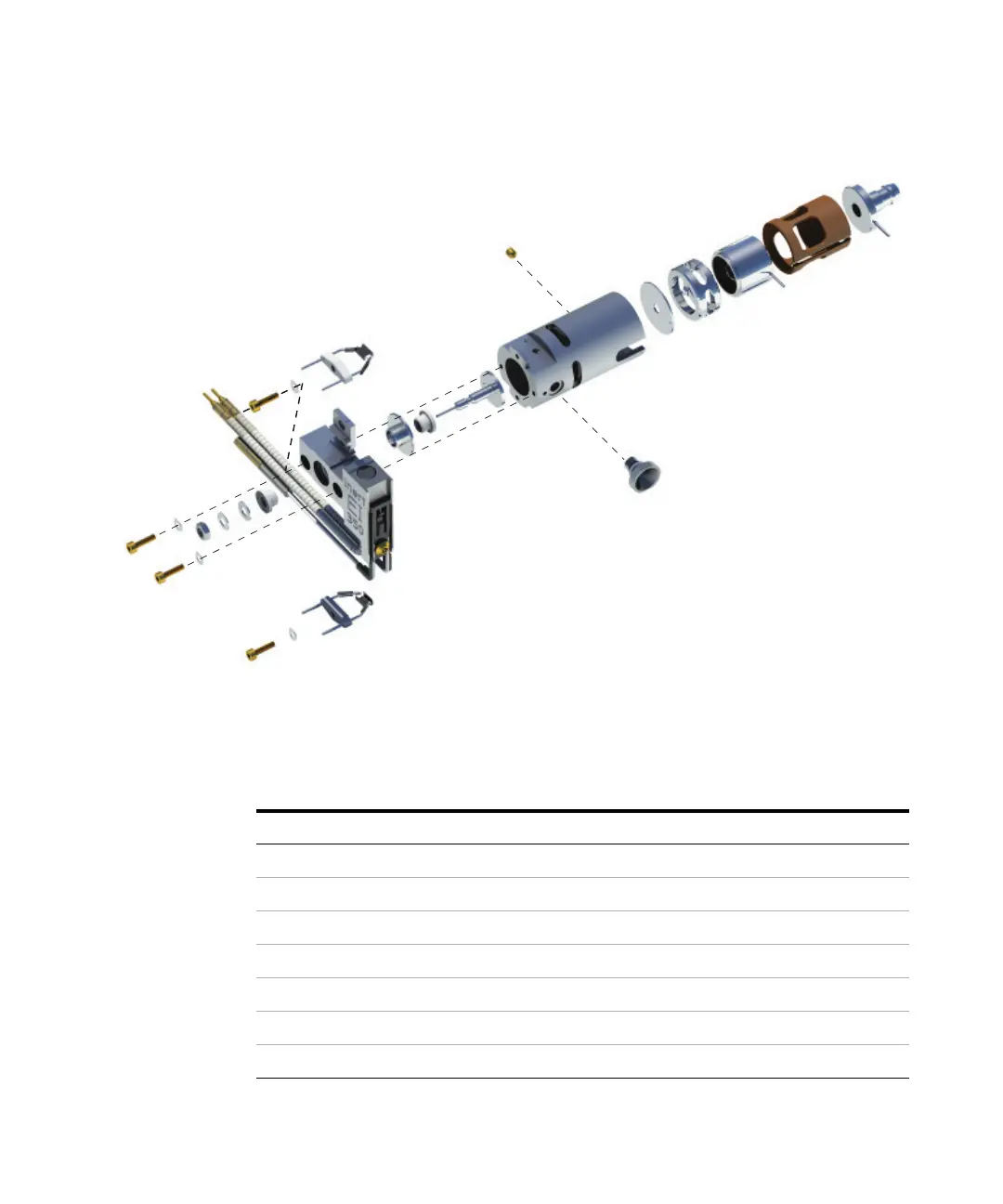

Figure 21 Disassembling the standard or inert EI ion source
1
2
8*
15
1515
15
14
14
14
2*
2*
16
16
16
8*
12*
12*
12*
10
2*
8*
7*
17
18
3
8
7
12
13
4
6
5
11
9
Table 24 Parts list for the standard or inert EI ion source (Figure 21)
Item number Item description
1 Gold plated set screw
2 Gold plated screw
3 Interface socket
4 Source body
5 Drawout cylinder
6 Drawout plate
7 4-turn filament
