CI Maintenance
6
5977 Series MSD Operation Manual
165

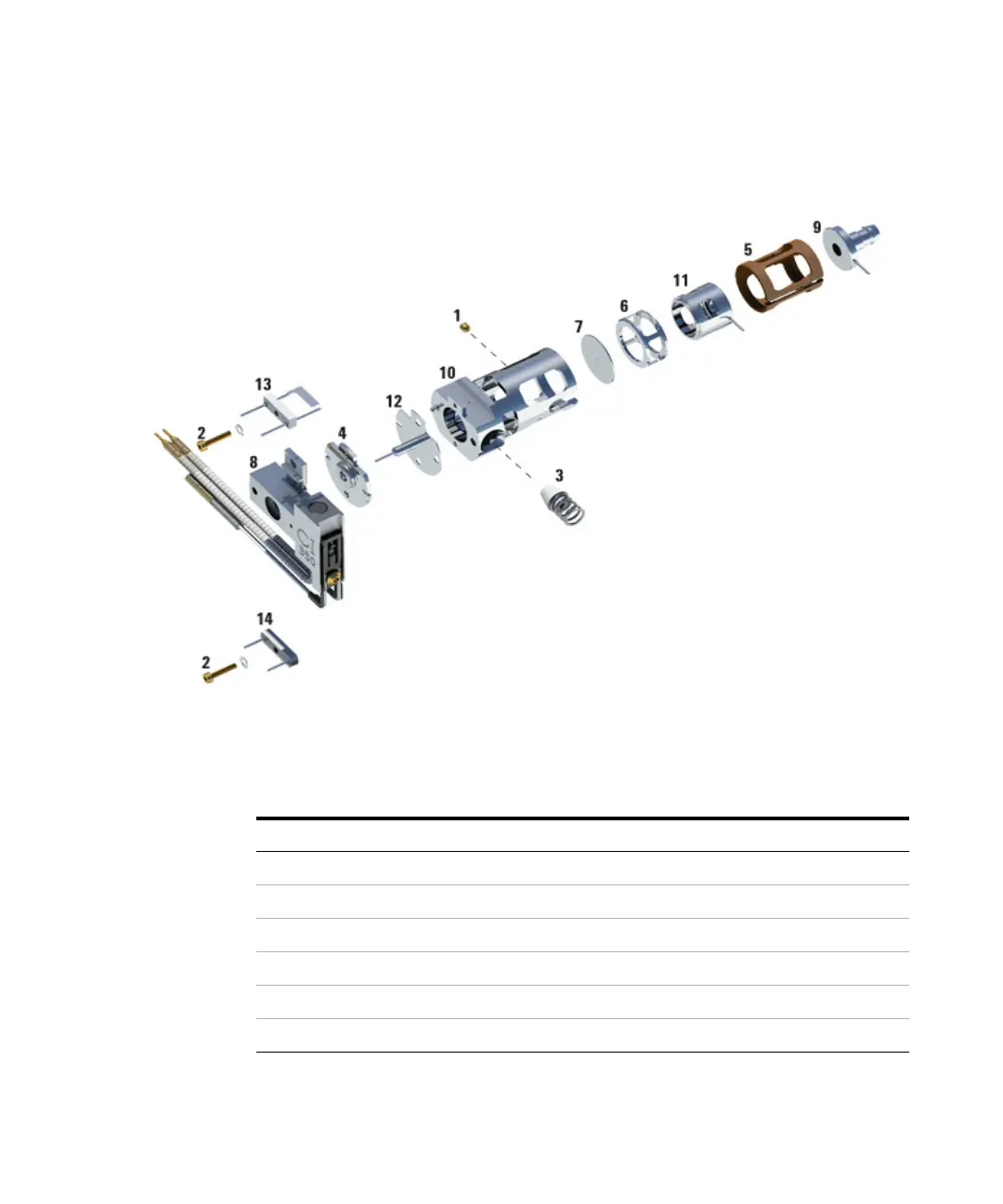

Figure 31
Assembling the CI ion source
T
able 30
Parts list for the CI ion source (
Figure
31
)
Item number
Item description
1
Setscrew
2
Filament screw
3
CI interface tip seal
4
CI repeller insulator
5
CI lens insulator
6
CI drawout cylinder
164
166
