Quick Reference 1
Series N6700 User’s Guide 11

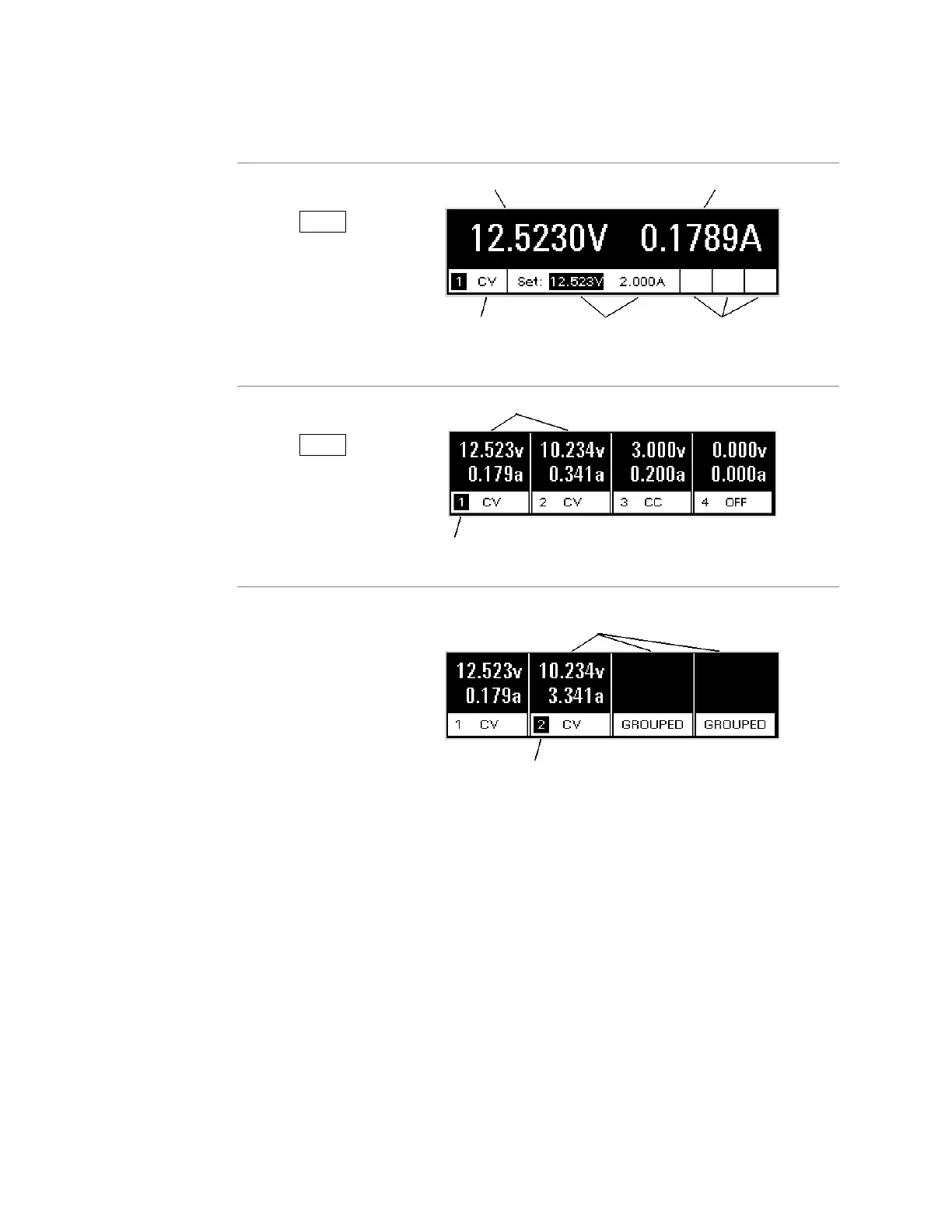

Front Panel Display – At a Glance
Single-channel View Voltage measurement Current measurement
Press the Meter key
to toggle between
views
Operating mode (CV =
constant voltage mode)
Voltage and Current
settings
Remote interface status
(ALL, SRQ, ERR, IO)
Multiple-channel View Voltage and Current measurements
Press the Meter key
to toggle between
views
The highlighted channel is the active channel
Grouped-channel View Channels 2 through 4 are connected in parallel and have been
configured or grouped to act as a single, higher-power channel
Refer to Chapter 4,
under “System Related
Operations” for more
information
Grouped channels are addressed using the channel number of the
lowest channel in the group
To Next Page
