Getting Started 3
Series N6700 User’s Guide 31

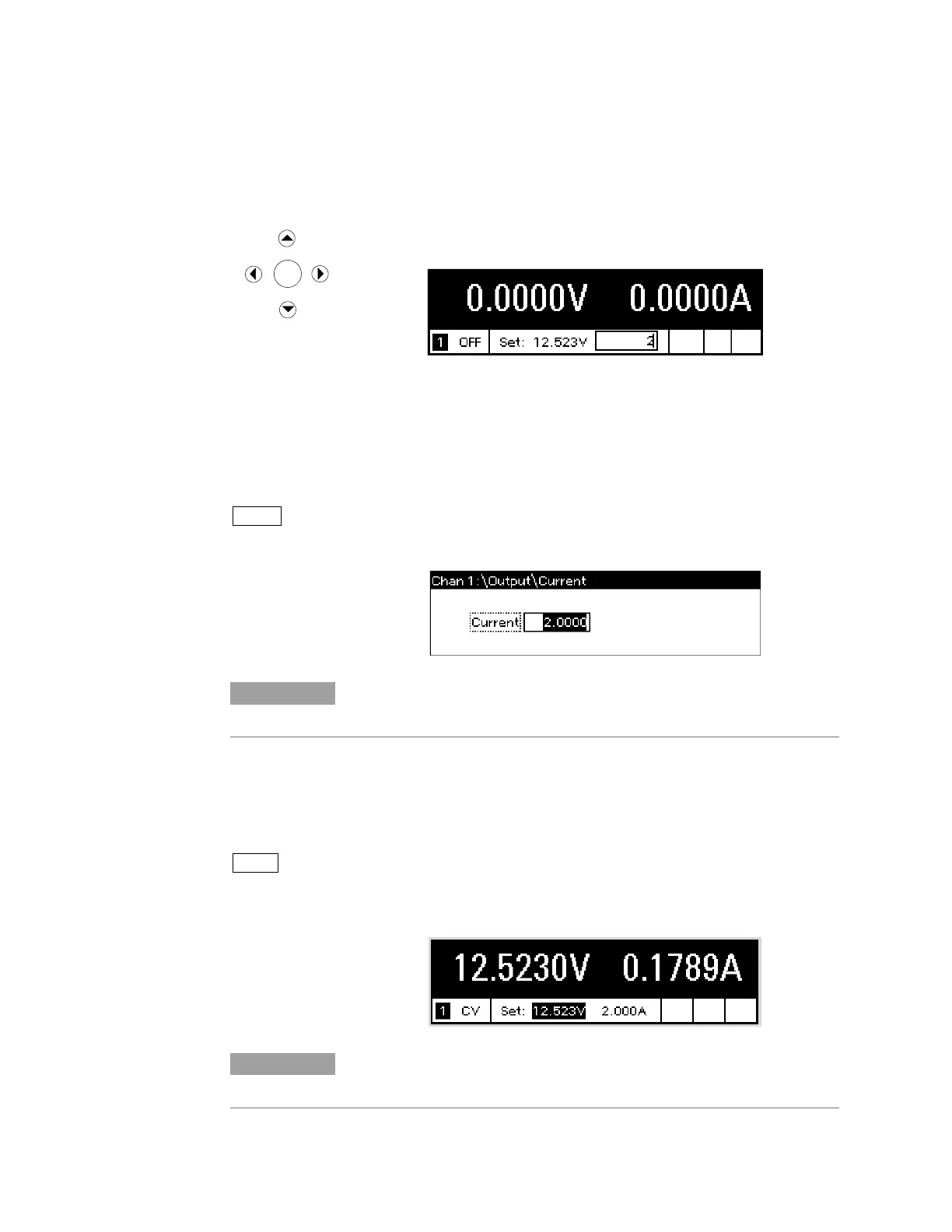

Entering a Current Limit Setting
Method 1 – Use the Navigation and Arrow Keys
Navigation Keys
Sel
Use the left and right navigation keys to navigate to the setting that you wish
to change. In the display below, channel 1’s current setting is selected. Enter
a value using the numeric keypad. Then press Enter.
Arrow Keys
©
©©
© ª
ªª
ª
You can also use the arrow keys to adjust the value up or down. When the
output is on and the unit is operating in CC mode, the output current changes
immediately. Otherwise, the value will become effective when the output is
turned on.
Method 2 - Use the Current key to enter a value
Current
Use the Current key to select the current entry field. In the display below,
channel 1’s voltage setting is selected. Enter the desired setting using the
numeric keypad. Then press Enter.
NOTE
If you make a mistake, either use the § backspace key to delete the number,
press Back to back out of the menu, or press Meter to return to meter mode.
Enabling the Output
Use the On/Off key to enable the output
On/Off
If a load is connected to the output, the front panel display will indicate that
it is drawing current. Otherwise, the current reading will be zero. The status
indicator next to the channel number indicates the output’s status. In this
case, the output channel is in constant voltage mode.
NOTE
For a complete description of the status indicators, refer to Chapter 6 under
“STATus:OPERation:EVENt?” and “STATus:QUEStionable:EVENt?”
