18 Installation Note E4440-90613
Installation Procedure
14.Locate cable W89, one end is already connected to Switch SW3 bottom port. Refer to
Figure 11. Route the cable next to the RF section sheet metal and directly to the
RYTHM as shown. Carefully align the SMB connector end of the cable with the
RYTHM connector by looking through the hole in the chassis. Press the SMB
connector on.

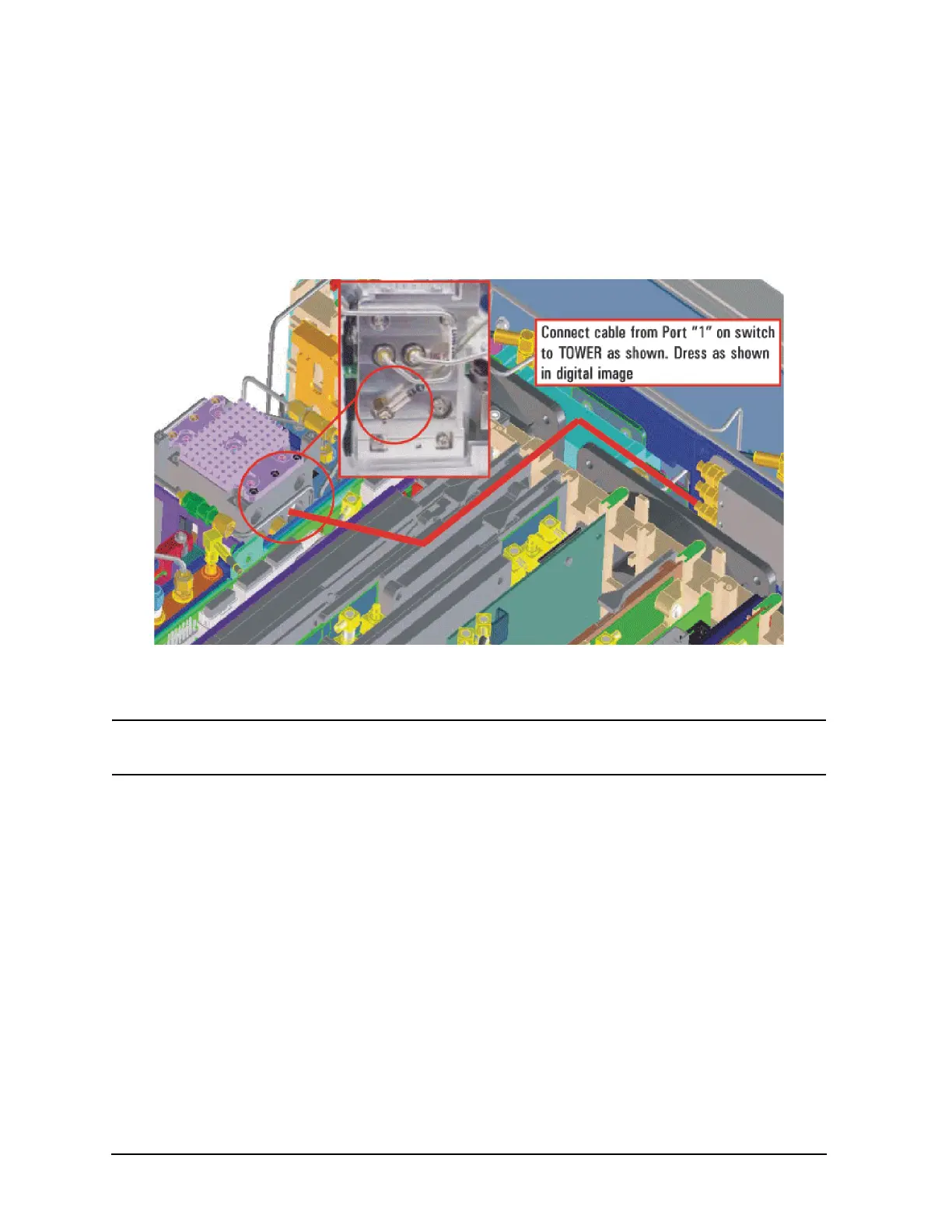

Figure 11 W89 Location
15.Reinstall the A13 Front End Driver, Synthesizer Assembly and the Reference
Assembly. Assure all cables are routed correctly.
NOTE The shrink-wrapped ferrite beads on the cable can be moved slightly to
aid cable routing.
