22 Installation Note E4440-90613
Installation Procedure
Attenuator / Cable W46 / A12 FELOMA) This cable is reference designator W98.
Connect one end of W98 to the 3 dB Attenuator and the other end to the Preselector
Bypass Mixer. Refer to Figure 15 and Figure 8. Torque to 10 in-lbs.
36.Connect Cable W94 (Coaxial Switch SW3 Port C to 3rd Converter Assembly J1).
37.Refer to Figure 14 and Figure 15. Locate and install E4446-20080 semi-rigid cable
from the kit. This cable is reference designator W105 (Switch SW5 Port 2 to W34 on
the RYTHM/SBTX). Torque to 10 in-lbs.

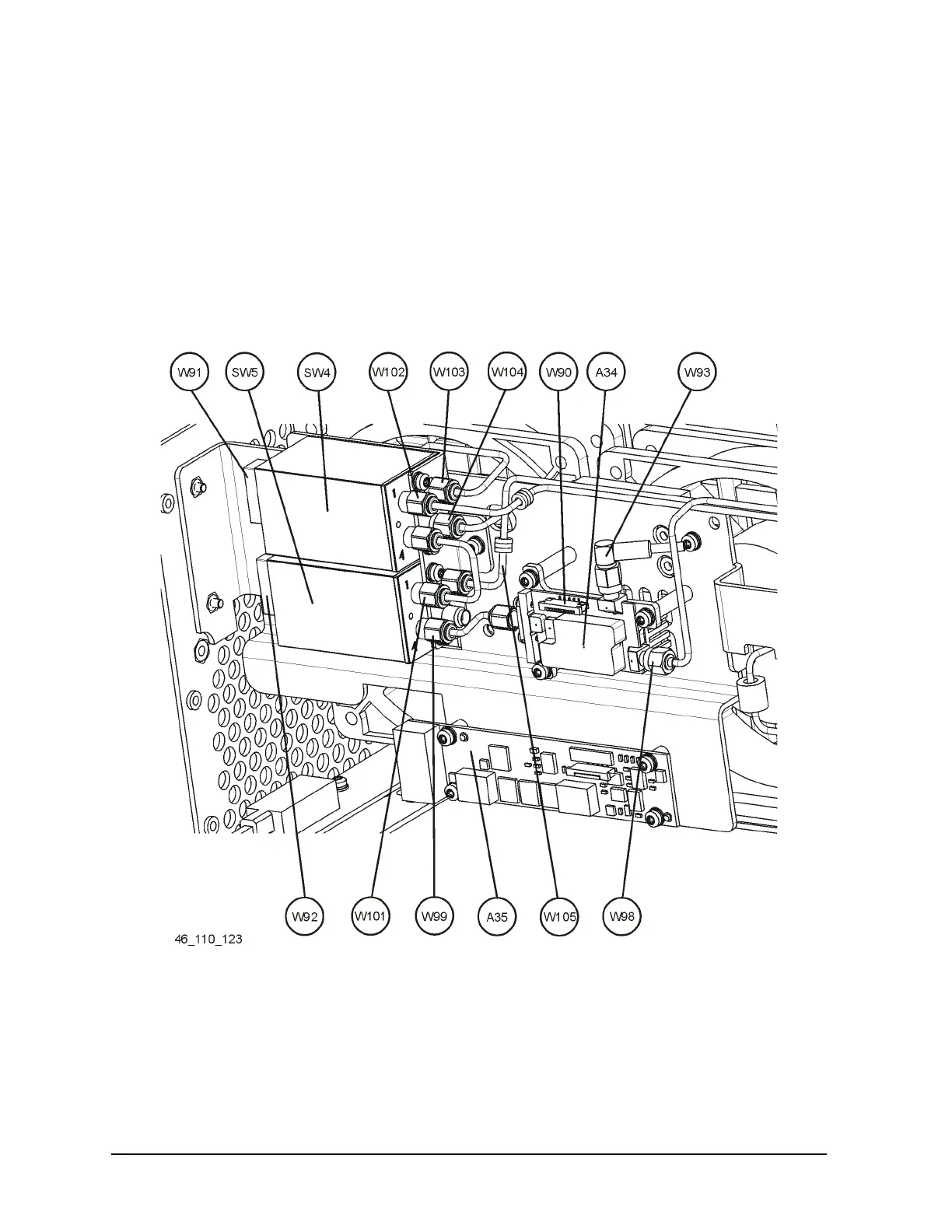

Figure 15 Options 110 and 123
E4446A, E4447A, E4448A
38.Connect Gray Flexible Cable W93 (Coaxial Switch Port 2 to Preselector Bypass
Mixer). Torque to 10 in-lbs.
39.Reconnect cable W104 (Preamplifier Output to Switch SW4 Port 3). Torque to 10
in-lbs.
40.Reconnect cable W103 (A15 Attenuator to Switch SW4 Port 1). Torque to 10 in-lbs.
41.Reconnect cable W102 (Switch SW4 Port 3 to Preamplifier). Torque to 10 in-lbs.
