Installation Note E4440-90613 33
Installation Procedure
22.Locate cable W17 (RYTHM highband output to 3rd Converter J1) and take note of the
cable routing. Refer to Figure 26. Using needle nose pliers, carefully grab the body of
SMB connector and gently rock the SMB connector free of the RYTHM. Discard this
cable.

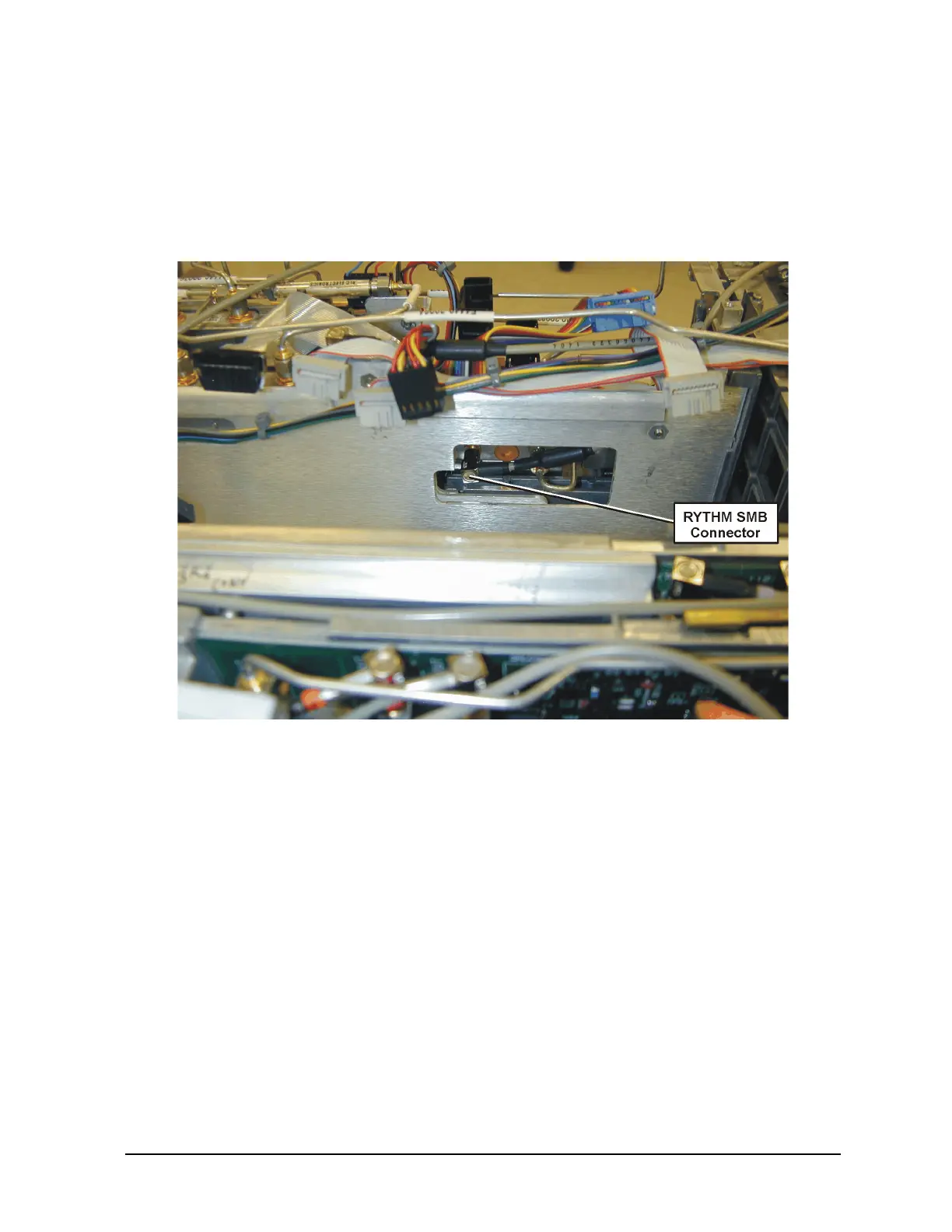

Figure 26 W17 Location
