Installation Note E4440-90613 35
Installation Procedure
26.Refer to Figure 28. Locate and install E4446-20080 semi-rigid cable from the kit. This
cable is reference designator W105 (Switch SW5 Port 2 to W34 on the
RYTHM/SBTX). Torque to 10 in-lbs.

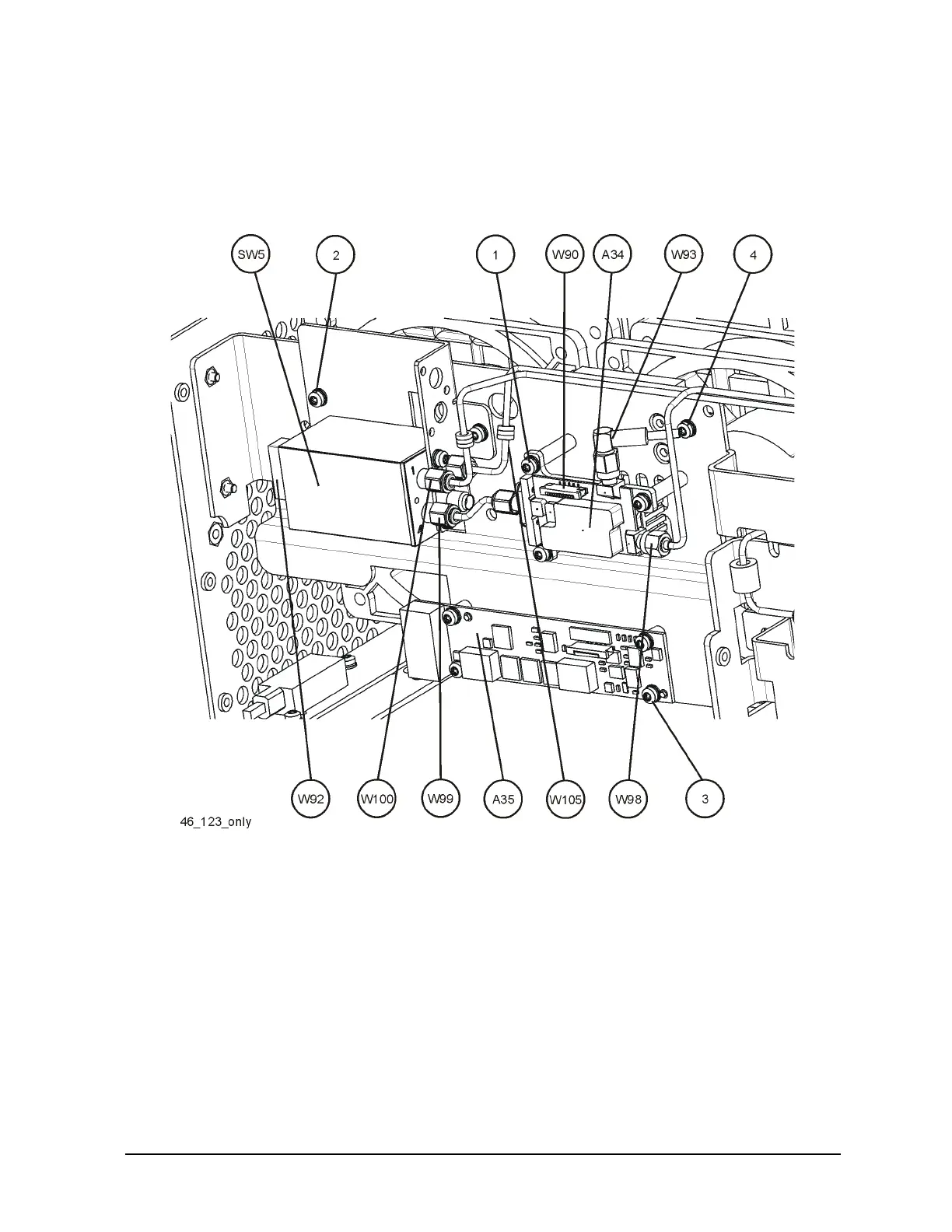

Figure 28 Option 123 Assemblies and Cables
27.Locate and install E4446-20071 semi-rigid cable from the kit. This cable is reference
designator W100 (Attenuator B to Switch SW5 Port 1). Torque to 10 in-lbs.
28.Locate and remove load from FELOMA J6 LO Out.*
29.Locate E4446-20035 semi-rigid cable from the kit. This cable is reference designator
W46. Connect cable W46 to A12 FELOMA J6 LO Out. Torque to 10 in-lbs.*
*Load will already be removed and Cable W46 will already be present if Option AYZ
was previously installed.
