19

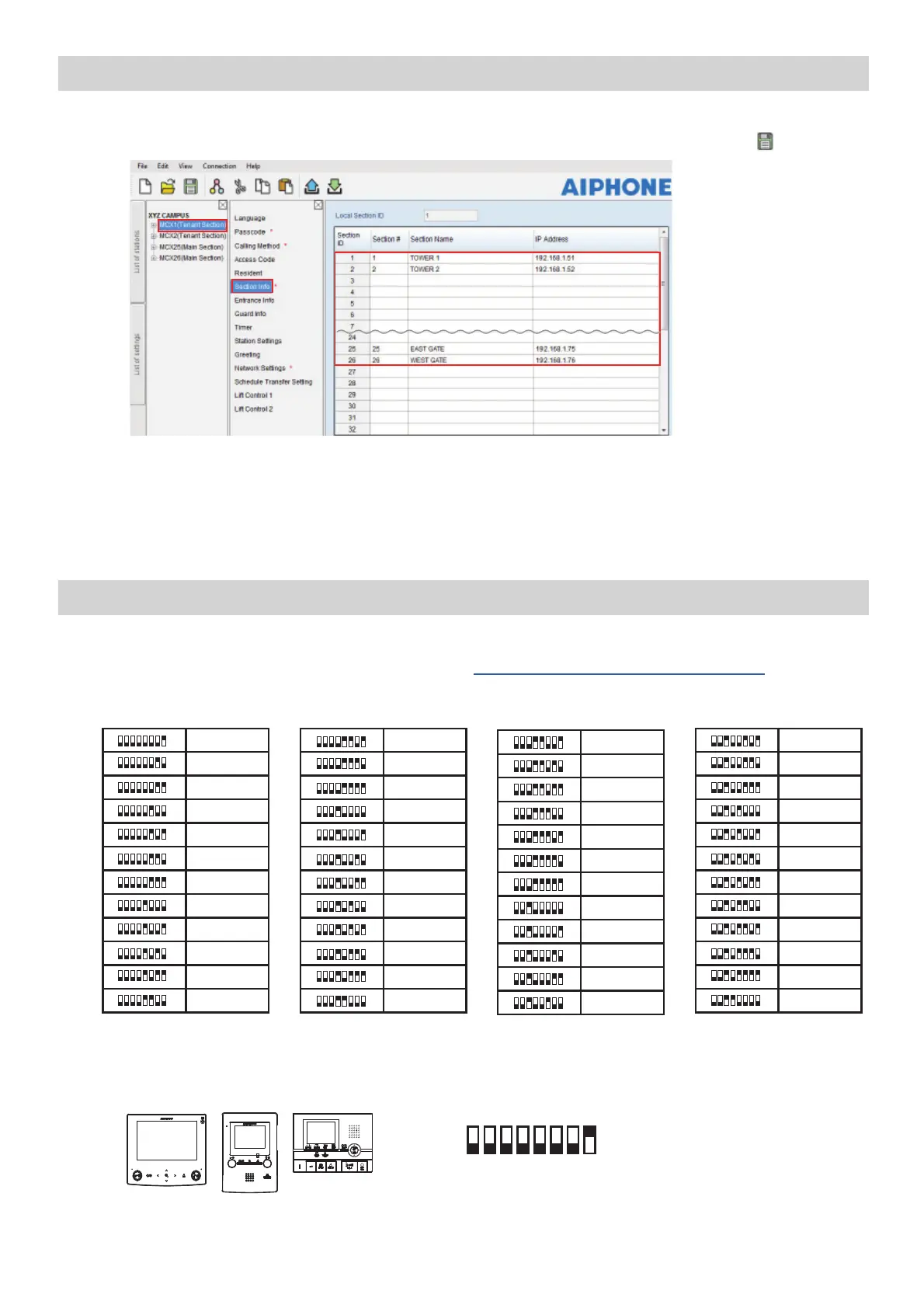

SYSTEM PROGRAMMING WITH MULTIPLE GT-MCX: MULTI-BUILDING (cont.)
Step 5: Select the fi rst MCX in the system, then click Section Info. Enter a Section #, a Section Name, and
IP Address for each GT-MCX in the system based on what was selected in Step 3. Ensure that tenant
sections are entered in lines 1-24 and Main Sections are entered in lines 25-32. Click Save
when done.
Step 6: Repeat step 5 for each MCX in the system. Copy/Paste (Ctrl C, Ctrl V) from the fi rst MCX Section Info to
other sections can be used to save time.
Step 1: Create an ID correlation table for the tenant stations using the binary / SW2 Dip Switch - ID chart.
The chart below is for the fi rst 48 stations in a non-expanded or expanded system.
The full Dip Switch chart can be downloaded from http://www.aiphone.net/product/support/gt/
Standard system = S1 - S48. Expanded system = A1 - A250 & B251 - B500
Step 2:
Set the SW2 dip switches found on the back of the GT-1C7(-L), GT-1M3(-L), and GT-2C(-L) according to the correlation
table created in the previous step.
GT-2C(-L)GT-1M3(-L)GT-1C7(-L)
S1 / A1
S2 / A2
S3 / A3
S4 / A4
S5 / A5
S6 / A6
S7 / A7
S8 / A8
S9 / A9
S10 / A10
S11 /
A11
S12 / A12
Dip Switch ID
S13 / A13
S14 / A14
S15 / A15
S16 / A16
S17 / A17
S18 / A18
S19 / A19
S20 / A20
S21 / A21
S22 / A22
S23 / A23
S24 / A24
Dip Switch ID
S25 / A25
S26 / A26
S27 / A27
S28 / A28
S29 / A29
S30 / A30
S31 / A31
S32 / A32
S33 / A33
S34 / A34
S35 / A35
S36 / A36
Dip Switch ID
S37 / A37
S38 / A38
S39 / A39
S40 / A40
S41 / A41
S42 / A42
S43 / A43
S44 / A44
S45 / A45
S46 / A46
S47 / A47
S48 / A48
Dip Switch ID
On
Off
128 64 32 16 8 4 2 1
SW2
PROGRAMMING: ADDRESSING TENANTS VIA DIP SWITCH METHOD
Note: If programming a multi-building system with more than 500 tenants, ensure that the Calling Method is set to
either Section List + Unit#, Section# + Unit#, or Unit Number in the Main Section.
