Use the dip switch method of programming shown below when installing the GT-1C7(-L), GT-1M3(-L), or GT-2C(-L).
When installing the GT-1A or GT-1D, use the handshake method shown on pages 14-15 after uploading tenant,
entrance, and guard information to the stations. If using a mix of stations that allow for dip switch settings
(GT-1C7(-L), GT-1M3(-L), and GT-2C(-L)) and stations that do not (GT-1A, GT-1D), it is recommended to program all
stations using the handshake method.
Step 1: Create an ID correlation table for the tenant stations using a binary / SW2 Dip Switch - ID chart.
The chart below is for up to 48 stations in a non-expanded system.
The full Dip Switch chart can be downloaded from http://www.aiphone.net/product/support/gt/
Step 2:
Set the SW2 dip switches found on the back of the GT-1C7(-L), GT-1M3(-L), and GT-2C(-L) according to
the correlation table created in the previous step.
Step 3:
Enter the ID from the correlation table in Step 1 into the Unit Link-ID Setting for each station.
Step 4: Click Save , and then
Yes
.

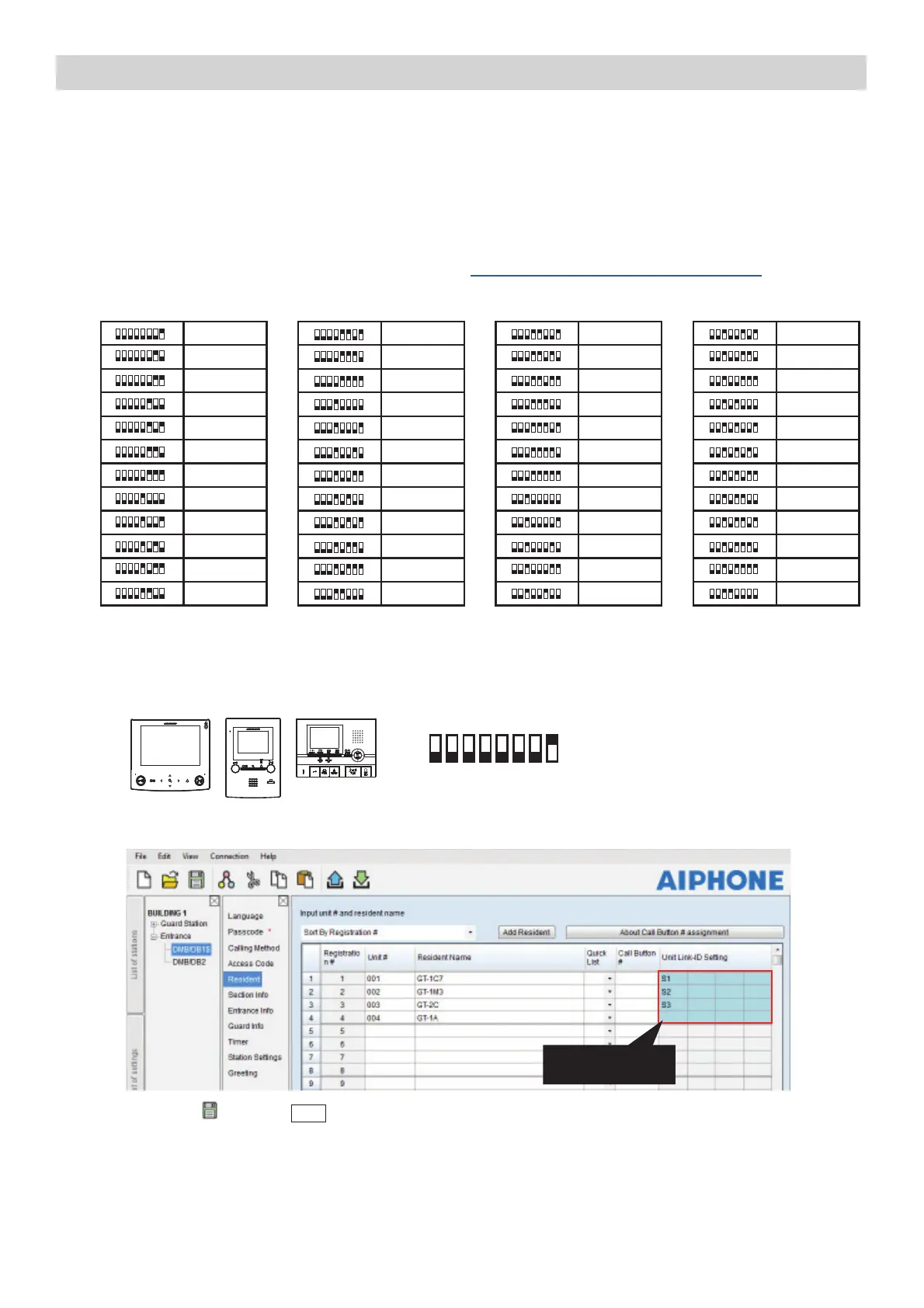

PROGRAMMING: ADDRESSING TENANTS VIA DIP SWITCH METHOD
GT-2C(-L)GT-1M3(-L)GT-1C7(-L)
8 | GT Series Quick Start Guide
S1
S2
S3
S4
S5
S6
S7
S8
S9
S10
S11
S12
Dip Switch ID
S13
S14
S15
S16
S17
S18
S19
S20
S21
S22
S23
S24
Dip Switch ID
S25
S26
S27
S28
S29
S30
S31
S32
S33
S34
S35
S36
Dip Switch ID
S37
S38
S39
S40
S41
S42
S43
S44
S45
S46
S47
S48
Dip Switch ID
On
Off
128 64 32 16 8 4 2 1
SW2
GT-1A or GT-1D: Leave blank.
Program via handshake method.
Pages 14-15.
To Next Page
