Remote Truck: Dashboard View of Encoding and
Decoding Simultaneously

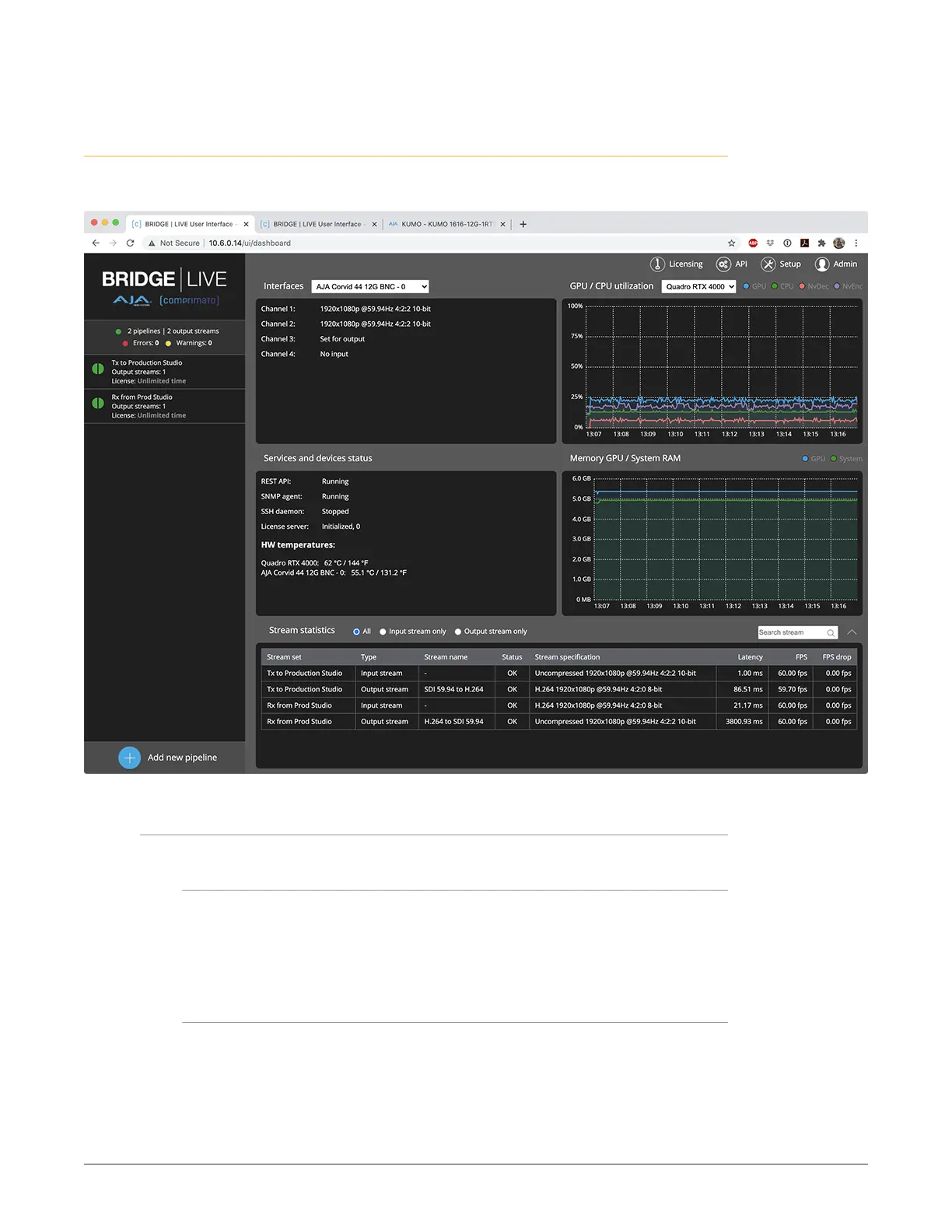

Figure 55. Dashboard View of Remote Truck Encoding and Decoding
Simultaneously
Cabling
Encoding
The Remote Truck BRIDGE LIVE has HD signals connected to SDI Ports 1 and 2,
indicated in Figure 55 above in the Interfaces area. However, in this example, we
will encode only the HD signal coming into Port 1, and transmit the encoded
H.264 signal through Ethernet Card 1.
Decoding
For the decoding Pipeline, the Remote Truck BRIDGE LIVE will receive H.264
through Ethernet Card 2, decode it, then transmit the Uncompressed SDI through
Port 3. Figure 55 above shows that Channel 3 (Port 3) is set for output.
