Production Studio: Dashboard View of Decoding and
Encoding Simultaneously

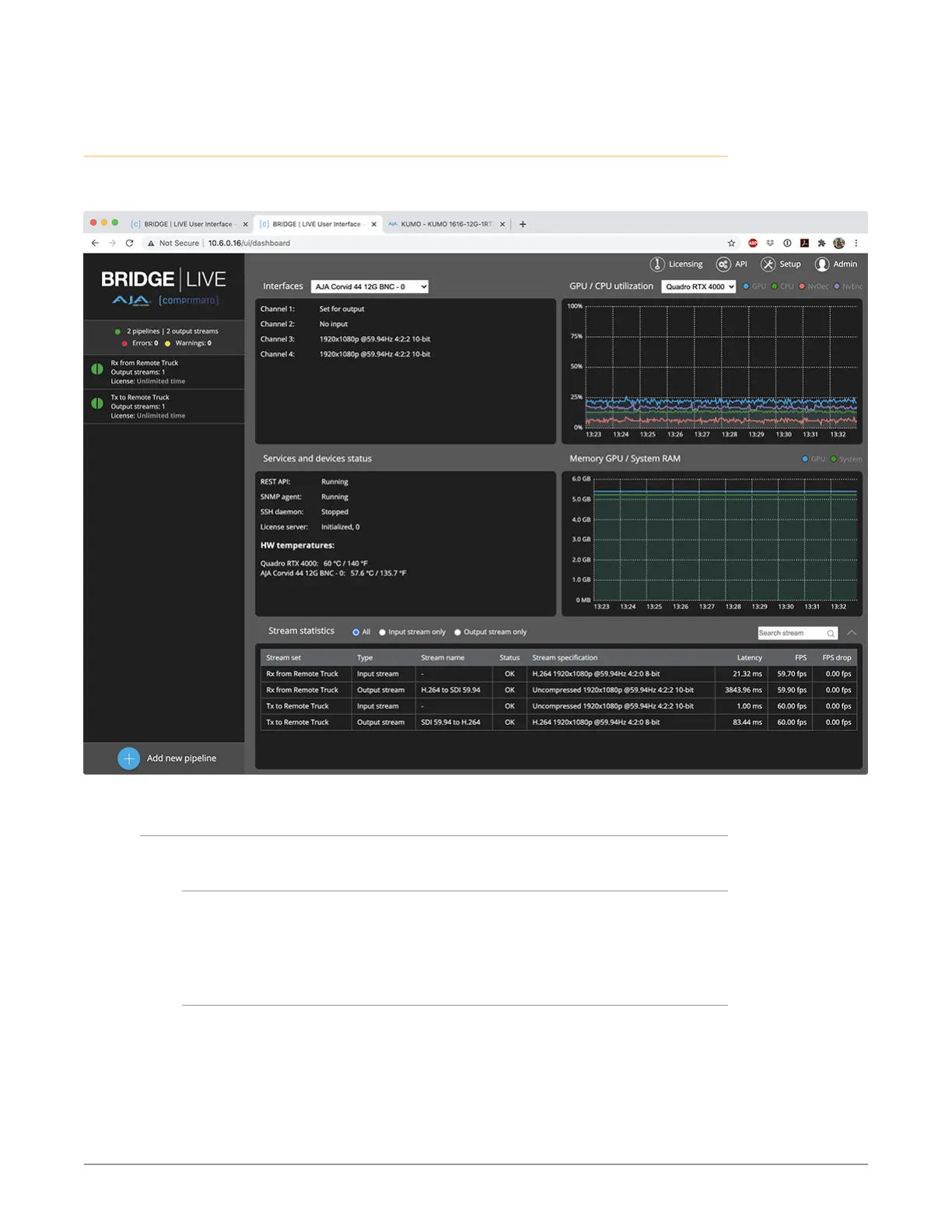

Figure 87. Dashboard View of Production Studio Decoding and Encoding
Simultaneously
Cabling
Decoding
For the decoding Pipeline, the Production Studio BRIDGE LIVE will receive H.264
through Ethernet Card 1, decode it, then transmit the Uncompressed SDI through
Port 1. Figure 87 above shows that Channel 1 (Port 1) is set for output.
Encoding
The Production Studio BRIDGE LIVE has HD signals connected to Ports 3 and 4,
indicated in Figure 87 above in the Interfaces area. However, in this example, we
will encode only the HD signal coming into Port 3, and transmit the encoded
H.264 signal through Ethernet Card 1.
