AJA FS3 - SNMP Interface Monitoring; Optional FS3 Features; Fiber I;O; Technical Description

FS3 Frame Synchronizer/Converter v1.1r1 9 www.aja.com
SNMP Interface Monitoring
SNMP offers remote network monitoring of alarm conditions.
Optional FS3 Features
Fiber I/O
The FS3 supports optional AJA Optical Fiber I/O modules as follows:
• Single Input, LC connector
• Single Input SC connector
• Single Output LC connector
• Single Output SC connector
• Dual Input LC connectors
• Dual Output LC connectors
FS3’s Fiber I/O supports the 3G/HD/SD SDI protocol. Only AJA modules are
supported; use of other manufacturers’ modules is not supported and may void
the warranty.
Technical Description
The FS3 features an incredibly flexible architecture, offering a powerful Video
Processor for video conversion and processing, a separate Audio Processor, and
input and output video and audio signal routing.

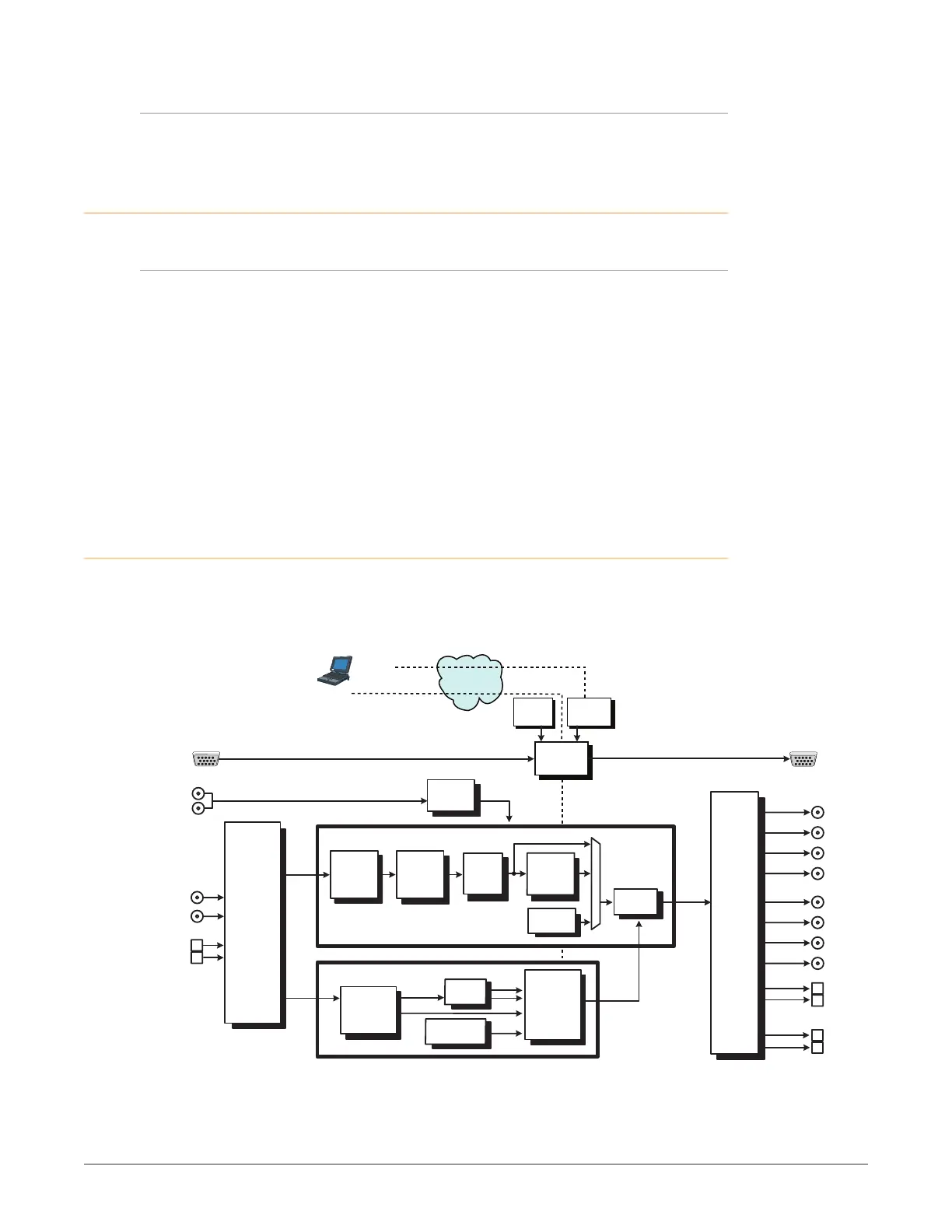

Figure 1. FS3 Simplified Block Diagram
FS3 CPU
Inputs
Passive
Reference
Loops
Embedded
Web Server
Panel
Control
LAN or WAN
Ethernet
GPI Inputs
(4)
Optional
Fiber In 2
Optional
Fiber In 1
SDI In 1
SDI In 2
GPI Outputs
(4)
Optional
Fiber Out
1
Optional
Fiber Out
2
SDI Out 7
SDI Out 8
SDI Out 5
SDI Out 6
SDI Out 4
SDI Out 1
Video
Converter
and
Framesync
4K/UHD
Upconverter
Video Proc
Amp and
Color
Corrector
Remote Web
Browser
Control
SNMP Control
via command line
Genlock
OutputsProcessing
VIDEO PROCESSOR
AUDIO PROCESSOR
Video
Sidebar
Keyer
Audio
Embedder
Video
Output
Drivers
Video
Input
Selector
Video
Audio
(64 Ch)
Video
SDI Out 2
Optional
Fiber Out
3
Optional
Fiber Out
4
Tone
Generator (2)
Audio Level,
Phase, Delay
Adjustment
(64 Ch)
Audio
Router &
Mapper
Test Signal
Generator
Audio
Disembedders
V
ideo with
Embedded A
udio
Mix
Down
L C R
(Ls Rs)
Lr Rr
R
L
SDI Out 3
Audio
(64 Ch)
