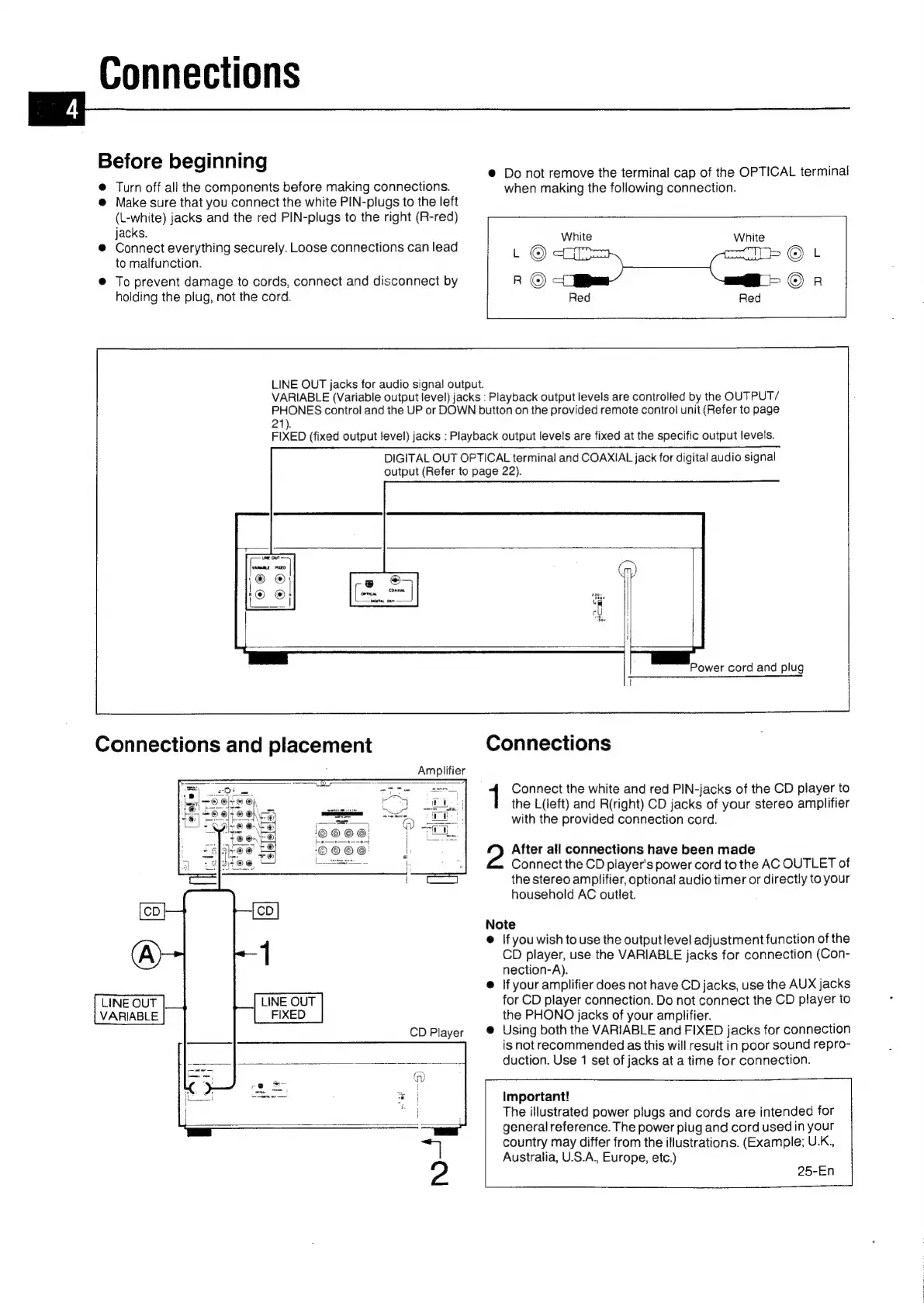

Akai CD-55 - Connections

Connections
Before
beginning
@
Do
not
remove
the
terminal
cap
of
the
OPTICAL
terminal
Turn off all the components before making connections. when making the following connection.
@ Make sure that you connect the white PIN-plugs to the left
(L-white) jacks and the red PIN-plugs to the right (R-red)
jacks.
;
White
White
® Connect everything securely. Loose connections can lead L = ic
to
malfunction.
ee
oe
@
To
prevent
damage
to
cords,
connect
and
disconnect
by
R
©
b>
©
R
holding
the
plug,
not
the
cord.
Red
Red
LINE OUT jacks for audio signal output.
VARIABLE (Variable output level) jacks : Playback output levels are controlled by the OUTPUT/
PHONES control and the UP or DOWN button on the provided remote control unit (Refer to page
21).
FIXED (fixed output level) jacks : Playback output levels are fixed at the specific output levels.
DIGITAL OUT OPTICAL terminal and COAXIAL jack for digital audio signal
output (Refer to page 22).
Power cord and plug
Connections and placement Connections
Connect the white and red PIN-jacks of the CD player to
the L(left) and R(right) CD jacks of your stereo amplifier
with the provided connection cord.
After all connections have been made
Connect the CD player's power cord to the AC OUTLET of
the stereo amplifier, optional audio timer or directly to your
household AC outlet.
Note
@ Ifyou wish to use the output level adjustment function of the
(A) 1 CD player, use the VARIABLE jacks for connection (Con-
nection-A).
@ \f your amplifier does not have CD jacks, use the AUX jacks
for CD player connection. Do not connect the CD player to
VARIABLE FIXED the PHONO jacks of your amplifier.
CD Player @ Using both the VARIABLE and FIXED jacks for connection
is not recommended as this will result in poor sound repro-
duction. Use 1 set of jacks at a time for connection.
Important!
The illustrated power plugs and cords are intended for
general reference. The power plug and cord used in your
country may differ from the illustrations. (Example; U.K,
Australia, U.S.A., Europe, etc.)
25-En
