Section 6: Sampling and editing sounds
141
6.5 The Echo Mixer
This function provides an additional 32 input mono mixer specifically
intended as a send signal to a reverberation device. However, it may be used
as an auxiliary mono mix for any purpose, or as a 9th individual mix output.
To adjust the echo mixer settings, press the SOUNDS key, then type 4 to

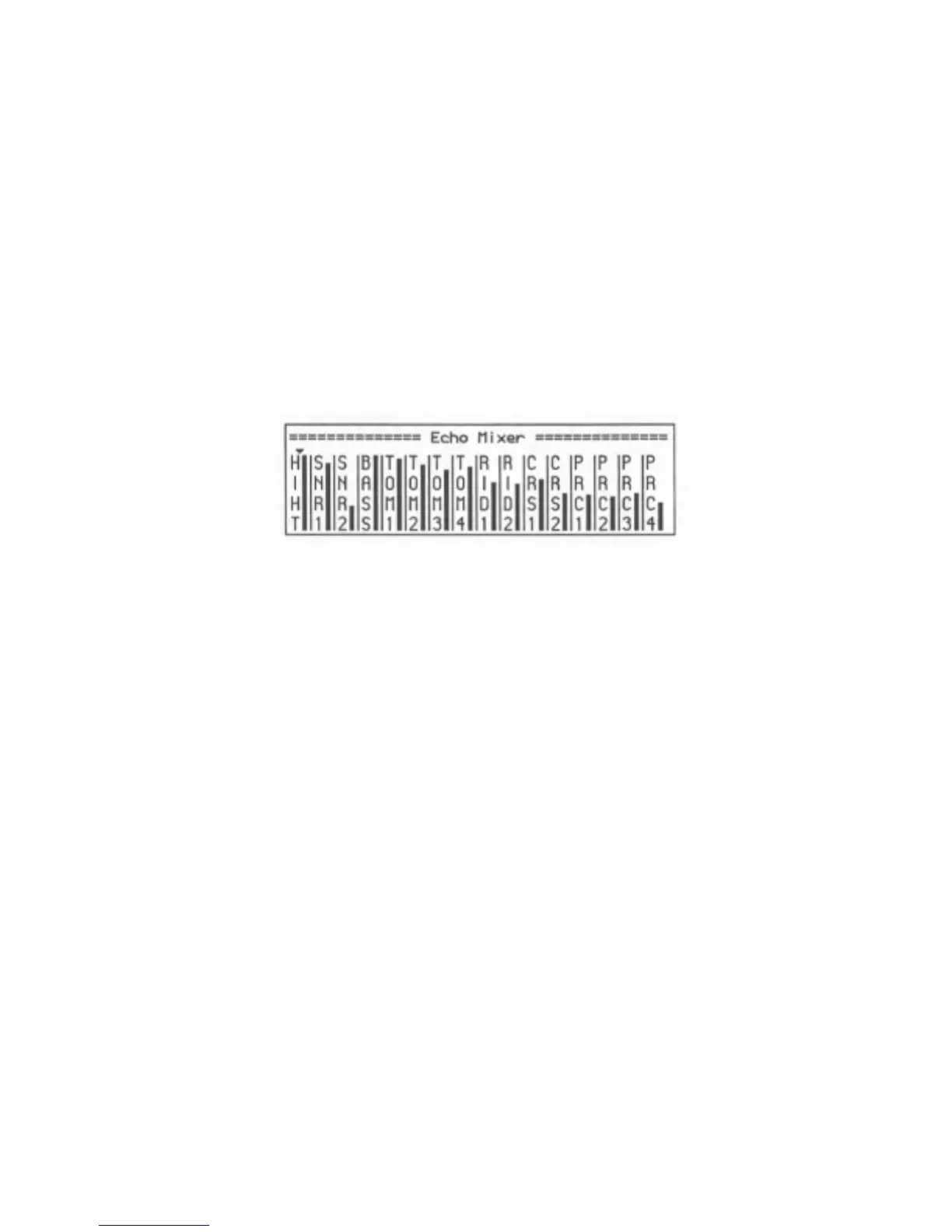

select the ECHO MIXER option, and the following screen will be displayed:
Changing the echo mixer setting is done in the same way as with the main
stereo mixer, except without the pans - press the drum pad and turn the
DATA CONTROL. As with the stereo mixer, if SOFT KEY 1 is pressed,
the mixer changes to a mode in which the settings for all drums are changed
simultaneously. Also, If the BANK 2 light is ON, the second bank of drums
is displayed for adjustment.
The output of this mix appears at the rear panel ECHO MIX OUT jack.
There is a OUTPUT LEVEL control next to the jack to adjust the overall
level to accommodate different echo devices.
There are two echo return jacks (left and right) on the rear panel. These are
intended to be used with the stereo outputs of the echo device. These two
inputs are actually general purpose inputs to the left and right sides of the
main stereo mixer, and therefore could be used to add any two signals to
the stereo mix.
