Akai MPC 60 User Manual

Section 9: Midi functions
199
9.2 The midi input filter, midi soft through,
sustain pedal processing

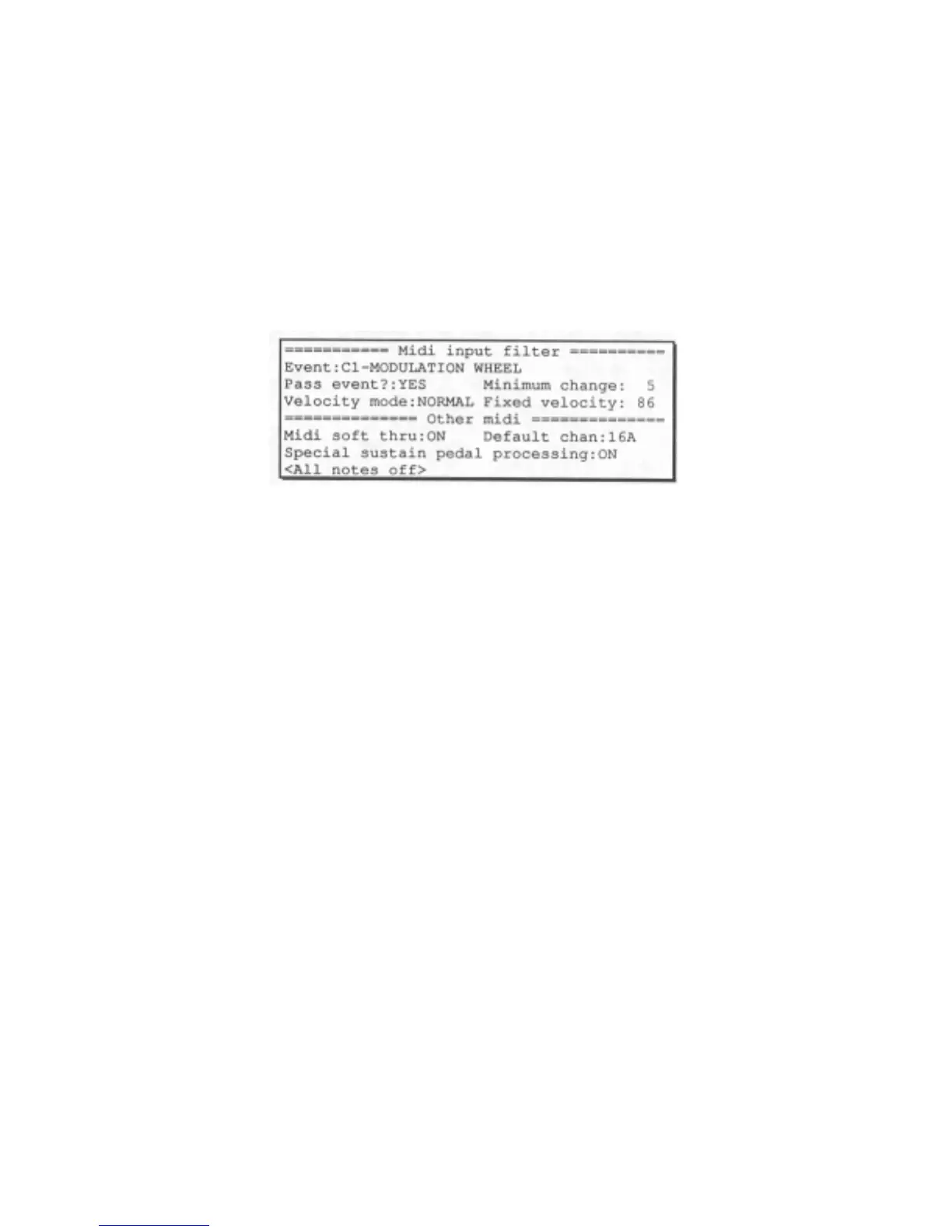

If option 1 is selected from the MIDI screen, the following screen
appears:
This screen has two main sections: MIDI INPUT FILTER and
OTHER MIDI. Each is described in the following sections:
The MIDI INPUT FILTER section:
This portion of the screen allows you to selectively remove parts of the
incoming MIDI data, so as not to take up excess memory recording them,
and to reduce the processing requirements on playback. The fields are:
• The EVENT and PASS EVENT? fields: The EVENT field is a choice
field and may be set to any one of the following event types:
Pitch bend (BEND)
Program change (PRGM CHNG)
Channel pressure (CHAN PRES)
Poly pressure (POLY PRES)
System Exclusive (SYS EXCL)
Drum mixer volume (MIXER VOL)
Drum mixer pan (MIXER PAN)
Drum tuning (DRUM TUNE)
Echo mixer volume (ECHO VOL)
Midi controller 0 (CO-UNDEFINED)
Midi controller 1 (C1-MODULATION WHEEL)
Midi controller 2 (C2-BREATH CONT)
Midi controller 127 (C127-POLY MODE ON)

Akai MPC 60 Specifications

General

Manufacturer	Akai
Model	MPC 60
Release Year	1988
Sampling Rate	40 kHz
Bit Depth	12-bit
Polyphony	16 voices
Memory	750 KB (expandable to 1.5 MB)
Storage	3.5" floppy disk drive
Type	Sampler/Sequencer
Sequencer	Yes
Pads	16 velocity-sensitive pads
MIDI	In/Out/Thru
Maximum Sampling Time	13.1 seconds
Display	LCD
Outputs	8 individual outputs, stereo output
Inputs	2 inputs
