166

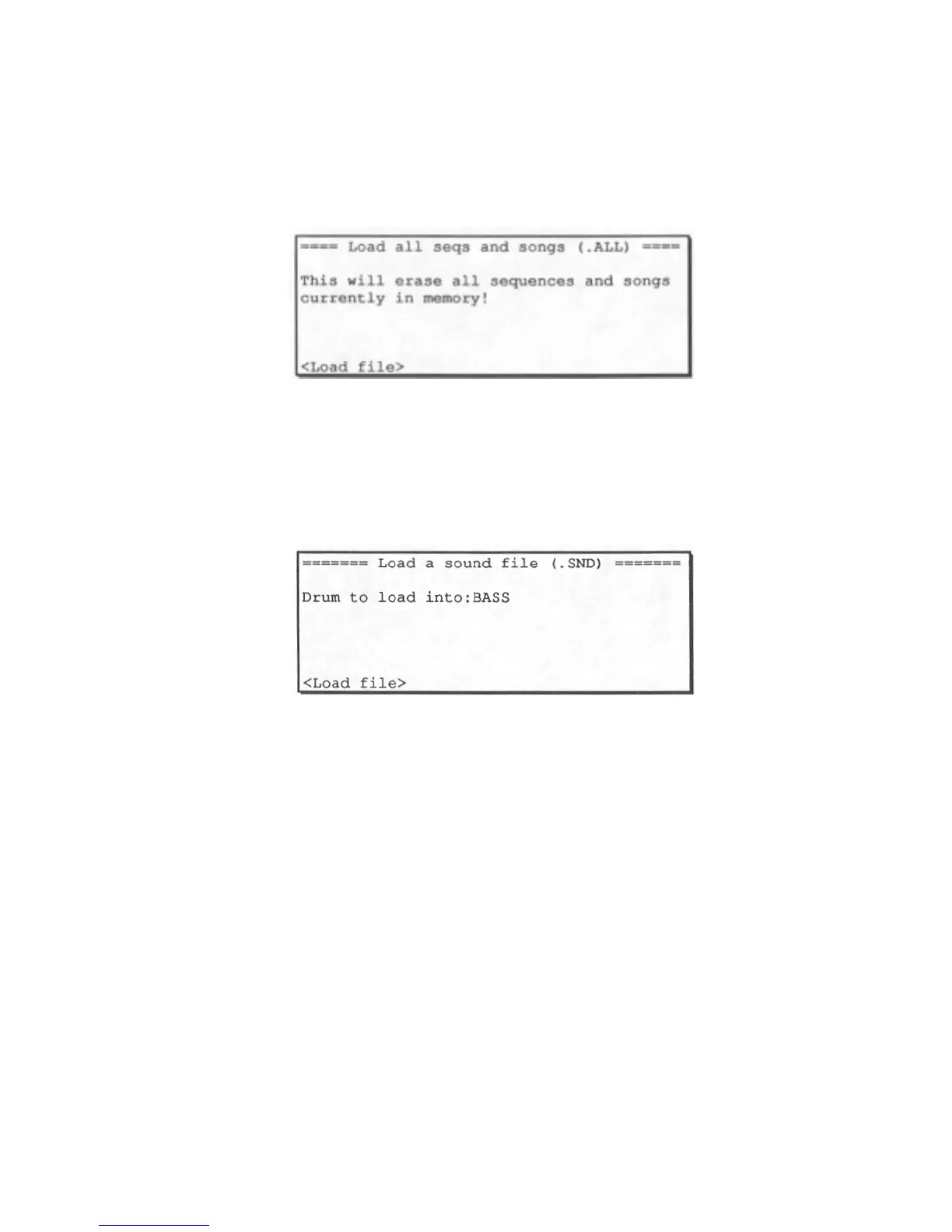

• If an ALL file is selected and <Load it> is pressed, the following screen
will be displayed, warning you that all sequences and songs currently in
memor
y
will be erased:
Press <Load file> to load it. Once finished, the previous screen will be
re-displayed.
• If a SND file is selected and <Load it> is pressed, the following
screen will be displayed, asking you to select the drum to load the
sound into:
Select the drum to be loaded into, then press <Load file>. Once
loaded, the previous screen will be re-displayed.
NOTE: If the sound file you are loading already exists in memory
(assigned to a different drum), the MPC60 recognizes that it is already
in memory and doesn't load it. Instead, it internally assigns the existing
sound to the two drum pads to save memory. This is very useful, for
example, if you want to play a single tomtom sound from four pads at
different pitches, without wasting memory by loading the same tom-tom
sound four times.
• If a SET file is selected and <Load it> is pressed, the following
screen will be displayed, asking you if you want to load the entire file
or onl
y
a sin
g
le sound from it:

Table of Contents

Other manuals for Akai MPC 60

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Akai MPC 60 and is the answer not in the manual?

Akai MPC 60 Specifications

General IconGeneral
ManufacturerAkai
ModelMPC 60
Release Year1988
Sampling Rate40 kHz
Bit Depth12-bit
Polyphony16 voices
Memory750 KB (expandable to 1.5 MB)
Storage3.5" floppy disk drive
TypeSampler/Sequencer
SequencerYes
Pads16 velocity-sensitive pads
MIDIIn/Out/Thru
Maximum Sampling Time13.1 seconds
DisplayLCD
Outputs8 individual outputs, stereo output
Inputs2 inputs
