Begin System Installation
4200–045
26
6/5/2017

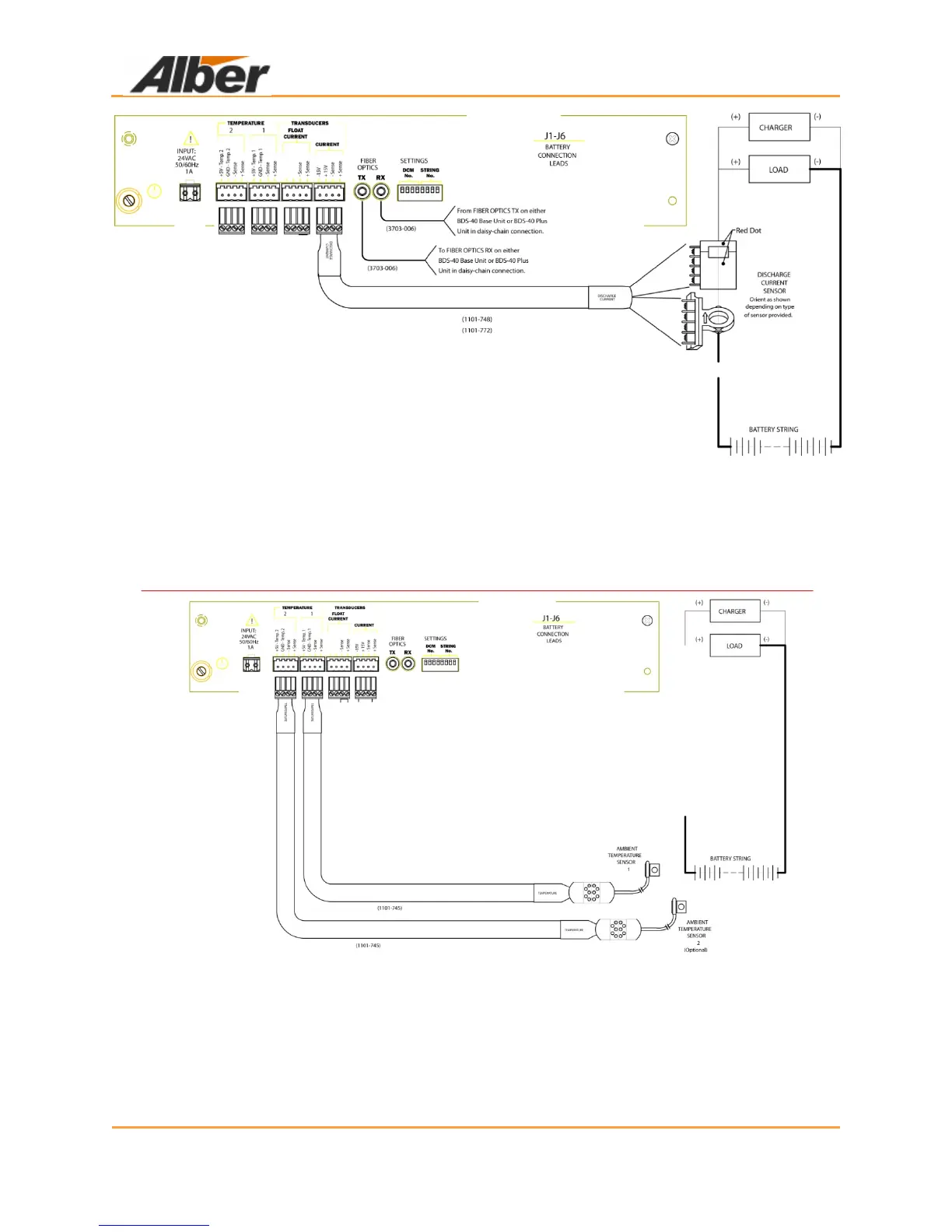

Figure 32. Snapshot CT BDS–1189–B985
7.2.6 Temperature Sensor (Optional)
Two types of temperature probes are available for the BDS. One probe hangs free for ambient
temperature measurement or mounts on a cell post surface. The other, a Teflon coated probe,
may be immersed in a flooded cell. Refer to BDS–1189–B985.
Figure 33. Temperature Sensor Connections Snapshot BDS–1189–B985
Using 4–conductor shielded cable, wire these sensors to the rear connectors marked
Temperature 1 or Temperature 2. The user may use two temperature probes per battery string.
If using only one probe, connect it to Temperature 1.
