Begin System Installation
4200–045
27
6/5/2017
7.2.7 Float Current Sensor (Optional)
There is one float current sensor channel available. Connect to the rear panel Float Current
connector.
Please refer to BDS–1189–B985 for FCCP assembly for termination details and to section 6.3
of Multitel’s Float Charging Current Probe Installation Manual, displayed here for convenience.

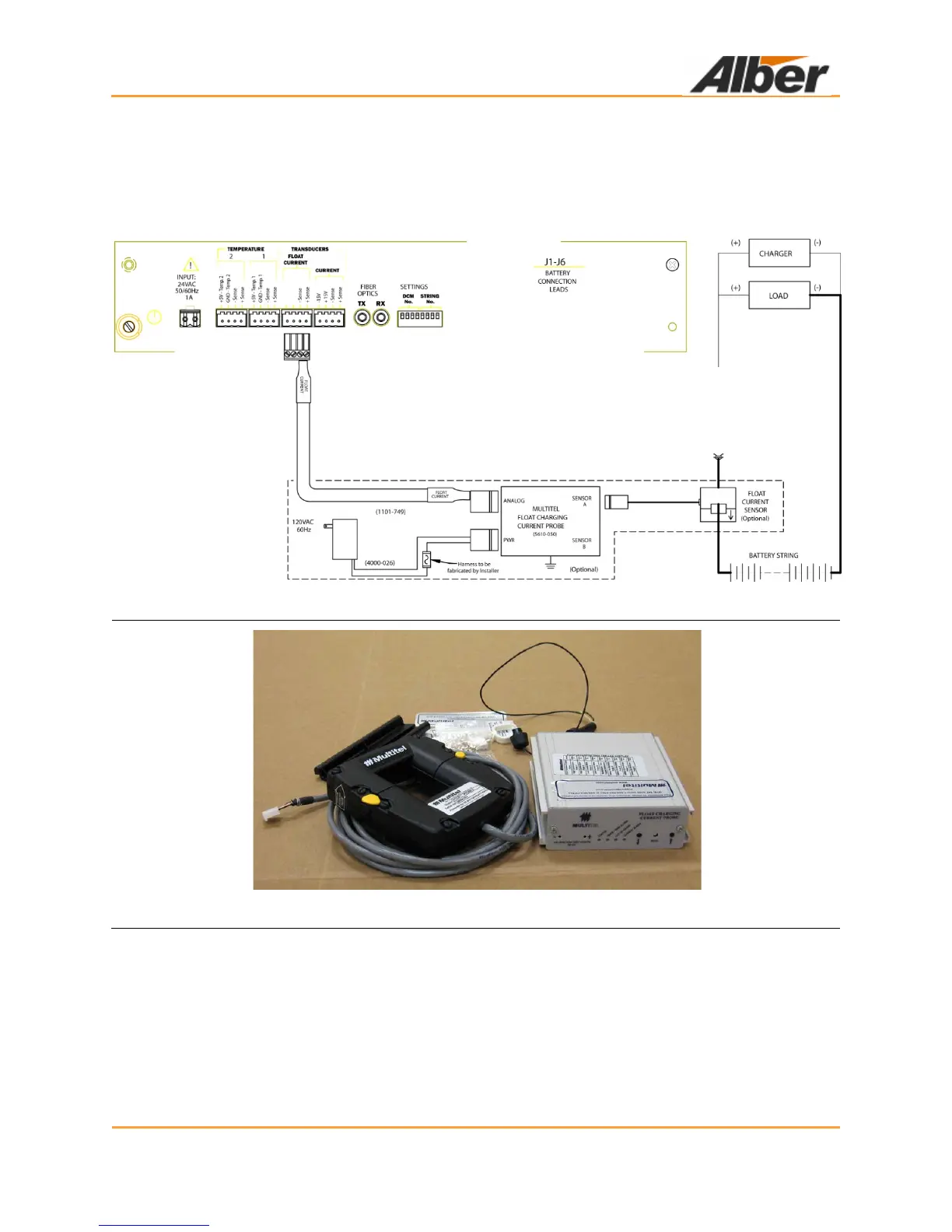

Figure 34. FCCP Snapshot Of BDS–1189–B985
Figure 35. Multitel FCCP pn 5610–051 Part Of KIT–1101–749
