Alcatel-Lucent 8001 - Phone Installation

Alcatel-Lucent 8001 DeskPhone
ALE International proprietary and confidential. Copyright © 2016. All rights reserved.
Page 5 of 49
 1* Phone Bracket
 1* Safety sheet
b) Phone Installation:
This section introduces how to install the phone with the components available in
the pack:
 Attach the Bracket
 Connect the Handset and optional Headset
 Connect the Network and Power
Attach the Bracket

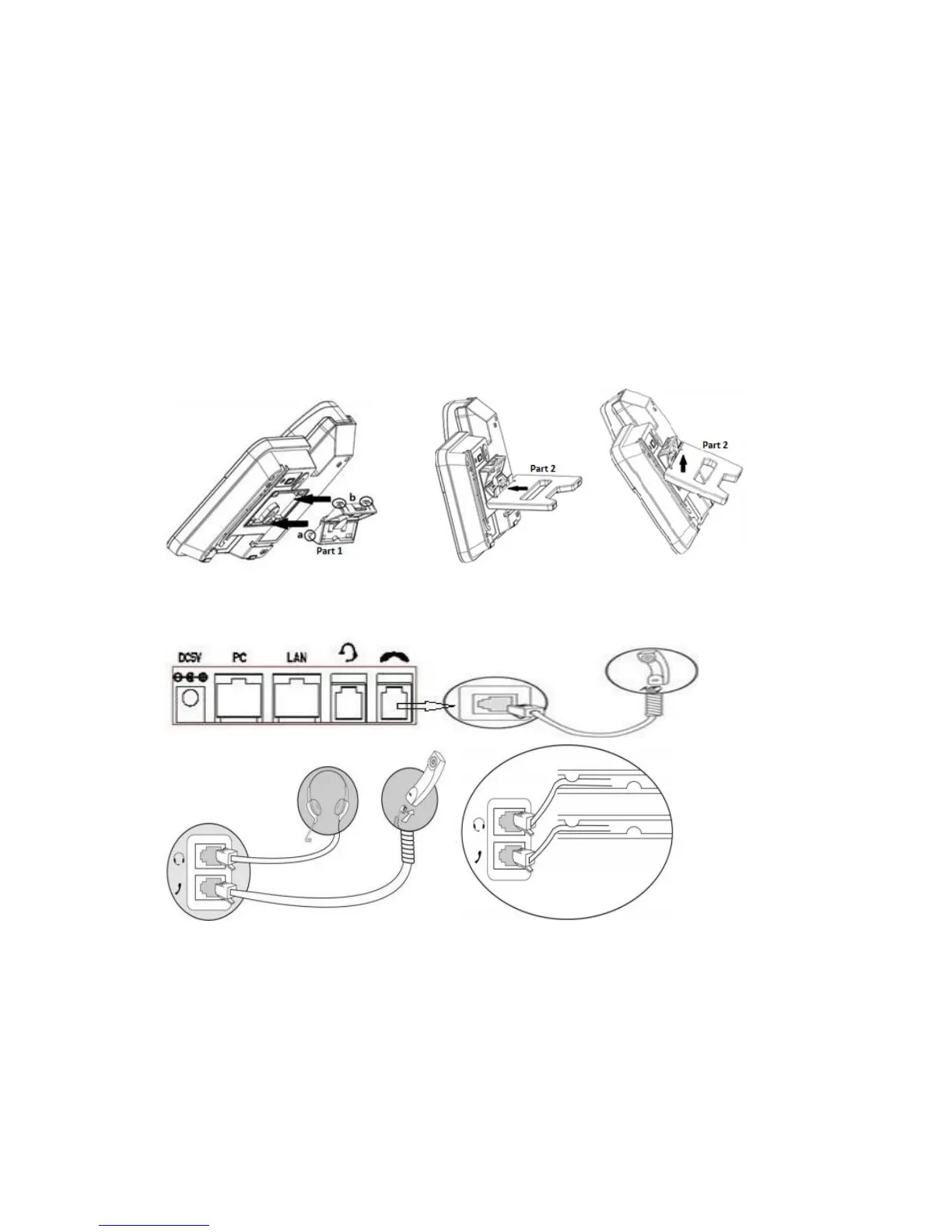

Please firstly let the part 1 of the bracket join the phone by following steps "a" to "b" as shown
here-after, and then let the part 2 of the bracket join the lower holder or upper holder
depending on the desired phone angle: respectively high or low.
Connect the Handset and optional Headset
Connect the Network and Power
You have two options for power supply. Your system administrator will advise you which one
to use.
 AC power adapter
 PoE(Power over Ethernet) IEEE802.3af
