OmniSwitch 6250 Series Hardware Users Guide September 2009 page 2-9
Preliminary
9/28/09

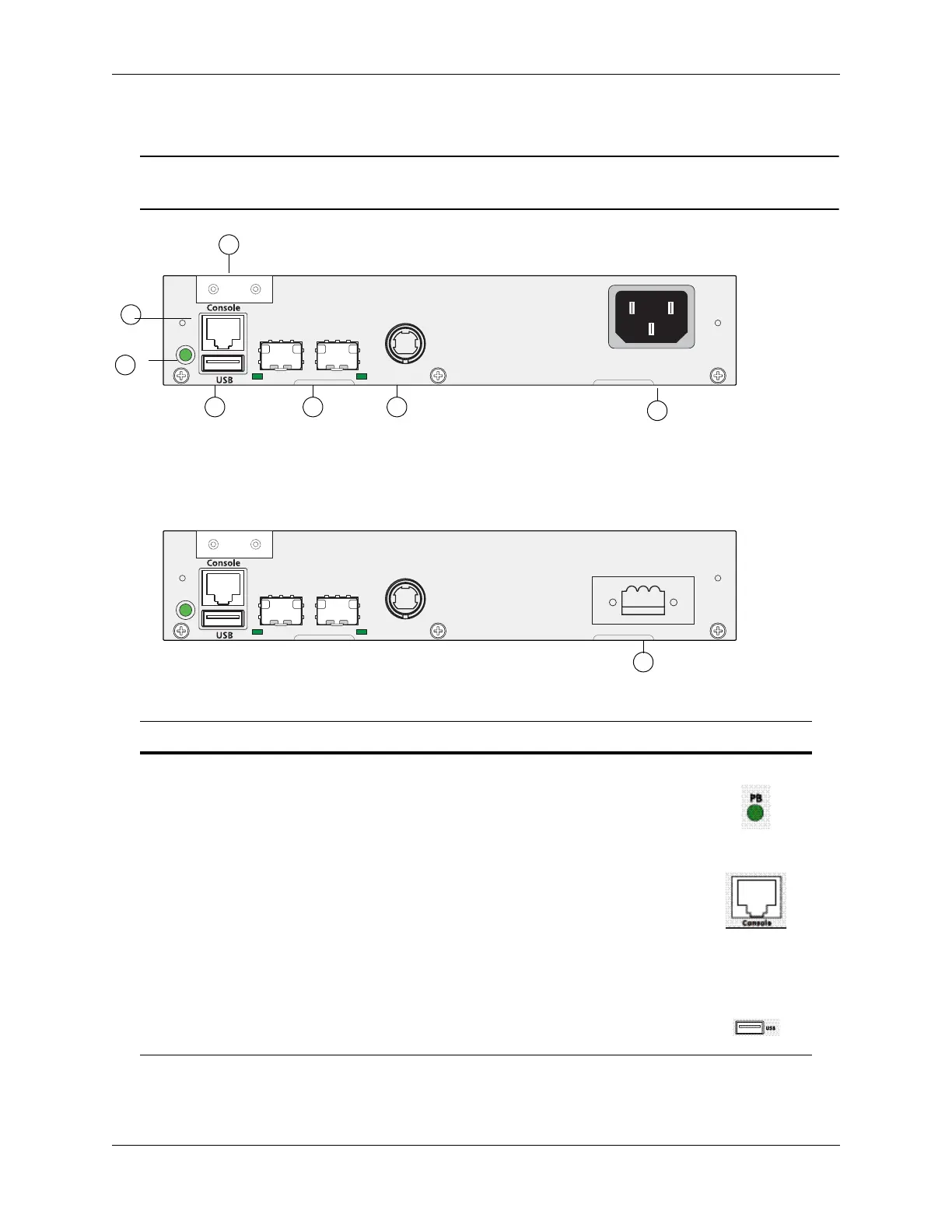

OmniSwitch 6250-24M/24-MD Rear Panel
Note. The figure shows a pre-production version of the chassis without product, safety, and compliance
information labels. All production versions of the chassis have these labels.
OS6250-24M Rear Panel
OS6250-24MD Rear Panel
Item Description
A
Push Button
When pushed all LEDs will turn off and the LED of the Stack ID
will remain lit.
B
Console Port
RS-232 console port with an RJ-45 connector. Provides access to
the CLI for configuration and management.
C
Grounding Block
Type LCD8-10A-L grounding lug
D
USB Port
High speed USB 2.0 port.
A
B
C
E FD
G
H
