OmniSwitch 6450 Chassis and Hardware Components Installing Expansion Modules
OmniSwitch 6450 Hardware Users Guide September 2015 page 3-37
Installing Expansion Modules
The expansion module slot is located at the right-hand side of the chassis rear panel. Refer to the rear
panel diagrams in the sections above for additional information.

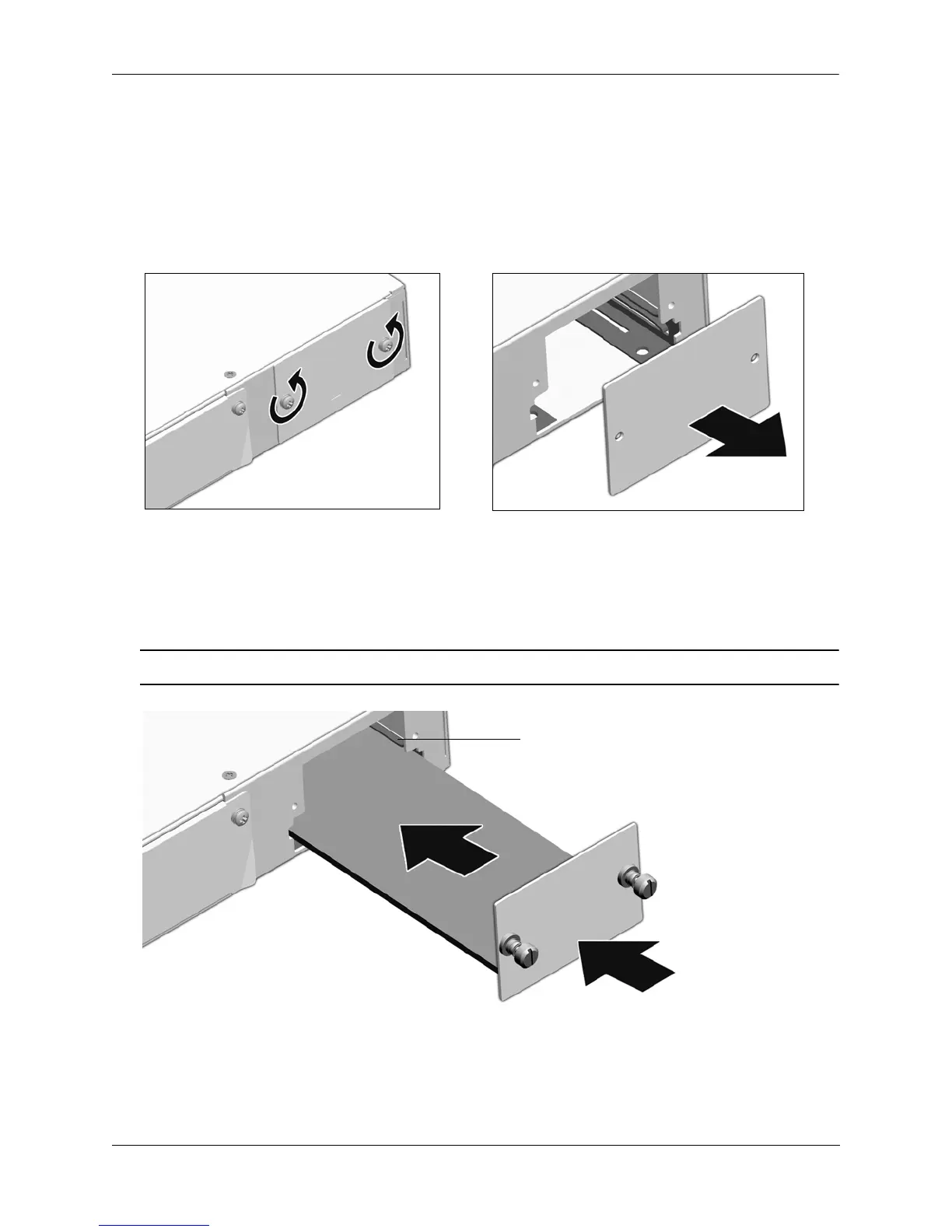

1 If a blank cover plate is in place over the expansion module slot, remove the cover plate by loosening
the two screws at the left and right sides of the cover plate. Store the cover plate for future use.
2 Insert the module circuit board into the grooves at the left side of the expansion module slot. This
groove will ensure that the expansion module and backplane connectors are properly aligned.
3 Once the module circuit board is inserted in the grooves, slide the module back until the backplane
connectors are fully seated and the module front plate is flush with the front panel of the chassis.
Note. Do not force the module into the slot.
