Pin Signal Description
1
2 TX Data transmission
3 RX Data reception
4
5 GND Protective ground
6
7 RTS Transmission request
8 CTS Ready for transmission
9
4.11 AP Interface Module
4.11.1 Hardware description
4.11.1.1 Overview
The AP Interface Module (Analog Peripheral) allows an analog device such as fax, modem, minitel,
answering machine to be connected to the OXO Connect via a UA link.
AP Interface Module
Digital Link
Digital Link
PCX
UAI Board
(or MIX Board)
Digital Set
to Mains
Fax

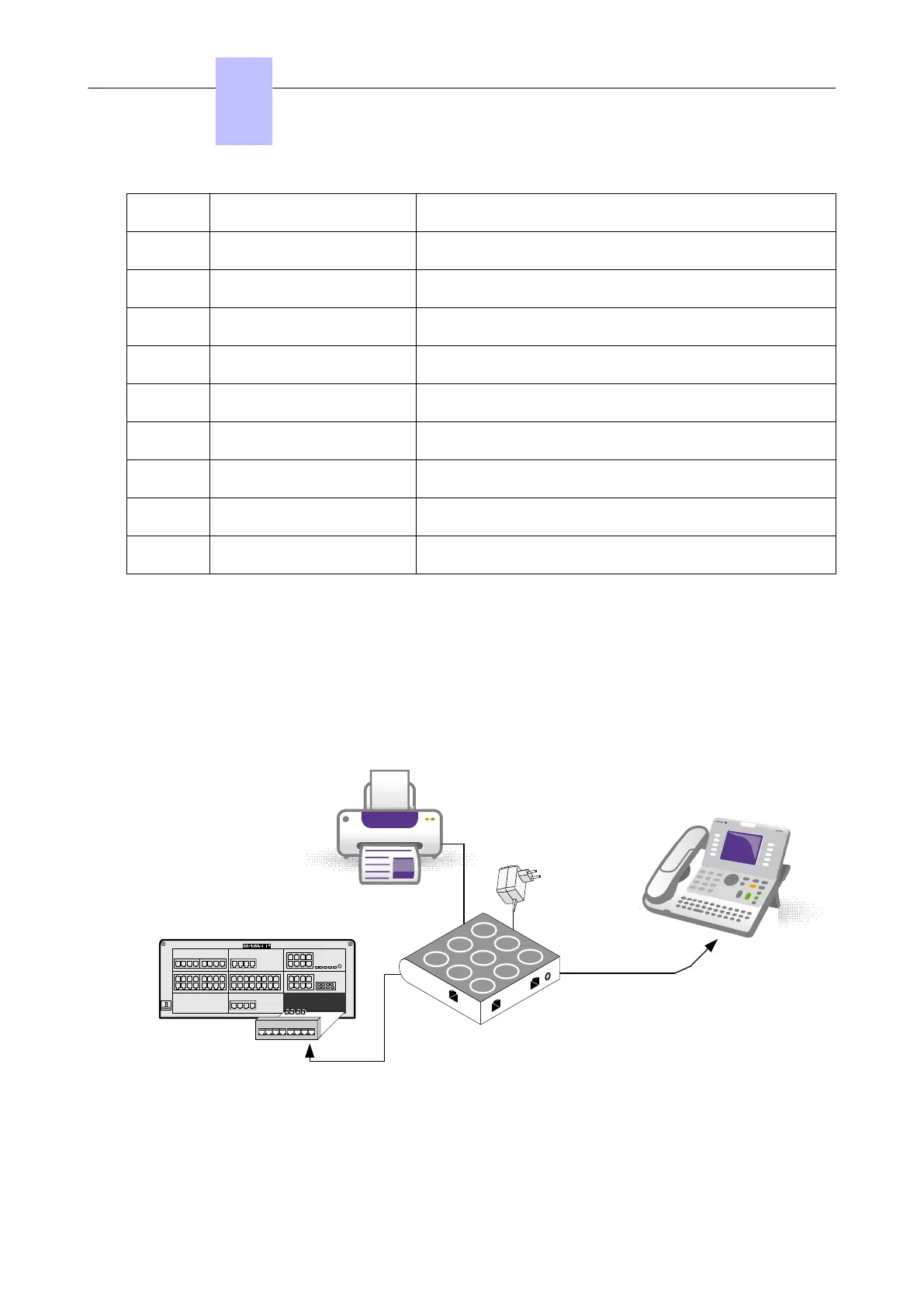

Figure 4.14: Example of Configuration with an AP Interface Module
AP Interface Module can be used alone or combined with Digital Premium DeskPhones.
AP Interface Module powers the analog device (DTMF signalling, ringer) and, to do this, requires an
external power supply (230V AC/30V AC adapter). In this document, this set is called Z set.
Chapter
4
Installation and Cabling
3EH21123USAA - Ed. 01 - April 2017 - Installation Manual 112/207
