Chapter
4
Installation and Cabling
4.1 Presentation
4.1.1 Location of Unit
The OXO Connect unit can be installed in three ways:
1. Fixed to the wall:
• A kit is available for wall-mounting OXO Connect S and OXO Connect M platforms.
• A wall support (US version) is available for wall-mounting OXO Connect Compact platform which
can also be fixed directly to the wall. In both cases, use the hole drilling template supplied with
the platform.
2. Mounted in a rack: the OXO Connect Small, Medium, Large platforms are mounted in the rack using
the fixing brackets supplied by the rack manufacturer, or using the optional 19" mounting kit (a kit is
available for each platform type).
3. Placed on a table: no more than three units can be laid on top of each other.

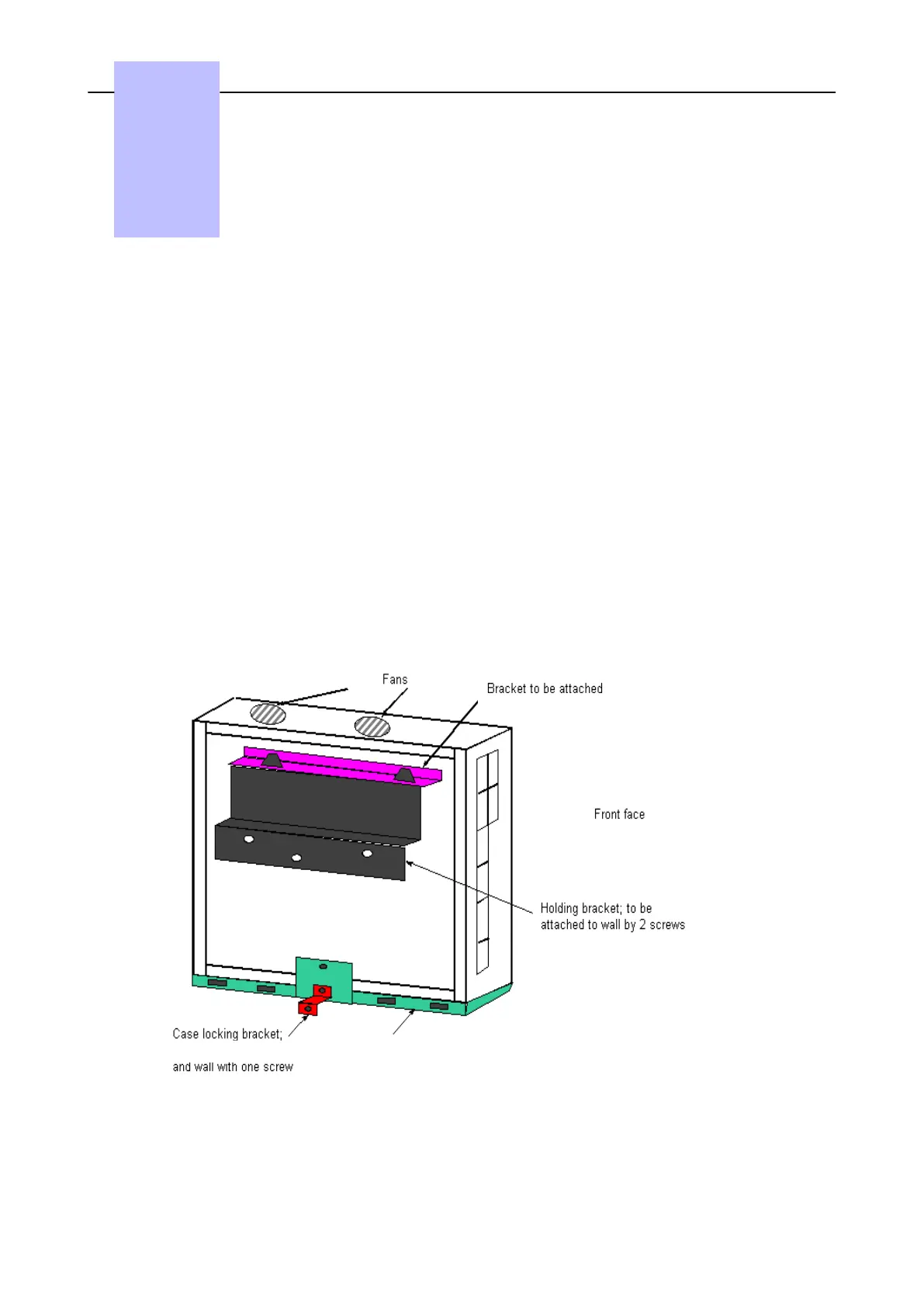

4.1.1.1 Wall Mounting (OXO Connect S and OXO Connect M platforms)
The enclosure comprises 4 parts.
After mounting, the space between the platform and the wall can be used for cables.
to platform (2 screws)
of platform
Special part (A) depending on platform;
to be attached to platform by 2 screws
to be attached to platform
3EH21123USAA - Ed. 01 - April 2017 - Installation Manual 45/207
