Alcatel-Lucent OXO Connect Large User Manual

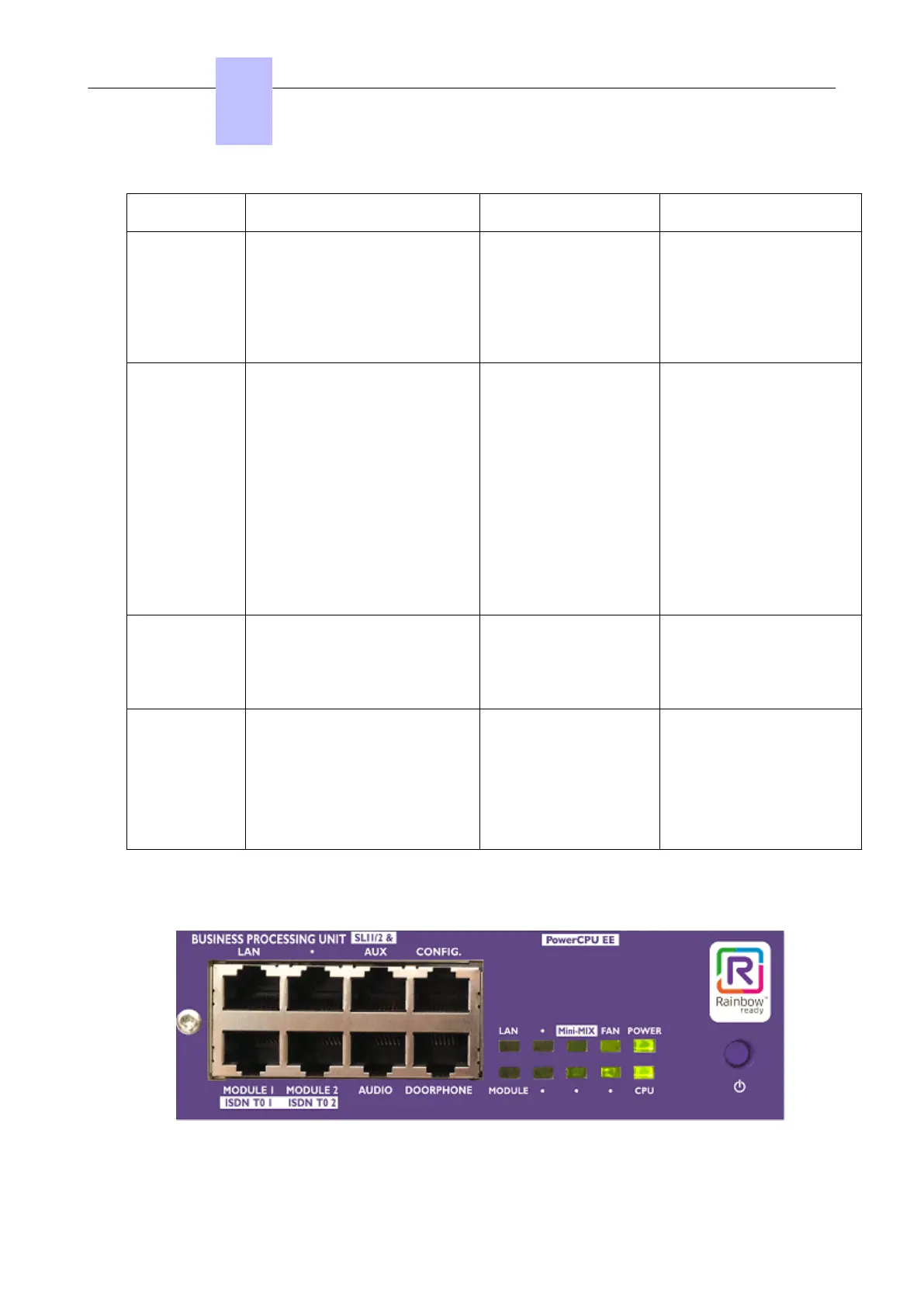

Board Function Optional boards Connections
AMIX484-1
AMIX448–1
AMIX444–1
4 analog line accesses, 4 or 8
UA interfaces and 4 or 8 Z inter-
faces
GSCLI: Ground Start
signaling
CLIDSP: local CLIP
management
METCLI
PSTN network, analog Z
terminals and Alcatel-Lu-
cent 9 series
PRA-T2
PRA-T1
DLT2
T1-CSS
PCM R2
PRA -T2, DLT2: 30 x 64-Kpbs
B-channels + 1 x 64-Kbps D-
channel; 2048 Kbps.
PRA-T1: 23 x 64-Kbps B-chan-
nels + 1 x 64-Kbps D-channel;
1544 Kbps
23 x 64-Kbps B-channels + 1 x
64-Kbps D-channel
PCM R2: 30 x 64 Kbps B-chan-
nels +1 x 4 Kbps signaling chan-
nel; 2048 Kbps.
PRA-T2: ISDN network
DLT2: Private QSIG net-
work
PRA-T1: Hong-Kong ISDN
network
PCM R2: Public network
SLI4-2
SLI8-2
SLI16-2
4, 8 or 16 Z interfaces Analog Z terminals
UAI4
UAI8
UAI16
UAI16-1
4, 8 or 16 UA interfaces
UAI16-1 board: possibility of
powering terminals connected to
the 16 interfaces remotely from
an external EPS48 power sup-
ply
Alcatel-Lucent 9 series
4070 IO/EO DECT base
stations
EPS48 only on interface 1
of the UAI16-1 board
2.4.2 Detailed description
2.4.2.1 Processing Unit PowerCPU EE Board
The PowerCPU EE board performs the CPU functions of an OXO Connect system.
