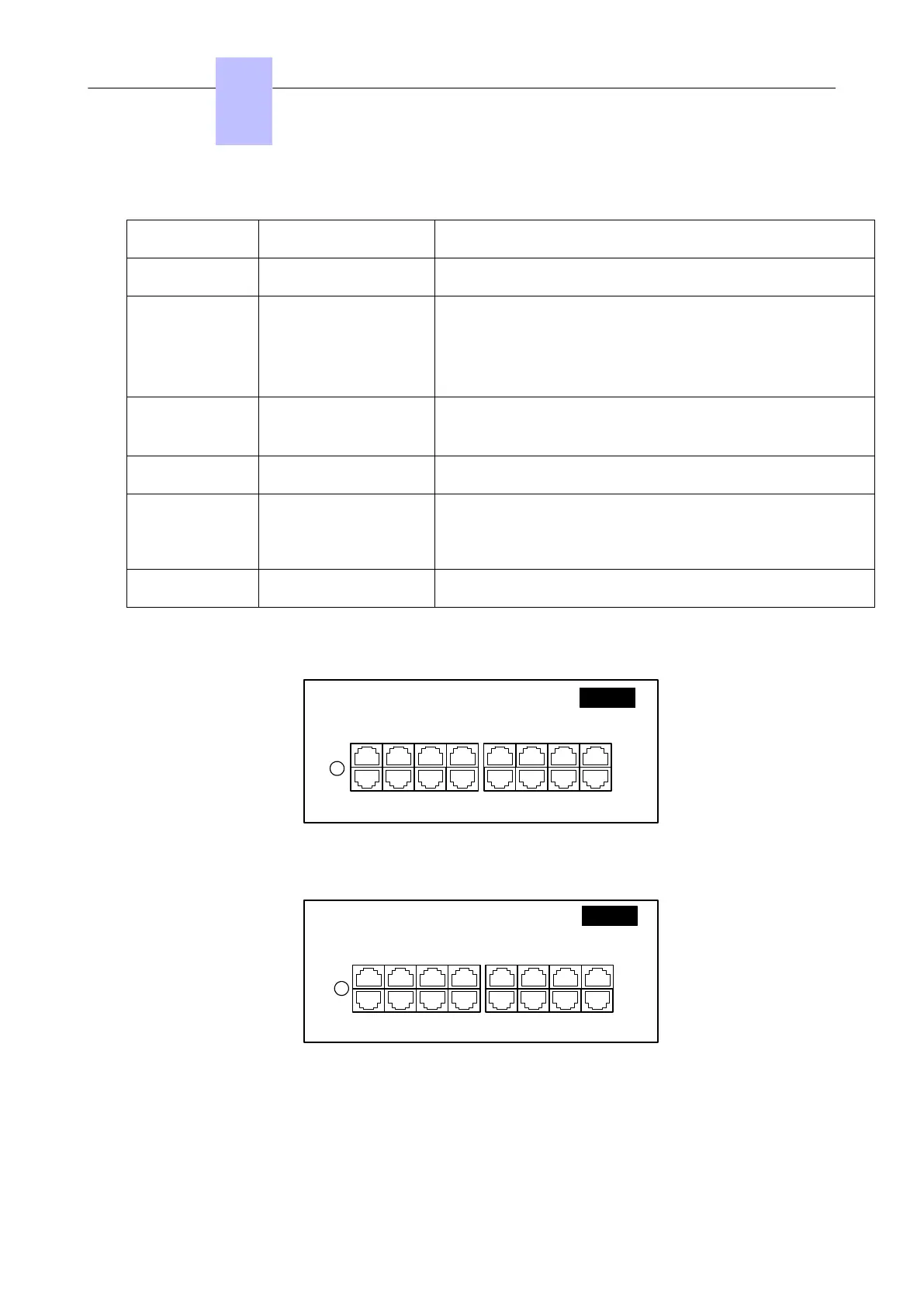

2.4.2.1.1 Function of the LEDs
Name Color Function
CPU Green CPU functioning LED (flashing)
POWER Red/Green • Mains operation: steady green LED
• Battery operation: steady yellow LED
• Idle: flashing red LED
• System shut down: steady red LED
FAN Red/Green • Both fans functioning: steady green LED
• 1 or both fans down: steady red LED
LAN Green LAN functioning LED (flashes when there is traffic)
Mini-MIX Green (only on OXO
Connect Compact plat-
form)
Green only when accepted by the license 2B channels for
MIX-2 boards. Detection of Mini-MIX board in OXO Connect
Compact platform.
MODULE Green Presence of HSL board
2.4.2.2 SLI-X Boards
Board allowing the connection of 4, 8 or 16 analog terminals.
9
10
11
12
13
14
15
16
1
2
3
4
5
6
7
8
ANALOG INTERFACES SLI16-2
2.4.2.3 UAI-X Boards
Board used for connecting up digital terminals or DECT 4070 IO/EO base stations.
1
2 3 4 5 6 7 8
DIGITAL INTERFACES UAI16
9 10 11 12 13 14 15 16
The UAI16-1 board is used to power terminals connected to the 16 interfaces remotely from an EPS48
external power supply connected to interface 1 via an external adapter cable (splitter).
Caution:
Only use EPS48 power supplies and the splitters provided.
Chapter
2
Hardware: Platform and Interfaces
3EH21123USAA - Ed. 01 - April 2017 - Installation Manual 26/207
