T2 UTP, FTP or STP, Category 3 or 5 120 Ohms
T1 UTP, FTP or STP, Category 3 or 5 120 Ohms
Ethernet FTP or STP, Category 5 100 Ohms
HSL STP supplied with the product, Category 5 100 Ohms
• UTP: Unshielded Twisted Pairs
• FTP: Foiled Twisted Pairs
• STP: Shielded Twisted Pairs

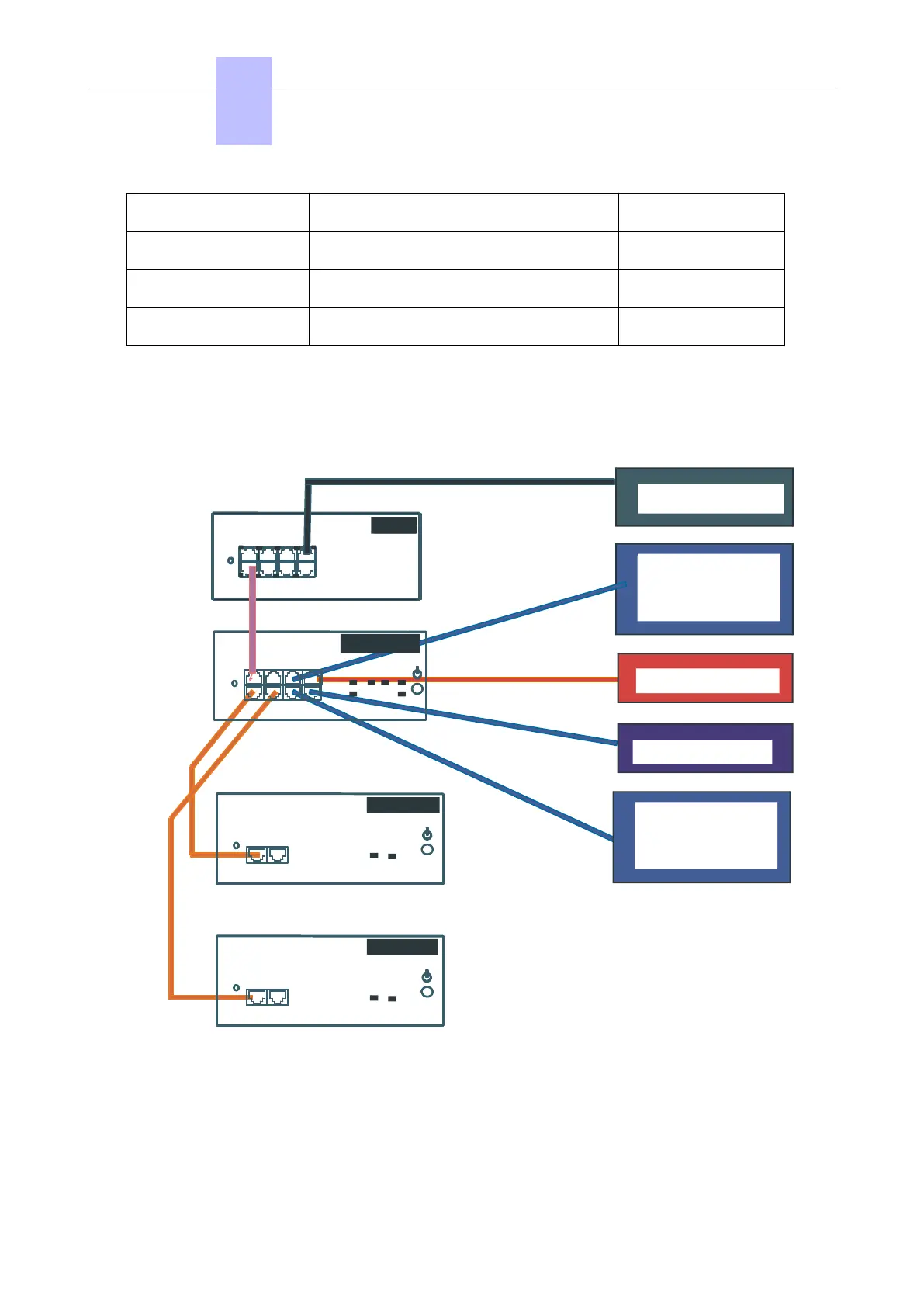

4.2.3 Connection of PowerCPU EE Board
PROCESSING UNIT
Power CPU EE
Power MEX
Power MEX
ETHERNET LANSWITCH
LanX8-2
12V serviceable voltage
External LAN Switch
PC (OMC, NMC)
Doorphone
Power MEX board (extension unit) 1
Power MEX board (extension unit 2)
Power CPU board
LanX-2 board
MODULE EXPANSION
MODULE EXPANSION
General bell
Background music
Loudspeaker
Alarm
"Please wait" message
4.2.4 Connecting Terminals
4.2.4.1 Connection of Digital Terminals
The terminals are equipped with a cable and a self-acting switch that plugs into the wall socket. Each
terminal is connected up by a pair of 0.5 or 0.6 mm diameter wires.
System - digital terminal distances:
• 0.5 mm SYT type cable: 800 m (station without option) or 600 m (station with S0 or Z option).
Chapter
4
Installation and Cabling
3EH21123USAA - Ed. 01 - April 2017 - Installation Manual 50/207
