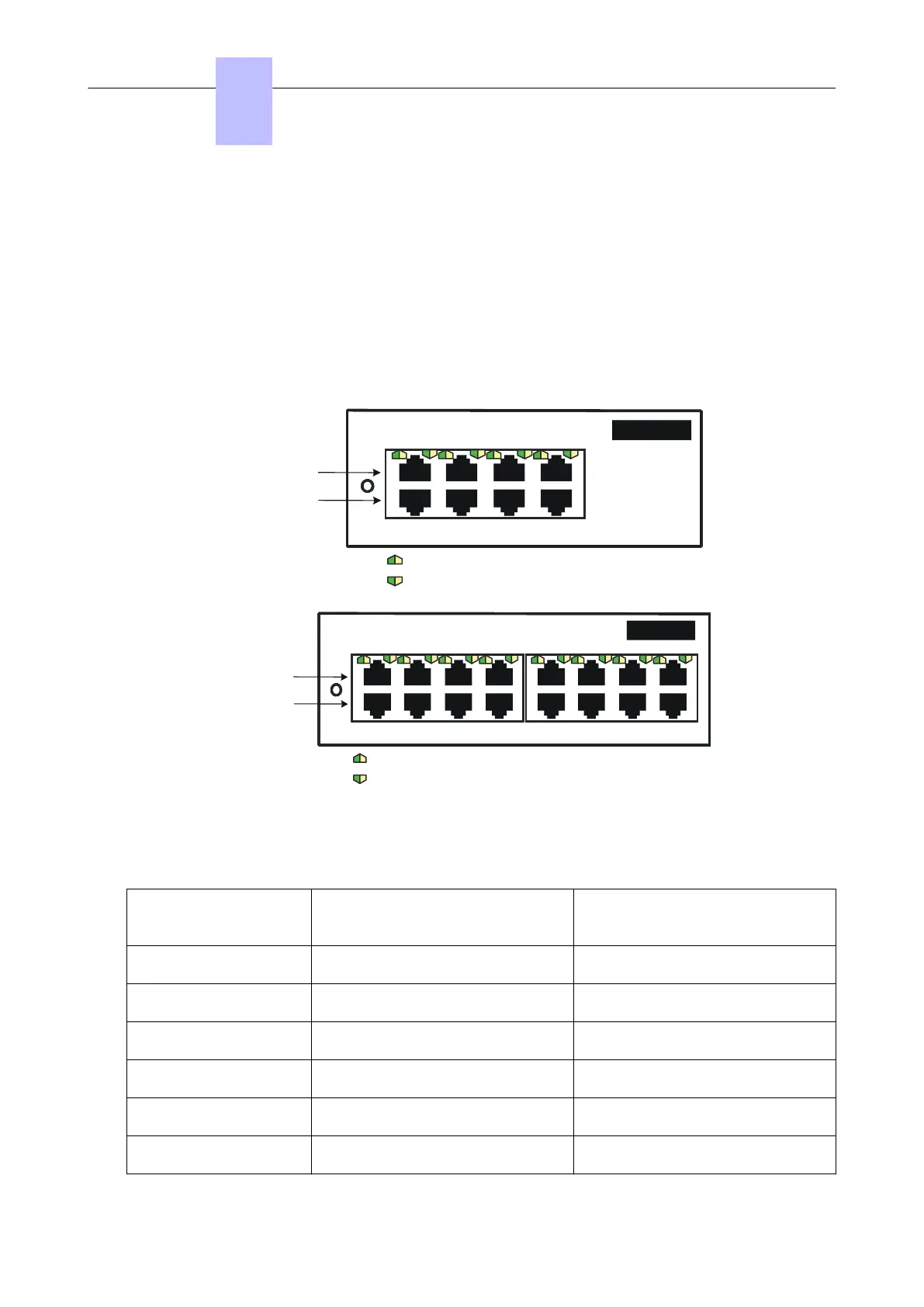

Unlike the 1st generation boards, the LEDs of the A and B ports are both located at the top of the
board. The Led display is as follows:
• Green LED (left) = link status and activity:
• off: link disconnected
• on: link connected
• blinking: link active
• yellow LED (right) = speed:
• off: low speed (10 or 100 Mb for Gigabit port, 10 Mb for the other ports)
• on: high speed (1 Gb for Gigabit port, 100 Mb for the other ports)
ETHERNET LANSWITCH
7 5 3 1
LanX8-2
B
A
GE1 246
manages ports 7, 5, 3 and 1
manages ports GE1, 6, 4 and 2
Ports
ETHERNET LANSWITCH
B
A
manages ports 7, 5, 3, 1, 14, 12, 10 and 8
manages ports GE1, 6, 4, 2, GE2, 13, 11 and 9
7 5 3 1
GE1 246
14 10 8
GE2 911
LanX16-2
12
13
Ports
2.4.2.10 Daughter Board Provision on PowerCPU EE Board
The table below presents the daughter boards which can be provided on the PowerCPU EE board,
according to the platform used.
Daughter Boards OXO Connect Compact OXO Connect Small, Medium,
Large
ARMADA VoIP32 Yes Yes
ARMADA VoIP64 Yes Yes
HSL1 No Yes
HSL2 No Yes
AFU-1 Yes Yes
Mini-Mix Yes No
Chapter
2
Hardware: Platform and Interfaces
3EH21123USAA - Ed. 01 - April 2017 - Installation Manual 29/207
